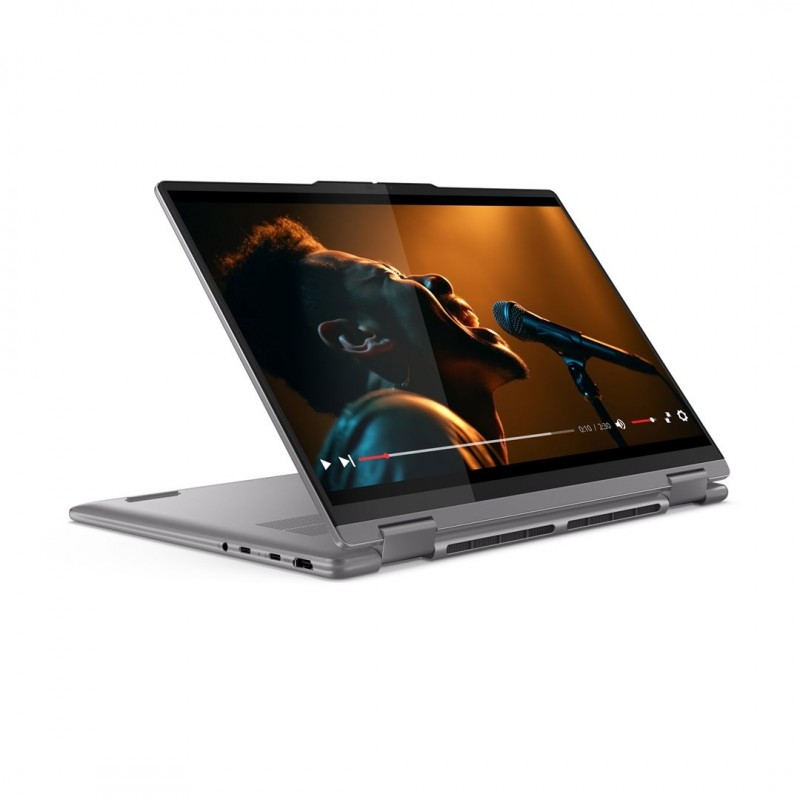

Lenovo Yoga 7 2-in-1 14AHP9 Ryzen 5 8640HS 14" WUXGA OLED 400nits Glossy 60Hz 16GB LPDDR5x-6400 SSD1TB Radeon 760M

Data sheet

Height

16.6 mm

Width

317.7 mm

Depth

222.1 mm

Weight

1.61 kg

battery capacity

71 Wh

Bluetooth

Yes

Bluetooth version

5.3

fingerprint reader

No

Product Type

Hybrid (2-in-1)

touchscreen

Yes

SSD Capacity

1 TB

Panel type

OLED

Display surface

Gloss

Storage temperature (T-T)

5 - 43 °C

Built-in microphone

Yes

Accelerometer

Yes

Operating temperature (T-T)

5 - 35 °C

Housing material

Aluminium

Internal memory

16 GB

Battery life (max)

12.5 h

Display diagonal

35.6 cm (14")

Battery technology

Lithium Polymer (LiPo)

Compatible memory cards

MicroSD (TransFlash)

Processor model

8640HS

Wi-Fi standards

Wi-Fi 6E (802.11ax)

Processor family

AMD Ryzen™ 5

Processor frequency

3.5 GHz

Operating system installed

Windows 11 Home

Front camera

Yes

Internal memory type

LPDDR5x-SDRAM

Processor cores

6

HD type

WUXGA

HDMI ports quantity

1

Storage media

SSD

Processor boost frequency

4.9 GHz

Total storage capacity

1 TB

Keyboard backlit

Yes

Optical drive type

No

LED backlight

Yes

Card reader integrated

Yes

Operating system architecture

64-bit

Memory clock speed

6400 MHz

Maximum refresh rate

60 Hz

Maximum internal memory

16 GB

Operating relative humidity (H-H)

8 - 95%

Audio system

Dolby Atmos

Ethernet LAN

No

Storage relative humidity (H-H)

5 - 95%

Display brightness

400 cd/m²

Native aspect ratio

16:10

Certification

ErP Lot 6
ErP Lot 26
MIL-STD-810H
TÜV Rheinland® Low Blue Light (Software Solution)

HDMI version

2.1

Product colour

Grey

Processor manufacturer

AMD

Processor cache type

L3

Processor cache

16 MB

Discrete graphics card

No

On-board graphics card

Yes

On-board graphics card model

AMD Radeon 760M

On-board graphics card family

AMD Radeon

Discrete graphics card model

Not available

Memory form factor

On-board

Laptop model

Yoga 7

AC adapter power

65 W

AC adapter frequency

50/60 Hz

AC adapter input voltage

100 - 240 V

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

Mobile network connection

No

Antenna type

2x2

RGB colour space

DCI-P3

Colour gamut

100%

Display resolution

1920 x 1200 pixels

Speaker power

2 W

Number of built-in speakers

2

SSD interface

PCI Express 4.0

SSD form factor

M.2

Total SSDs capacity

1 TB

NVMe

Yes

Number of SSDs installed

1

Combo headphone/mic port

Yes

Front camera resolution

1920 x 1080 pixels

Front camera HD type

Full HD

Fast charging

Yes

Pointing device

Touchpad

Numeric keypad

No

Motherboard chipset

AMD SoC

Colour name

Arctic Grey

Trusted Platform Module (TPM)

Yes

Password protection

Yes

Number of microphones

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

1

Continuous video playback time

20 h

Sustainability compliance

Yes

On-board GPU manufacturer

AMD

USB Type-C DisplayPort Alternate Mode

Yes

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

Infrared (IR) camera

Yes

Trusted Platform Module (TPM) version

2.0

Maximum shipping altitude

3048 m

USB4 Gen 3x2 ports quantity

1

Memory channels

Dual-channel

Windows Hello

Yes

Audio chip

Realtek ALC3306

USB Sleep-and-Charge ports

1

USB Sleep-and-Charge

Yes

High Dynamic Range (HDR) technology

Dolby Vision
HDR True Black 500

High Dynamic Range (HDR) supported

Yes

Hall sensor

Yes

Neural processor unit (NPU)

AMD Ryzen AI

Compliance certificates

RoHS

NPU performance up to

16 TOPs

Total processor performance up to

31 TOPs

Backpack

Y

USB Power Delivery (USB PD)

Yes

Hazard pictogram(s)

GHS07: Harmful
GHS08: Health hazard
GHS09: Environmental hazard

Warnings

Do not dispose of your old device in the normal household waste - take it to an electronic waste collection point.
Do not expose to intense heat or open flame for prolonged periods.
Keep out of the reach of children.
