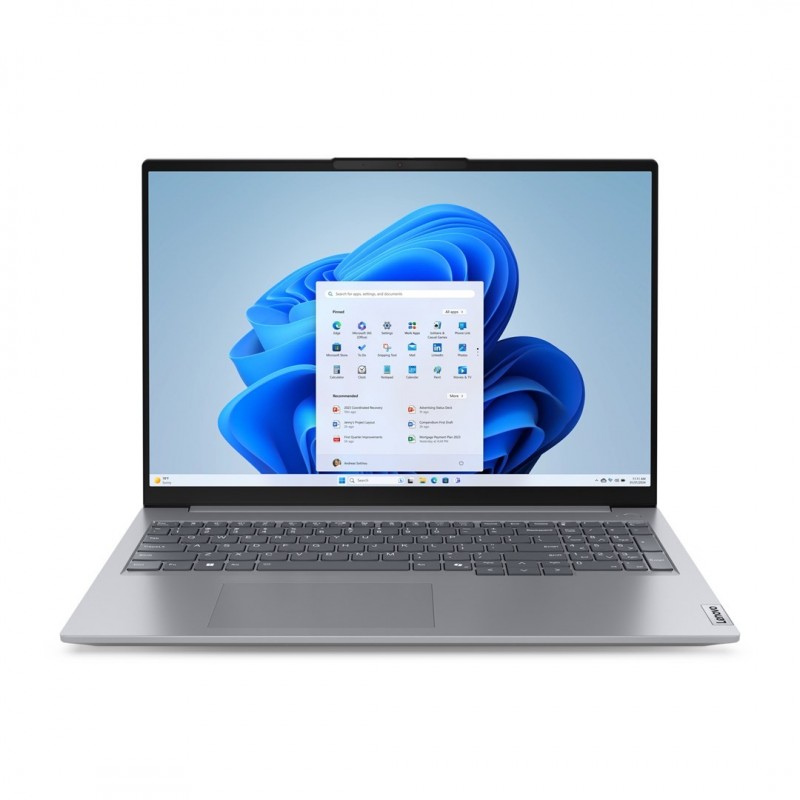

Lenovo ThinkBook 16 G7 Ryzen 5 7535HS 16.0"WUXGA 300nits AG IPS 16GB DDR5 5600 SSD512 Radeon 660M Win11

Data sheet

Height

17.5 mm

Width

356 mm

Depth

253.5 mm

Weight

1.7 kg

battery capacity

45 Wh

Bluetooth

Yes

Bluetooth version

5.3

fingerprint reader

Yes

Product Type

Laptop

touchscreen

No

SSD Capacity

512 GB

Memory slots

2x SO-DIMM

Panel type

IPS

Storage temperature (T-T)

5 - 43 °C

Built-in microphone

Yes

Operating temperature (T-T)

5 - 35 °C

Housing material

Acrylonitrile butadiene styrene (ABS), Aluminium, Polycarbonate (PC)

Internal memory

16 GB

Display diagonal

40.6 cm (16")

Battery technology

Lithium Polymer (LiPo)

Compatible memory cards

SD

Processor model

7535HS

Wi-Fi standards

Wi-Fi 6E (802.11ax)

Processor family

AMD Ryzen™ 5

Processor frequency

3.3 GHz

Operating system installed

Windows 11 Pro

Front camera

Yes

Ethernet LAN (RJ-45) ports

1

Internal memory type

DDR5-SDRAM

Processor cores

6

HD type

WUXGA

HDMI ports quantity

1

Storage media

SSD

Processor boost frequency

4.55 GHz

Total storage capacity

512 GB

Keyboard backlit

Yes

Optical drive type

No

LED backlight

Yes

Card reader integrated

Yes

Operating system architecture

64-bit

WWAN

Not installed

Memory clock speed

4800 MHz

Memory layout (slots x size)

1 x 16 GB

Maximum internal memory

64 GB

Operating relative humidity (H-H)

8 - 95%

Ethernet LAN

Yes

Storage relative humidity (H-H)

5 - 95%

Display brightness

300 cd/m²

Native aspect ratio

16:10

Cable lock slot

Yes

HDMI version

2.1

Product colour

Grey

Processor manufacturer

AMD

Processor cache type

L3

Processor generation

AMD Ryzen 7000 Series

Processor base power

35 W

Processor cache

16 MB

Discrete graphics card

No

On-board graphics card

Yes

On-board graphics card model

AMD Radeon 660M

On-board graphics card family

AMD Radeon

Discrete graphics card model

Not available

Memory form factor

SO-DIMM

AC adapter power

65 W

AC adapter frequency

50/60 Hz

AC adapter input voltage

100 - 240 V

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

Mobile network connection

No

Antenna type

2x2

Anti-glare screen

Yes

RGB colour space

NTSC

Colour gamut

45%

Display resolution

1920 x 1200 pixels

Speaker power

2 W

Number of built-in speakers

2

SSD interface

PCI Express 4.0

SSD form factor

M.2

Total SSDs capacity

512 GB

NVMe

Yes

Number of SSDs installed

1

Combo headphone/mic port

Yes

Front camera resolution

1920 x 1080 pixels

Front camera HD type

Full HD

Pointing device

Touchpad

Numeric keypad

Yes

Processor threads

16

Motherboard chipset

AMD SoC

Colour name

Arctic Grey

Trusted Platform Module (TPM)

Yes

Number of microphones

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

On-board GPU manufacturer

AMD

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

Infrared (IR) camera

Yes

Trusted Platform Module (TPM) version

2.0

Cable lock slot type

Kensington

Trial software

Office

Maximum shipping altitude

3048 m

USB4 Gen 3x2 ports quantity

1

Memory channels

Dual-channel

Windows Hello

Yes

Audio chip

Realtek ALC3287

USB Sleep-and-Charge

Yes
