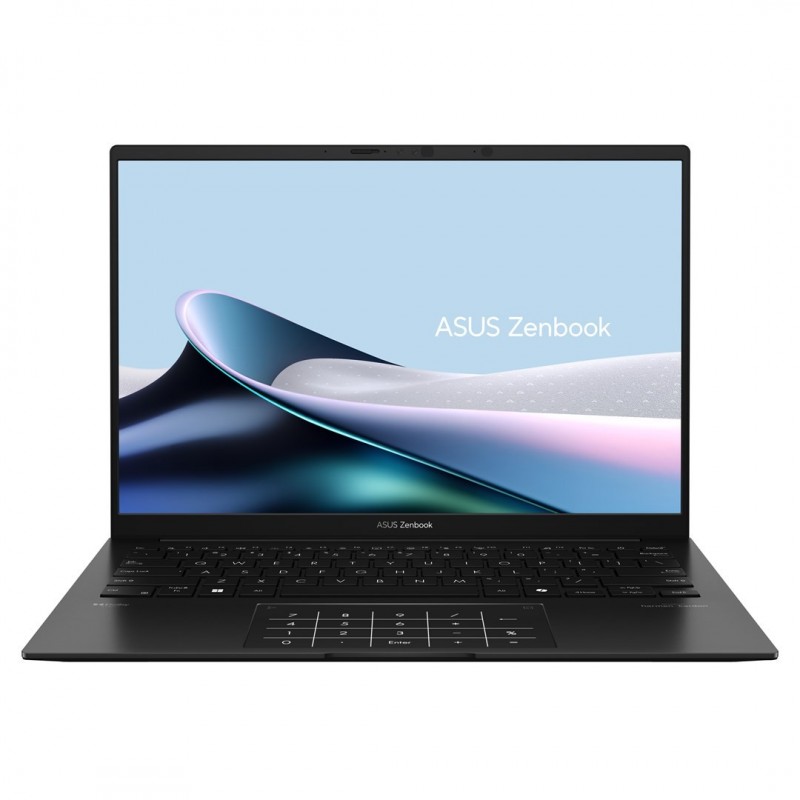

ASUS Zenbook 14 OLED UM3406HA-WS74T laptop AMD Ryzen™ 7 8840HS 35.6 cm (14") Touchscreen WUXGA 16 GB LPDDR5x-SDRAM 512

Data sheet

Height

14.9 mm

Width

312.4 mm

Depth

220.1 mm

Weight

1.28 kg

battery capacity

75 Wh

Bluetooth

Yes

Bluetooth version

5.3

form factor

Clamshell

Product Type

Laptop

touchscreen

Yes

SSD Capacity

512 GB

Panel type

OLED

Display surface

Gloss

Built-in microphone

Yes

Housing material

Aluminium

Internal memory

16 GB

Display diagonal

35.6 cm (14")

Battery technology

Lithium-Ion (Li-Ion)

Processor model

8840HS

Wi-Fi standards

Wi-Fi 6E (802.11ax)

Processor family

AMD Ryzen™ 7

Processor frequency

3.3 GHz

Operating system installed

Windows 11 Home

Front camera

Yes

Internal memory type

LPDDR5x-SDRAM

Processor cores

8

HD type

WUXGA

HDMI ports quantity

1

Storage media

SSD

Processor boost frequency

5.1 GHz

Total storage capacity

512 GB

Keyboard backlit

Yes

Optical drive type

No

Operating system architecture

64-bit

Number of battery cells

4

Maximum refresh rate

60 Hz

Maximum internal memory

16 GB

Audio system

Smart Amp

Ethernet LAN

No

Display number of colours

1.073 billion colours

Contrast ratio (typical)

1000000:1

Native aspect ratio

16:10

Speakers manufacturer

Harman Kardon

HDMI version

2.1

Product colour

Black

Sustainability certificates

ENERGY STAR
EPEAT Gold

Processor manufacturer

AMD

Processor cache type

L2 & L3

Processor generation

AMD Ryzen 8000 Series

Processor cache

24 MB

Discrete graphics card

No

On-board graphics card

Yes

On-board graphics card model

AMD Radeon 780M

Discrete graphics card model

Not available

Memory form factor

On-board

AC adapter power

65 W

AC adapter frequency

50 - 60 Hz

AC adapter output current

3.25 A

AC adapter input voltage

100 - 240 V

AC adapter output voltage

20 V

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

Mobile network connection

No

Antenna type

2x2

RGB colour space

DCI-P3

Colour gamut

100%

Display resolution

1920 x 1200 pixels

SSD interface

PCI Express 4.0

SSD form factor

M.2

Total SSDs capacity

512 GB

NVMe

Yes

Number of SSDs installed

1

Combo headphone/mic port

Yes

Front camera resolution

1920 x 1080 pixels

Front camera HD type

Full HD

Pointing device

Touchpad

Numeric keypad

No

Processor threads

16

Colour name

Jade Black

Introduction year

2024

Trusted Platform Module (TPM)

Yes

Password protection

Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

1

Sustainability compliance

Yes

On-board GPU manufacturer

AMD

USB Type-C DisplayPort Alternate Mode

Yes

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

Infrared (IR) camera

Yes

USB4 Gen 3x2 ports quantity

1

Memory channels

Dual-channel

Windows Hello

Yes

Display response rise/fall

0.2 ms

High Dynamic Range (HDR) technology

HDR True Black 500

High Dynamic Range (HDR) supported

Yes

Neural processor unit (NPU)

AMD Ryzen AI

Compliance certificates

REACH

NPU performance up to

16 TOPs

Total processor performance up to

38 TOPs

Face recognition

Yes

Market positioning

Home

Maximum display brightness (HDR)

400 cd/m²

Standard Dynamic Range (SDR) brightness

500 cd/m²

Privacy camera

Yes

Privacy type

Privacy shutter

Bag included

Yes

USB Power Delivery (USB PD)

Yes

USB Type-C charging port

Yes
