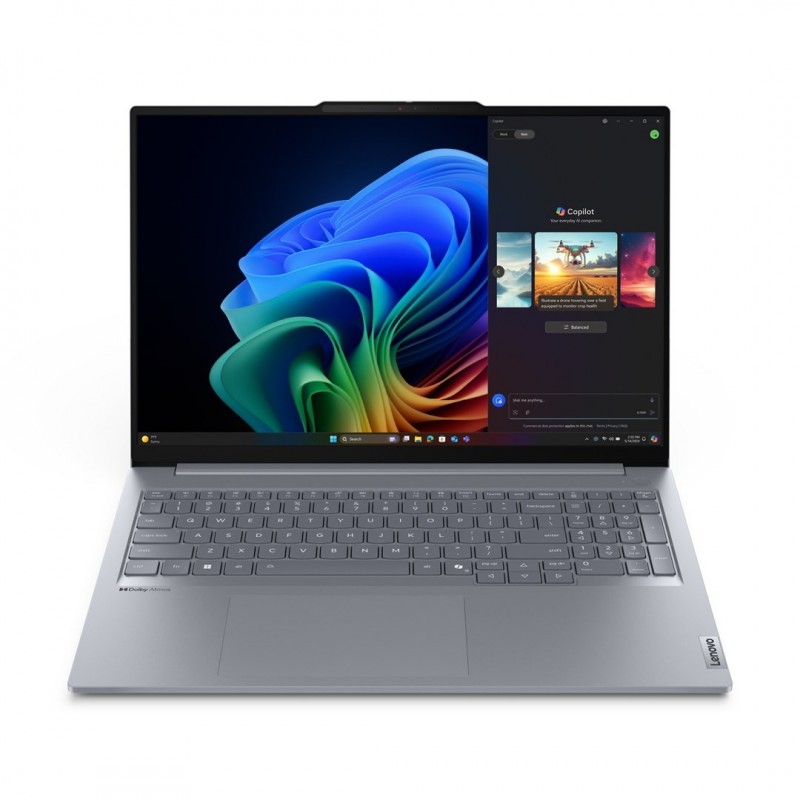

Lenovo ThinkBook 16 G7 Snapdragon X Plus X1P-42-100 16" WUXGA IPS 300nits AG 60Hz 32GB DDR5 SSD512 Qualcomm Adreno 84Wh

Data sheet

Height

16.7 mm

Width

356.4 mm

Depth

248.4 mm

Weight

1.82 kg

battery capacity

84 Wh

Bluetooth

Yes

Bluetooth version

5.3

fingerprint reader

Yes

Product Type

Laptop

touchscreen

No

SSD Capacity

512 GB

Panel type

IPS

Storage temperature (T-T)

5 - 43 °C

Built-in microphone

Yes

Operating temperature (T-T)

5 - 35 °C

Housing material

Aluminium

Internal memory

32 GB

Display diagonal

40.6 cm (16")

Battery technology

Lithium Polymer (LiPo)

Compatible memory cards

SD

Processor model

X1P-42-100

Wi-Fi standards

Wi-Fi 7 (802.11be)

Processor family

Qualcomm Snapdragon

Operating system installed

Windows 11 Pro

Front camera

Yes

Internal memory type

LPDDR5x-SDRAM

Processor cores

8

HD type

WUXGA

HDMI ports quantity

1

Storage media

SSD

Processor boost frequency

3.4 GHz

Total storage capacity

512 GB

Keyboard backlit

Yes

Optical drive type

No

LED backlight

Yes

Card reader integrated

Yes

Operating system architecture

64-bit

WWAN

Not installed

Memory clock speed

8448 MHz

Maximum refresh rate

60 Hz

Maximum internal memory

32 GB

Operating relative humidity (H-H)

8 - 95%

Audio system

Dolby Atmos

Ethernet LAN

No

Storage relative humidity (H-H)

5 - 95%

Display brightness

300 cd/m²

Native aspect ratio

16:10

Cable lock slot

Yes

Certification

TÜV Rheinland Low Blue Light (Software Solution)
MIL-STD-810H military test passed

HDMI version

2.1

Product colour

Grey

Processor manufacturer

Qualcomm

Processor generation

Snapdragon X Plus (X1P)

Processor cache

30 MB

Discrete graphics card

No

On-board graphics card

Yes

On-board graphics card model

Qualcomm Adreno GPU

On-board graphics card family

Qualcomm Adreno

Discrete graphics card model

Not available

Memory form factor

On-board

AC adapter power

65 W

AC adapter frequency

50 - 60 Hz

AC adapter input voltage

100 - 240 V

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

Mobile network connection

No

Antenna type

2x2

Anti-glare screen

Yes

RGB colour space

NTSC

Colour gamut

45%

Display resolution

1920 x 1200 pixels

Speaker power

2 W

Number of built-in speakers

2

SSD interface

PCI Express 4.0

SSD form factor

M.2

Total SSDs capacity

512 GB

NVMe

Yes

Number of SSDs installed

1

Combo headphone/mic port

Yes

Front camera resolution

1920 x 1080 pixels

Front camera HD type

Full HD

Pointing device

Touchpad

Numeric keypad

Yes

Motherboard chipset

Qualcomm SoC

Colour name

Luna Grey

Trusted Platform Module (TPM)

Yes

Password protection

Yes

Number of microphones

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

Continuous video playback time

30 h

On-board GPU manufacturer

Qualcomm

USB Type-C DisplayPort Alternate Mode

Yes

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

2

Spill-resistant keyboard

Yes

Trusted Platform Module (TPM) version

2.0

Cable lock slot type

Kensington

Maximum shipping altitude

3048 m

Memory channels

Dual-channel

Audio chip

Qualcomm WCD9385

USB Sleep-and-Charge ports

1

USB Sleep-and-Charge

Yes

Neural processor unit (NPU)

Qualcomm Hexagon

Compliance certificates

RoHS

NPU performance up to

45 TOPs

Microsoft Copilot

Yes

Copilot key

Yes

USB Power Delivery (USB PD)

Yes

Hazard pictogram(s)

GHS07: Harmful
GHS08: Health hazard
GHS09: Environmental hazard

Warnings

Do not dispose of your old device in the normal household waste - take it to an electronic waste collection point.
Do not expose to intense heat or open flame for prolonged periods.
Keep out of the reach of children.

Copilot+ PC

Yes
