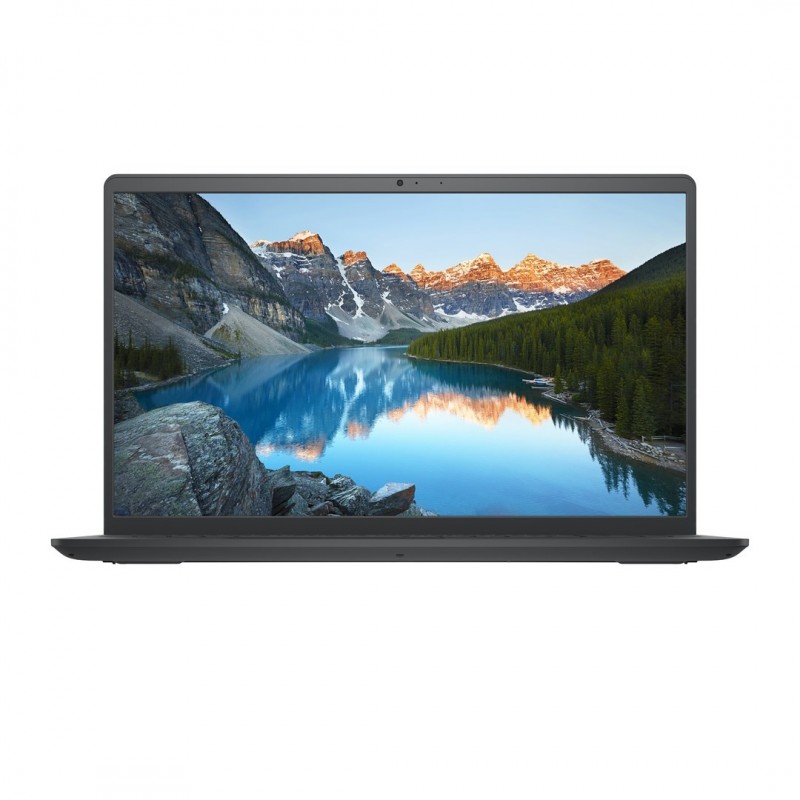

Dell Inspiron 3530 i5-1334U 15.6"FHD 32GB DDR4 2666 SSD1TB Intel Iris Xe Graphics Cam Mic WLAN+BT Kb 3 Cell Win11

Data sheet

Width

358.5 mm

Depth

235.6 mm

Weight

1.66 kg

battery capacity

41 Wh

Bluetooth

Yes

fingerprint reader

No

Product Type

Laptop

touchscreen

No

Battery weight

190 g

SSD Capacity

1 TB

Memory slots

2x SO-DIMM

Panel type

WVA

Battery voltage

11.25 V

Storage temperature (T-T)

-40 - 65 °C

Built-in microphone

Yes

Operating temperature (T-T)

0 - 35 °C

Operating altitude

0 - 3048 m

Cables included

AC

USB 2.0 ports quantity

1

Housing material

Plastic

Internal memory

32 GB

Battery life (max)

9.25 h

Battery recharge time

4 h

Display diagonal

39.6 cm (15.6")

Battery technology

Lithium Polymer (LiPo)

Compatible memory cards

SD
SDHC
SDXC

Processor model

i5-1334U

Wi-Fi standards

802.11a
802.11b
802.11g
Wi-Fi 4 (802.11n)
Wi-Fi 5 (802.11ac)
Wi-Fi 6 (802.11ax)

Processor family

Intel® Core™ i5

Operating system installed

Windows 11 Home

Front camera

Yes

Internal memory type

DDR4-SDRAM

Processor cores

10

HD type

Full HD

HDMI ports quantity

1

Storage media

SSD

Processor boost frequency

4.6 GHz

Total storage capacity

1 TB

Optical drive type

No

LED backlight

Yes

Card reader integrated

Yes

Operating system architecture

64-bit

Number of battery cells

3

Maximum refresh rate

120 Hz

Operating relative humidity (H-H)

10 - 90%

Ethernet LAN

No

Storage relative humidity (H-H)

0 - 95%

Non-operating altitude

0 - 10668 m

Display brightness

250 cd/m²

Native aspect ratio

16:9

HDMI version

1.4

Product colour

Black

Operating shock

110 G

Performance cores

2

Processor manufacturer

Intel

Performance-core Max Turbo Frequency

4.6 GHz

Efficient cores

8

Processor cache type

Smart Cache

Processor generation

13th gen Intel® Core™ i5

Maximum turbo power

55 W

Processor base power

15 W

Processor cache

12 MB

Efficient-core Max Turbo Frequency

3.4 GHz

Discrete graphics card

No

On-board graphics card

Yes

On-board graphics card model

Intel Iris Xe Graphics

Discrete graphics card model

Not available

Memory form factor

SO-DIMM

AC adapter power

65 W

AC adapter frequency

50 - 60 Hz

AC adapter output current

3.34 A

AC adapter input voltage

100 - 240 V

AC adapter output voltage

19.5 V

Operating vibration

0.66 G

Non-operating shock

160 G

Non-operating vibration

1.3 G

Height (rear)

1.9 cm

Height (front)

1.7 cm

Top Wi-Fi standard

Wi-Fi 6 (802.11ax)

Mobile network connection

No

Antenna type

2x2

Anti-glare screen

Yes

Display resolution

1920 x 1080 pixels

Speaker power

2 W

Number of built-in speakers

2

SSD interface

PCI Express

SSD form factor

M.2

Total SSDs capacity

1 TB

NVMe

Yes

Number of SSDs installed

1

Charging port type

DC-in jack

Combo headphone/mic port

Yes

Video capturing speed

30 fps

Battery charge indicator

Yes

Fast charging

Yes

Pointing device

Touchpad

Numeric keypad

Yes

Processor threads

12

Password protection

Yes

MIMO

Yes

MIMO type

Multi User MIMO

WLAN controller manufacturer

Realtek

WLAN controller model

Realtek RTL8852BE

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

1

On-board GPU manufacturer

Intel

Keyboard layout

QWERTY

Hazard pictogram(s)

GHS07: Harmful
GHS08: Health hazard
GHS09: Environmental hazard

Warnings

Do not dispose of your old device in the normal household waste - take it to an electronic waste collection point.
Do not expose to intense heat or open flame for prolonged periods.
Keep out of the reach of children.
