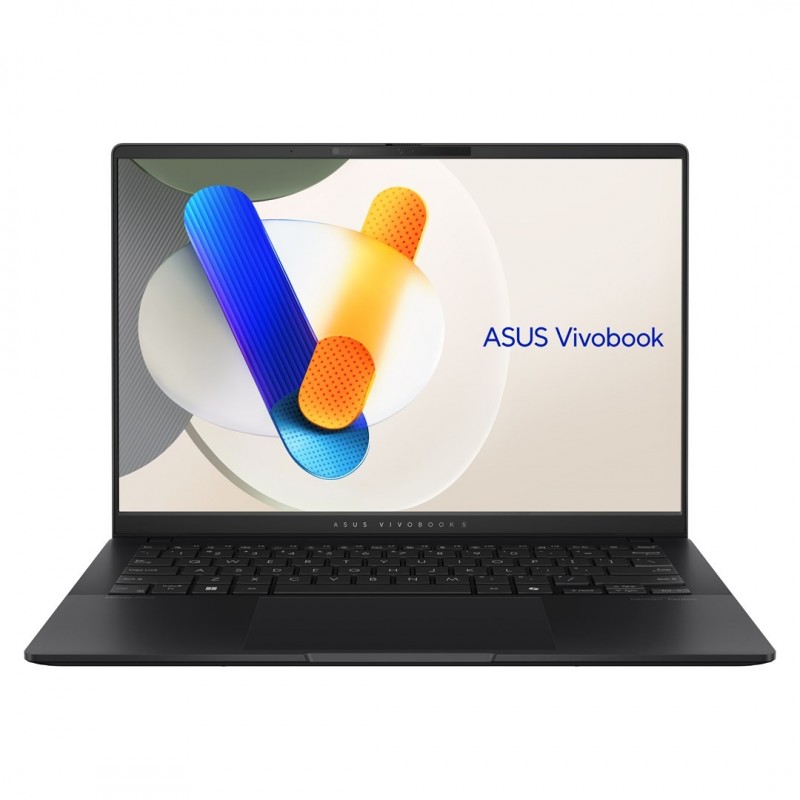

ASUS Vivobook S 14 M5406WA-PP062W Ryzen AI 9 365 14.0" 3K 120Hz 400nits Glossy 32GB LPDDR5X SSD1TB Radeon 880M Graphics

Data sheet

Width

310.5 mm

Depth

221.9 mm

Weight

1.3 kg

battery capacity

75 Wh

Bluetooth

Yes

Bluetooth version

5.3

Product Type

Laptop

touchscreen

No

SSD Capacity

1 TB

Panel type

OLED

Display surface

Gloss

Built-in microphone

Yes

Built-in speaker(s)

Yes

AC adapter included

Yes

Housing material

Aluminium

Internal memory

32 GB

Display diagonal

35.6 cm (14")

Battery technology

Lithium-Ion (Li-Ion)

Compatible memory cards

MicroSD (TransFlash)

Processor model

365

Wi-Fi standards

Wi-Fi 6E (802.11ax)

Processor family

AMD Ryzen AI 9

Processor frequency

2 GHz

Operating system installed

Windows 11 Home

Front camera

Yes

Internal memory type

LPDDR5x-SDRAM

Processor cores

10

HD type

3K

HDMI ports quantity

1

Storage media

SSD

Processor boost frequency

5 GHz

Total storage capacity

1 TB

Keyboard backlit

Yes

Optical drive type

No

Card reader integrated

Yes

Operating system architecture

64-bit

WWAN

Not installed

Memory layout (slots x size)

1 x 32 GB

Number of battery cells

4

Maximum refresh rate

120 Hz

Maximum internal memory

32 GB

Audio system

Smart Amp

Ethernet LAN

No

Display brightness

400 cd/m²

Contrast ratio (typical)

1000000:1

Native aspect ratio

16:10

HDMI version

2.1

Product colour

Black

Processor manufacturer

AMD

Processor cache type

L3

Processor cache

24 MB

Discrete graphics card

No

On-board graphics card

Yes

On-board graphics card model

AMD Radeon 880M

Discrete graphics card model

Not available

Memory form factor

On-board

AC adapter power

90 W

AC adapter frequency

50 - 60 Hz

AC adapter output current

4.5 A

AC adapter input voltage

100 - 240 V

AC adapter output voltage

20 V

Height (rear)

1.59 cm

Height (front)

1.39 cm

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

Mobile network connection

No

Antenna type

2x2

RGB colour space

DCI-P3

Colour gamut

100%

Display resolution

2880 x 1800 pixels

SSD interface

PCI Express 4.0

SSD form factor

M.2

Total SSDs capacity

1 TB

NVMe

Yes

Number of SSDs installed

1

Combo headphone/mic port

Yes

Front camera resolution

1920 x 1080 pixels

Front camera HD type

Full HD

Pointing device

Touchpad

Numeric keypad

No

Processor threads

20

Colour name

Neutral Black

Trusted Platform Module (TPM)

Yes

Password protection

Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

On-board GPU manufacturer

AMD

USB Type-C DisplayPort Alternate Mode

Yes

Infrared (IR) camera

Yes

USB4 Gen 3x2 ports quantity

1

Windows Hello

Yes

High Dynamic Range (HDR) technology

HDR True Black 600

Keyboard backlit colour

RGB

High Dynamic Range (HDR) supported

Yes

Keyboard backlit zone

1-zone RGB

Neural processor unit (NPU)

AMD Ryzen AI

NPU performance up to

50 TOPs

Total processor performance up to

73 TOPs

Maximum display brightness (HDR)

600 cd/m²

M.2 SSD size

2280 (22 x 80 mm)

Hazard pictogram(s)

GHS07: Harmful
GHS08: Health hazard
GHS09: Environmental hazard

Warnings

Do not dispose of your old device in the normal household waste - take it to an electronic waste collection point.
Do not expose to intense heat or open flame for prolonged periods.
Keep out of the reach of children.
