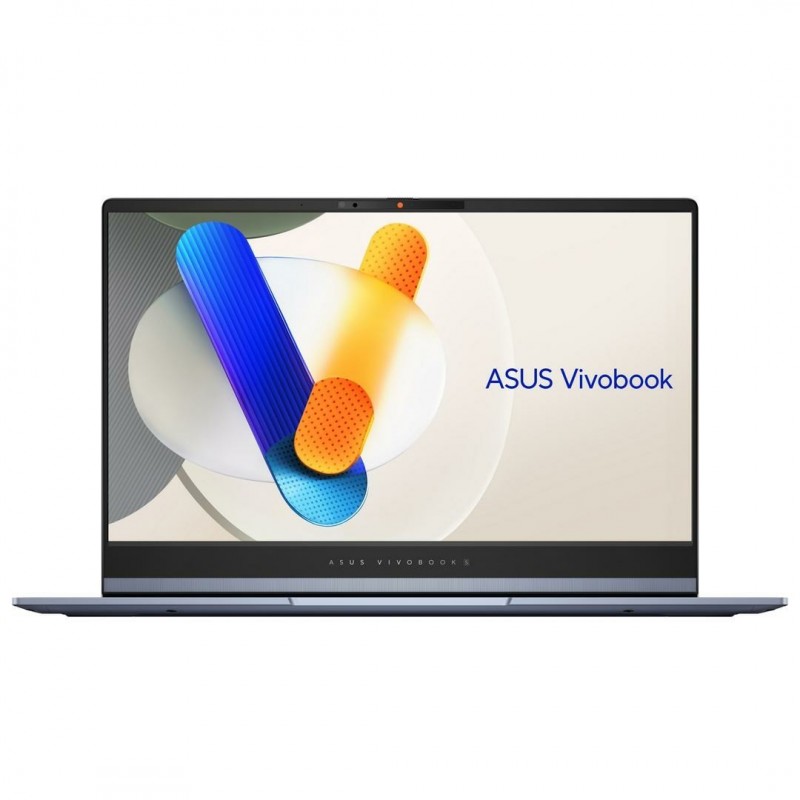

ASUS Vivobook S 15 OLED S5506MA-WS76 Intel Core Ultra 7 155H Laptop 39.6 cm (15.6") 3K 16 GB LPDDR5x-SDRAM 1 TB SSD

Data sheet

Width

353.6 mm

Depth

246.9 mm

Weight

1.5 kg

battery capacity

75 Wh

Bluetooth

Yes

Bluetooth version

5.3

Product Type

Laptop

touchscreen

No

SSD Capacity

1 TB

Panel type

OLED

Display surface

Gloss

Built-in microphone

Yes

Housing material

Aluminium

Internal memory

16 GB

Display diagonal

39.6 cm (15.6")

Battery technology

Lithium-Ion (Li-Ion)

Compatible memory cards

MicroSD (TransFlash)

Processor model

155H

Wi-Fi standards

Wi-Fi 6E (802.11ax)

Processor family

Intel Core Ultra 7

Operating system installed

Windows 11 Home

Front camera

Yes

Internal memory type

LPDDR5x-SDRAM

Processor cores

16

HD type

3K

HDMI ports quantity

1

Storage media

SSD

Processor boost frequency

4.8 GHz

Total storage capacity

1 TB

Keyboard backlit

Yes

Optical drive type

No

Card reader integrated

Yes

Operating system architecture

64-bit

Number of battery cells

4

Maximum refresh rate

120 Hz

Maximum internal memory

16 GB

Audio system

Smart Amp

Ethernet LAN

No

Display brightness

400 cd/m²

Contrast ratio (typical)

1000000:1

Native aspect ratio

16:9

Speakers manufacturer

Harman Kardon

HDMI version

2.1

Product colour

Blue

Performance cores

6

Processor manufacturer

Intel

Performance-core Max Turbo Frequency

4.8 GHz

Efficient cores

8

Processor cache type

Smart Cache

Processor generation

Intel® Core™ Ultra (Series 1)

Maximum turbo power

115 W

Processor base power

28 W

Processor cache

24 MB

Efficient-core Max Turbo Frequency

3.8 GHz

Discrete graphics card

No

On-board graphics card

Yes

On-board graphics card model

Intel Arc Graphics

On-board graphics card family

Intel Arc Graphics

Discrete graphics card model

Not available

Memory form factor

On-board

AC adapter power

90 W

AC adapter frequency

50 - 60 Hz

AC adapter output current

4.5 A

AC adapter input voltage

100 - 240 V

AC adapter output voltage

20 V

Height (rear)

1.59 cm

Height (front)

1.39 cm

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

Mobile network connection

No

Antenna type

2x2

RGB colour space

DCI-P3

Colour gamut

100%

Display resolution

2880 x 1620 pixels

SSD interface

PCI Express 4.0

SSD form factor

M.2

Total SSDs capacity

1 TB

NVMe

Yes

Number of SSDs installed

1

Charging port type

USB Type-C

Combo headphone/mic port

Yes

Front camera resolution

1920 x 1080 pixels

Front camera HD type

Full HD

Pointing device

Touchpad

Numeric keypad

Yes

Processor threads

22

Colour name

Mist Blue

Introduction year

2024

Trusted Platform Module (TPM)

Yes

Password protection

Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

On-board GPU manufacturer

Intel

USB Type-C DisplayPort Alternate Mode

Yes

Infrared (IR) camera

Yes

Trial software

1-month trial for new Microsoft 365 customers. Credit card required, McAfee 30 days

Windows Hello

Yes

Intel® Thunderbolt 4

Yes

Thunderbolt 4 ports quantity

2

High Dynamic Range (HDR) technology

HDR True Black 600

Keyboard backlit colour

RGB

Performance-core base frequency

1.4 GHz

Efficient-core base frequency

0.9 GHz

High Dynamic Range (HDR) supported

Yes

Keyboard backlit zone

1-zone RGB

Low Power Efficient-cores

2

Low Power Efficient-core Max Turbo Frequency

2.5 GHz

Low Power Efficient-core Base Frequency

700 MHz

Neural processor unit (NPU)

Intel AI Boost

Windows Studio effects support

Yes

AI software frameworks supported by NPU

DirectML
ONNX RT
OpenVINO
Windows ML

Maximum frequency NPU

1.4 GHz

Sparsity support

Yes

Compliance certificates

REACH

Face recognition

Yes

Maximum display brightness (HDR)

600 cd/m²

USB Power Delivery (USB PD)

Yes
