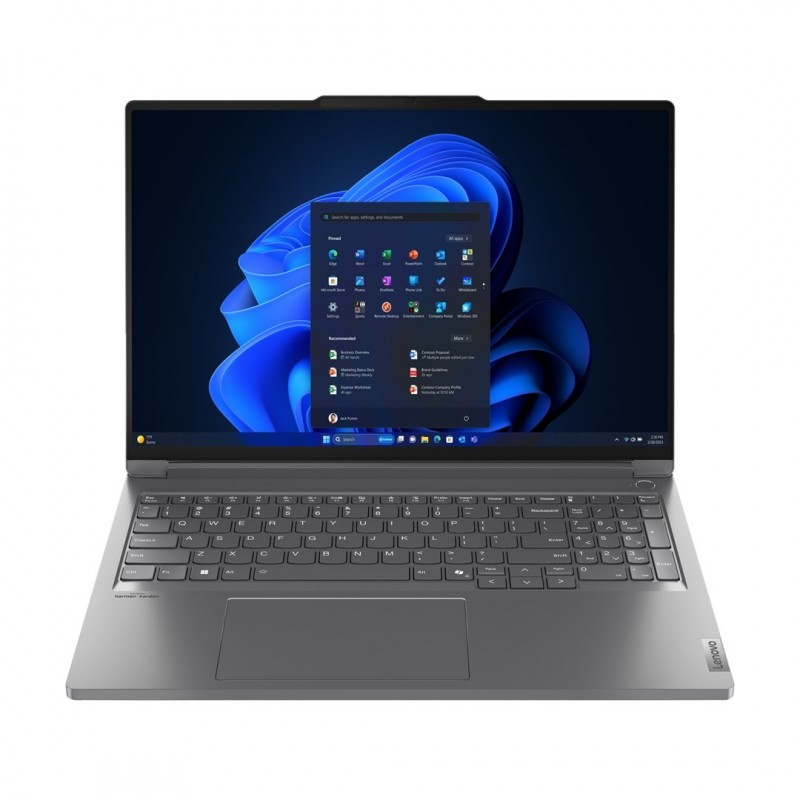

Lenovo ThinkBook 16p G5 IRX i5-14500HX 16.0"WQXGA IPS 400nits AG 16GB DDR5 SSD512 RTX 4050_6GB W11Pro Storm Grey 3Y

Data sheet

Height

19.9 mm

Width

354.6 mm

Depth

258.2 mm

Weight

2.2 kg

battery capacity

80 Wh

Bluetooth

Yes

Bluetooth version

5.3

fingerprint reader

Yes

Product Type

Laptop

touchscreen

No

SSD Capacity

512 GB

Memory slots

2x SO-DIMM

Panel type

IPS

Storage temperature (T-T)

5 - 43 °C

Built-in microphone

Yes

Operating temperature (T-T)

5 - 35 °C

Housing material

Aluminium

Internal memory

16 GB

Display diagonal

40.6 cm (16")

Battery technology

Lithium Polymer (LiPo)

Compatible memory cards

SD

Processor model

i5-14500HX

Wi-Fi standards

Wi-Fi 6E (802.11ax)

Processor family

Intel Core 5

Operating system installed

Windows 11 Pro

Front camera

Yes

Internal memory type

DDR5-SDRAM

Processor cores

14

HD type

WQXGA

HDMI ports quantity

1

Storage media

SSD

Processor boost frequency

4.9 GHz

Total storage capacity

512 GB

Keyboard backlit

Yes

Optical drive type

No

LED backlight

Yes

Card reader integrated

Yes

Operating system architecture

64-bit

WWAN

Not installed

Discrete graphics memory type

GDDR6

Memory clock speed

5600 MHz

Memory layout (slots x size)

2 x 8 GB

Maximum refresh rate

60 Hz

Maximum internal memory

32 GB

Operating relative humidity (H-H)

8 - 95%

Storage relative humidity (H-H)

5 - 95%

Display brightness

400 cd/m²

Native aspect ratio

16:10

Cable lock slot

Yes

HDMI version

2.1

Product colour

Grey

Performance cores

6

Processor manufacturer

Intel

Performance-core Max Turbo Frequency

4.9 GHz

Efficient cores

8

Processor cache type

Smart Cache

Processor generation

Intel® Core™ i5 (14th gen)

Maximum turbo power

157 W

Processor base power

55 W

Processor cache

24 MB

Efficient-core Max Turbo Frequency

3.5 GHz

Discrete graphics card

Yes

On-board graphics card

Yes

On-board graphics card model

Intel® UHD Graphics

On-board graphics card family

Intel® UHD Graphics

Discrete graphics card model

NVIDIA GeForce RTX 4050

Memory form factor

SO-DIMM

AC adapter power

230 W

AC adapter frequency

50/60 Hz

AC adapter input voltage

100 - 240 V

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

Mobile network connection

No

Antenna type

2x2

Anti-glare screen

Yes

RGB colour space

sRGB

Colour gamut

100%

Display resolution

2560 x 1600 pixels

SSD interface

PCI Express 4.0

SSD form factor

M.2

Total SSDs capacity

512 GB

NVMe

Yes

Number of SSDs installed

1

Combo headphone/mic port

Yes

Front camera resolution

1920 x 1080 pixels

Front camera HD type

Full HD

Pointing device

Touchpad

Numeric keypad

Yes

Motherboard chipset

Intel HM770

Colour name

Storm Grey

Trusted Platform Module (TPM)

Yes

Number of microphones

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

On-board GPU manufacturer

Intel

Infrared (IR) camera

Yes

Trusted Platform Module (TPM) version

2.0

Cable lock slot type

Kensington

Maximum shipping altitude

3048 m

Memory channels

Dual-channel

Windows Hello

Yes

Audio chip

Realtek ALC3306-CG

USB Sleep-and-Charge

Yes

Intel® Thunderbolt 4

Yes

Thunderbolt 4 ports quantity

2

Discrete graphics card memory

6 GB

Discrete GPU manufacturer

NVIDIA

High Dynamic Range (HDR) technology

Dolby Vision

Performance-core base frequency

2.6 GHz

Efficient-core base frequency

1.9 GHz

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

High Dynamic Range (HDR) supported

Yes

Hazard pictogram(s)

GHS07: Harmful
GHS08: Health hazard
GHS09: Environmental hazard
