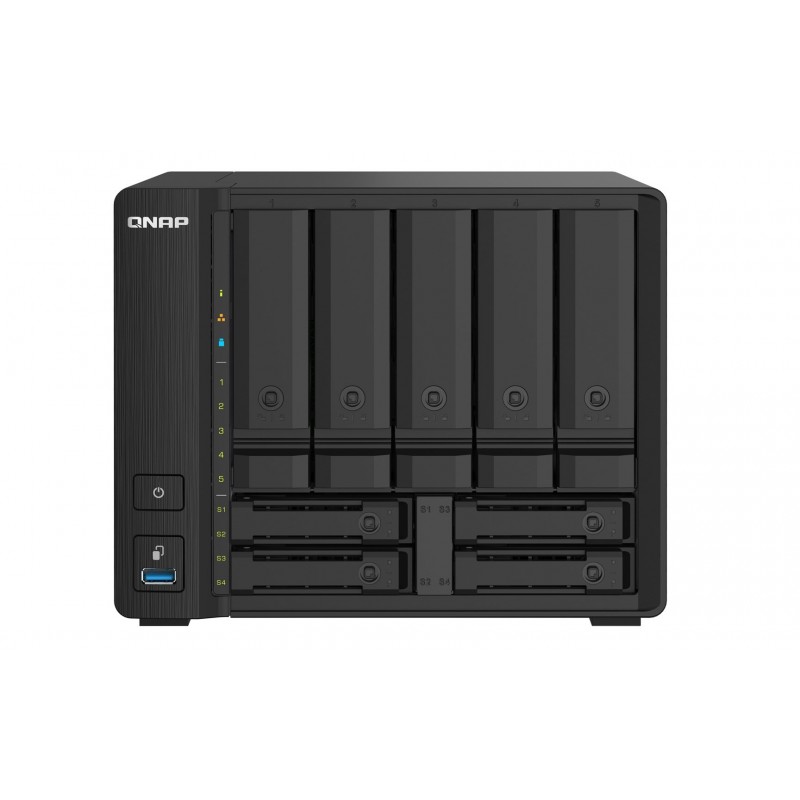

QNAP TS-932PX NAS Tower Ethernet LAN Black Alpine AL-324

Data sheet

Height

182.7 mm

Width

224.6 mm

Depth

224.1 mm

Weight

3.39 kg

Type

NAS

Memory slots

1

Storage temperature (T-T)

-20 - 70 °C

Operating temperature (T-T)

0 - 40 °C

USB port

Yes

Mac operating systems supported

Mac OS X 10.10 Yosemite
Mac OS X 10.11 El Capitan
Mac OS X 10.12 Sierra
Mac OS X 10.13 High Sierra
Mac OS X 10.14 Mojave
Mac OS X 10.15 Catalina

On/off switch

Yes

Internal memory

4 GB

AC input voltage

100 - 240 V

Windows operating systems supported

Windows 7
Windows 8
Windows 10

AC input frequency

50 - 60 Hz

Processor model

Alpine AL-324

Processor family

Annapurna Labs

Processor frequency

1.7 GHz

Operating system version

5.0.0

Operating system installed

QNAP Turbo System

Ethernet LAN (RJ-45) ports

2

Internal memory type

DDR4

Processor cores

4

Flash memory

512 MB

Operating relative humidity (H-H)

5 - 95%

LED indicators

HDD
LAN
SSD
Status
USB

Ethernet LAN data rates

100
1000 Mbit/s
2500 Mbit/s
10000 Mbit/s

Ethernet LAN

Yes

Cable lock slot

Yes

Product colour

Black

Supported file systems

FAT32
HFS+
NTFS
ext3
ext4

Harmonized System (HS) code

84714100

Security algorithms

256-bit AES
FIPS 140-2
HTTPS
SNMPv2
SNMPv3
SSH
SSL/TLS

Processor manufacturer

Annapurna Labs

Memory form factor

SO-DIMM

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

3

Cable lock slot type

Kensington

Processor architecture

ARM Cortex-A57

Linux operating systems supported

Yes

External power adapter

Yes

S.M.A.R.T. support

Yes

RAID support

Yes

Server operating systems supported

Windows Server 2008 R2
Windows Server 2012
Windows Server 2012 R2
Windows Server 2016
Windows Server 2019

Cooling type

Active

Chassis type

Tower

Noise level

18.6 dB

Supported network protocols

FTP, SFTP, TFTP, ec, OpenVPN, QBelt

Maximum RAM supported

16 GB

Number of fans

1 fan(s)

Fan diameter

14 cm

Power supply location

External

Supported storage drive interfaces

Serial ATA, Serial ATA II, Serial ATA III

Wake-on-LAN ready

Yes

RAID levels

0
1
5
6
10
50
60
JBOD

Number of storage drives supported

9

Supported storage drive types

HDD & SSD

Buzzer

Yes

Storage drive sizes supported

2.5
3.5"

Device class

Small & Medium Business

Storage drives installed

No

Installed storage drive type

No

Jumbo frames support

Yes

Fiber optic connector

SFP+

Fiber ports quantity

2

Browser supported

Apple Safari 7+, Google Chrome, Microsoft Internet Explorer 10+, Mozilla Firefox

Web-based management

Yes

Power supply unit (PSU) capacity

120 W

iSCSI support

Yes

USB copy function

Yes

Backup function

Yes

Reset button

Yes

Snapshot

Yes

Multilingual support

Yes

Access Control List (ACL)

Yes

Hot-swap drive bays

Yes

Number of power supply units

1

Backup features

Cloud
iSCSI LUN

System log

Yes

Built-in FTP server

Yes

Share folder

CIFS/SMB

WLAN adapter supported

Yes

Link aggregation

Yes

Hot spare

Yes

Online RAID migration

Yes

Online RAID expansion

Yes

Concurrent connections

700

Ethernet LAN data rate supported (max)

10000 Mbit/s

Load balancing system

Yes

Dynamic DNS (DDNS)

Yes

DHCP server

Yes

Disk roaming

Yes

Fan voltage

12 V

RAID rebuild

Yes

DHCP client

Yes

Bad block scan

Yes
