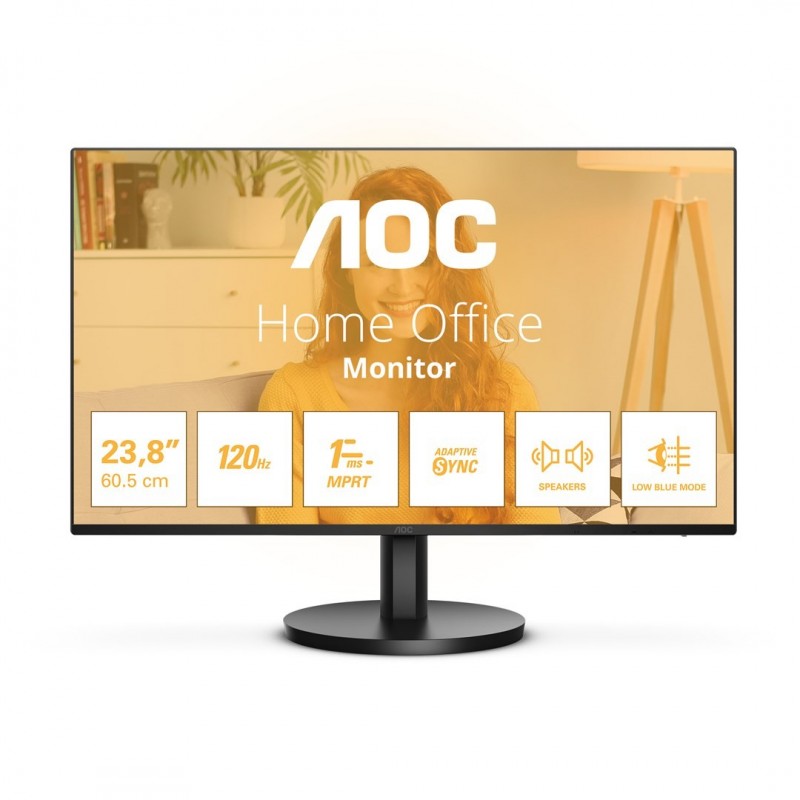

MONITOR AOC LED 23,8" 24B3QA2 120Hz

Data sheet

display technology

LED

HDMI

Yes

touchscreen

No

Panel type

IPS

Response time

4 ms

Power supply type

Internal

Built-in speaker(s)

Yes

RMS rated power

4 W

Headphone connectivity

3.5 mm

Number of speakers

2

Headphone outputs

1

Package weight

4.85 kg

Cables included

AC
HDMI

Headphone out

Yes

Depth (with stand)

202.3 mm

Package width

614 mm

Package depth

126 mm

Package height

394 mm

AC input voltage

100 - 240 V

Power consumption (typical)

19 W

Power consumption (standby)

0.5 W

Display diagonal

60.5 cm (23.8")

AC input frequency

50/60 Hz

HD type

Full HD

HDMI ports quantity

1

LED backlight

Yes

VGA (D-Sub) ports quantity

1

Maximum refresh rate

120 Hz

DisplayPorts quantity

1

Height (with stand)

412.1 mm

Pixel pitch

0.2745 x 0.2745 mm

Viewing angle, vertical

178°

Display number of colours

16.7 million colours

Viewing angle, horizontal

178°

Width (with stand)

542.4 mm

VESA mounting

Yes

Contrast ratio (typical)

1300:1

Tilt adjustment

Yes

Native aspect ratio

16:9

Screen shape

Flat

Contrast ratio (dynamic)

20000000:1

Power consumption (off)

0.3 W

Cable lock slot

Yes

Viewable size, horizontal

52.7 cm

Viewable size, vertical

29.6 cm

On Screen Display (OSD) languages

Croatian
Czech
Dutch
English
Finnish
French
German
Italian
Japanese
Korean
Polish
Portuguese
Russian
Simplified Chinese
Spanish
Swedish
Traditional Chinese
Turkish
Ukrainian

On Screen Display (OSD)

Yes

Pixel density

93 ppi

Backlight type

W-LED

HDMI version

1.4

Display diagonal (metric)

60.5 cm

DisplayPort version

1.2

Product colour

Black

Anti-glare screen

Yes

Display resolution

1920 x 1080 pixels

Cable lock slot type

Kensington

Warranty period

3 year(s)

Compliance certificates

CE
Federal Communications Commission (FCC)
RoHS

Market positioning

Consumer

Detachable stand

Yes

Energy efficiency scale

A to G

Energy consumption (SDR) per 1000 hours

18 kWh

Energy efficiency class (SDR)

E

Height (without stand)

316.2 mm

Weight (with stand)

2.97 kg

Depth (without stand)

44.6 mm

Width (without stand)

542.4 mm

Low Blue Light technology

Yes

Flicker-free technology

Yes

sRGB coverage (typical)

104%

Display brightness (typical)

300 cd/m²

Panel mounting interface

100 x 100 mm

Tilt angle range

-5 - 25°

Weight (without stand)

2.65 kg

Front bezel colour

Black

VESA Adaptive Sync support

Yes

Energy efficiency class (HDR)

E

Energy consumption (HDR) per 1000 hours

18 kWh

Number of OSD languages

19

Frameless design

Yes

NTSC coverage (typical)

93%

Dynamic contrast ratio marketing name

Mega DCR

HDMI cable length

1.5 m

PC Audio in

Yes

Response time (MPRT)

1 ms

Response time measurement type

GTG (Gray to Gray)
