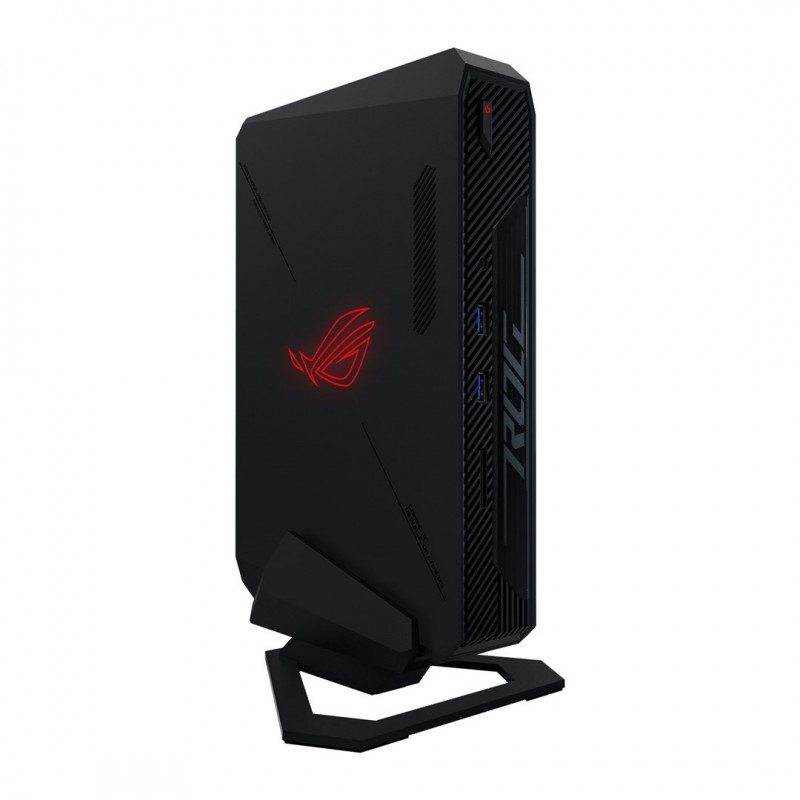

ASUS ROG NUC RNUC14SRKU9189A3I Intel Core Ultra 9 185H 32 GB DDR5-SDRAM 1 TB SSD NVIDIA GeForce RTX 4070 Mini PC Black

Data sheet

Height

50 mm

Width

270 mm

Depth

180 mm

Bluetooth

Yes

Bluetooth version

5.3

power supply

330 W

Product Type

Mini PC

SSD Capacity

1 TB

Memory slots

2x SO-DIMM

Wi-Fi

Yes

Headphone outputs

1

USB 2.0 ports quantity

2

Internal memory

32 GB

Processor model

185H

Wi-Fi standards

802.11a
802.11b
802.11g
Wi-Fi 4 (802.11n)
Wi-Fi 5 (802.11ac)
Wi-Fi 6 (802.11ax)
Wi-Fi 6E (802.11ax)

Processor family

Intel Core Ultra 9

Ethernet LAN (RJ-45) ports

1

Internal memory type

DDR5-SDRAM

Processor cores

16

HDMI ports quantity

1

Storage media

SSD

Total storage capacity

1 TB

Optical drive type

No

Discrete graphics memory type

GDDR6

Memory layout (slots x size)

2 x 16 GB

Maximum internal memory

64 GB

DisplayPorts quantity

2

Ethernet LAN data rates

10
100 Mbit/s
1000 Mbit/s
2500 Mbit/s

Ethernet LAN

Yes

Cable lock slot

Yes

HDMI version

2.1

DisplayPort version

1.4a

Product colour

Black

Performance cores

6

Processor manufacturer

Intel

Performance-core Max Turbo Frequency

5.1 GHz

Efficient cores

8

Processor cache type

Smart Cache

Processor generation

Intel® Core™ Ultra (Series 1)

Maximum turbo power

115 W

Processor base power

45 W

Processor cache

24 MB

Efficient-core Max Turbo Frequency

3.8 GHz

Discrete graphics card

Yes

On-board graphics card

Yes

On-board graphics card model

Intel Arc Graphics

On-board graphics card family

Intel Arc Graphics

Discrete graphics card model

NVIDIA GeForce RTX 4070

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

SSD interface

PCI Express 4.0

SSD form factor

M.2

Total SSDs capacity

1 TB

Number of SSDs installed

1

Combo headphone/mic port

Yes

Processor threads

22

WLAN controller manufacturer

Killer

On-board GPU manufacturer

Intel

Cable lock slot type

Kensington

Memory channels

Dual-channel

Intel® Thunderbolt 4

Yes

Thunderbolt 4 ports quantity

1

Discrete GPU manufacturer

NVIDIA

Performance-core base frequency

2.3 GHz

Efficient-core base frequency

1.8 GHz

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

4

Low Power Efficient-cores

2

Low Power Efficient-core Max Turbo Frequency

2.5 GHz

Low Power Efficient-core Base Frequency

1000 MHz

Number of discrete graphics cards

1

Line-out

Yes

DC-in jack

Yes

Number of storage drives installed

1

Chassis type

Mini PC

Display included

No

Number of storage drives supported

3

Number of processors installed

1

Number of front USB ports

2

Number of rear USB ports

4
