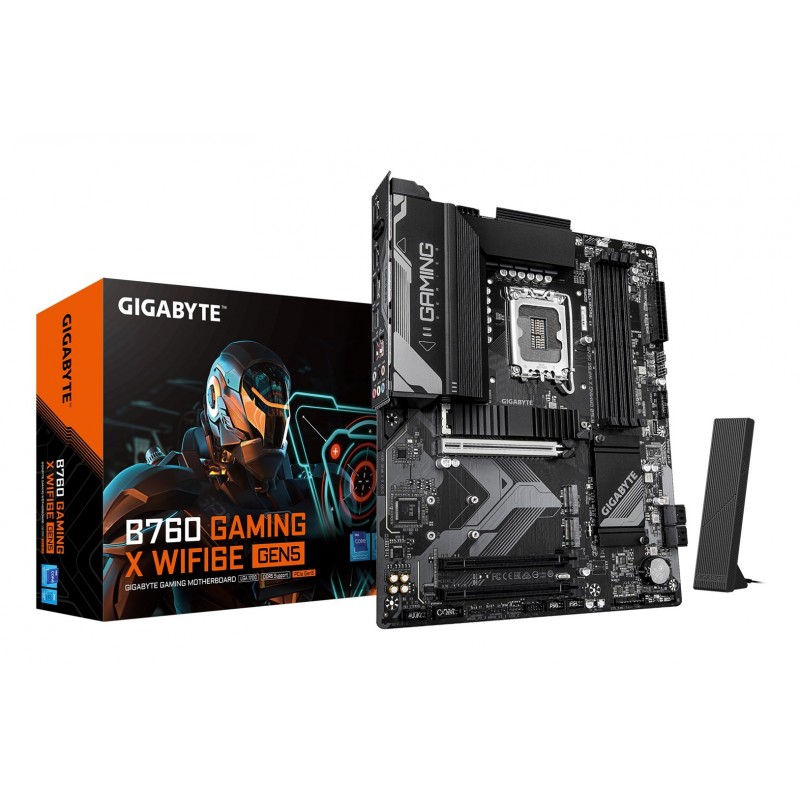

Płyta główna Gigabyte B760 GAMING X WF6E GEN5

Data sheet

Height

35 mm

Width

305 mm

Depth

244 mm

Weight

1.61 kg

Bluetooth

Yes

Bluetooth version

5.3

Battery weight

3 g

Battery type

CR2032

Wi-Fi

Yes

Audio output channels

7.1 channels

Power source type

ATX

Headphone outputs

1

Package weight

1.8 kg

USB 2.0 ports quantity

5

Package width

335 mm

Package depth

270 mm

Package height

80 mm

Microphone in

Yes

Line-in

Yes

Windows operating systems supported

Windows 10 x64
Windows 11 x64

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Wi-Fi standards

802.11a
802.11b
802.11g
Wi-Fi 4 (802.11n)
Wi-Fi 5 (802.11ac)
Wi-Fi 6 (802.11ax)
Wi-Fi 6E (802.11ax)

Ethernet LAN (RJ-45) ports

1

HDMI ports quantity

1

Number of battery cells

1

Maximum internal memory

256 GB

DisplayPorts quantity

1

Ethernet LAN

Yes

Country of origin

China

HDCP

Yes

Maximum resolution

4096 x 2304 pixels

Bundled software

Norton® Internet Security (OEM version)

HDMI version

2.1

DisplayPort version

1.2

Batteries included

Yes

Product colour

Dark brown

Processor manufacturer

Intel

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

Motherboard chipset

Intel B760

WLAN controller model

Intel Wi-Fi 6E AX210

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

1

Memory channels

Dual-channel

Audio chip

Realtek ALC897

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

Warranty period

3 year(s)

Processor socket

LGA 1700

RGB LED pin header

Yes

Screws included

Yes

Ethernet interface type

2.5 Gigabit Ethernet

Products per shipping (inner) case

1 pc(s)

RAID support

Yes

Cooling type

Passive

Number of SATA III connectors

4

Memory slots type

DIMM

Parallel processing technology support

Not supported

Motherboard form factor

ATX

Compatible processor series

Intel Core i3 12th Gen
Intel Core i3 13th Gen
Intel Core i3 14th Gen
Intel Core i5 12th Gen
Intel Core i5 13th Gen
Intel Core i5 14th Gen
Intel Core i7 12th Gen
Intel Core i7 13th Gen
Intel Core i7 14th Gen
Intel Core i9 12th Gen
Intel Core i9 13th Gen
Intel Core i9 14th Gen
Intel® Celeron®
Intel® Pentium® Gold

Supported memory types

DDR5-SDRAM

Motherboard chipset family

Intel

Number of memory slots

4

Supported memory clock speeds

4000
4800
5200
5400
5600 MHz
5800
6000
6200
6400
6600
6800 MHz
7000
7200
7400
7600

Front panel connector

Yes

USB 2.0 connectors

4

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

Front panel audio connector

Yes

Clear CMOS jumper

Yes

Supported storage drive interfaces

M.2, PCI Express 4.0, SATA III

PC health monitoring

Fan
Temperature
Voltage
Water cooling

Unbuffered memory

Yes

LAN controller

Realtek RTL8125

USB 3.2 Gen 1 (3.1 Gen 1) connectors

3

TPM connector

Yes

12V power connector

Yes

BIOS type

UEFI AMI

PCI Express x16 (Gen 3.x) slots

2

Number of chassis fan connectors

4

RAID levels

0
1
5
10

Number of storage drives supported

7

Supported storage drive types

HDD & SSD

Number of M.2 (M) slots

3

Supported processor sockets

LGA 1700

EPS power connector (8-pin)

Yes

Lithium weight per battery

0.07 g

S/PDIF out connector

Yes

Number of HDDs supported

4

Supported memory clock speed (max)

5600 MHz

Serial port headers

1

Desktop Management Interface (DMI) version

2.7

PCI Express x16 (Gen 5.x) slots

1

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

WiFi-AP antenna jack

2

Antenna included

Yes

ECC сompatibility

ECC & Non-ECC

Maximum internal memory per slot

64 GB

Number of CPU fan connectors

2

Number of water pump connectors

2

Number of EPS power connectors (8-pin)

1

Number of RGB LED pin headers

4

3rd M.2 largest key size

22110

1st M.2 largest key size

22110

3rd M.2 highest PCI Express generation

4.0

2nd M.2 largest key size

22110

2nd M.2 highest PCI Express generation

4.0

1st M.2 highest PCI Express generation

4.0
