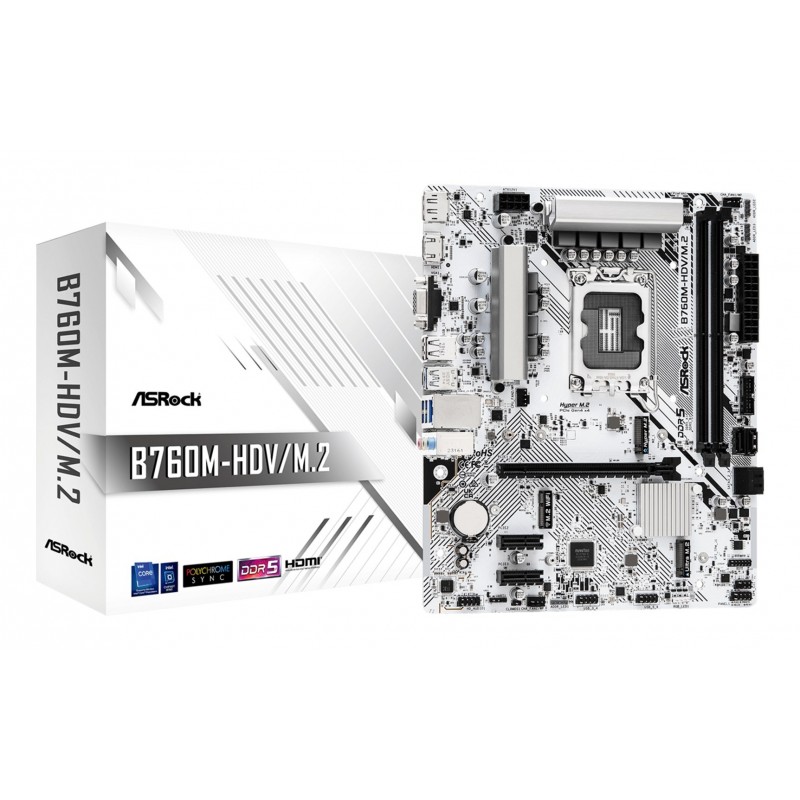

Asrock B760M-HDV/M.2 motherboard Intel B760 LGA 1700 micro ATX

Data sheet

Width

244 mm

Depth

201 mm

Wi-Fi

No

Audio output channels

7.1 channels

Cables included

SATA

USB 2.0 ports quantity

2

Microphone in

Yes

Line-in

Yes

Windows operating systems supported

Windows 10 x64
Windows 11 x64

Ethernet LAN (RJ-45) ports

1

HDMI ports quantity

1

VGA (D-Sub) ports quantity

1

Maximum internal memory

96 GB

DisplayPorts quantity

1

Ethernet LAN

Yes

DisplayPort version

1.4

Processor manufacturer

Intel

Motherboard chipset

Intel B760

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

3

Memory channels

Dual-channel

Audio chip

Realtek ALC897

Processor socket

LGA 1700

RGB LED pin header

Yes

Screws included

Yes

Ethernet interface type

2.5 Gigabit Ethernet

RAID support

Yes

Number of SATA III connectors

4

Memory slots type

DIMM

Parallel processing technology support

Not supported

Motherboard form factor

Micro ATX

Compatible processor series

Intel Core i3 12th Gen
Intel Core i3 13th Gen
Intel Core i5 12th Gen
Intel Core i5 13th Gen
Intel Core i7 12th Gen
Intel Core i7 13th Gen
Intel Core i9 12th Gen
Intel Core i9 13th Gen
Intel Core i9 14th Gen

Supported memory types

DDR5-SDRAM

Motherboard chipset family

Intel

Number of memory slots

2

USB 2.0 connectors

2

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

Front panel audio connector

Yes

Supported storage drive interfaces

M.2, SATA III

Unbuffered memory

Yes

LAN controller

Dragon RTL8125BG

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

TPM connector

Yes

BIOS type

EFI AMI

RAID levels

0
1
5
10

PCI Express x1 (Gen 3.x) slots

2

Number of M.2 (M) slots

1

PCI Express x16 (Gen 4.x) slots

1

ECC сompatibility

Non-ECC
