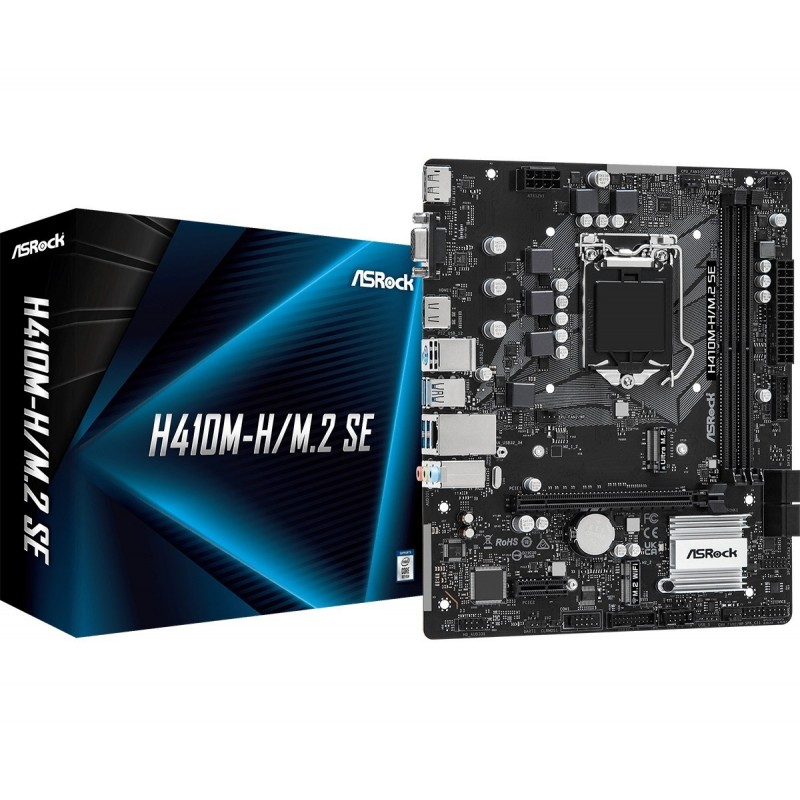

Asrock H410M-H/M.2 SE motherboard

Data sheet

Width

226 mm

Depth

188 mm

Audio output channels

7.1 channels

USB 2.0 ports quantity

2

Windows operating systems supported

Windows 10 x64
Windows 11 x64

Ethernet LAN (RJ-45) ports

1

HDMI ports quantity

1

VGA (D-Sub) ports quantity

1

Maximum internal memory

64 GB

DisplayPorts quantity

1

Ethernet LAN

Yes

Maximum resolution

4096 x 2304 pixels

Processor manufacturer

Intel

Motherboard chipset

Intel® H370

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

Memory channels

Dual-channel

Audio chip

Realtek ALC897

Processor socket

LGA 1200

Ethernet interface type

Gigabit Ethernet

Supported processors

Intel® Core™ 10th generation

RAID support

Yes

Number of SATA III connectors

4

Memory slots type

DIMM

Motherboard form factor

Micro ATX

Supported memory types

DDR4-SDRAM

Motherboard chipset family

Intel

Number of memory slots

2

Supported memory clock speeds

2133
2400
2666
2800
2933

USB 2.0 connectors

2

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

Front panel audio connector

Yes

Supported storage drive interfaces

M.2, SATA III

PS/2 ports quantity

1

Unbuffered memory

Yes

Wake-on-LAN ready

Yes

LAN controller

Realtek 8111H

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

TPM connector

Yes

12V power connector

Yes

BIOS type

UEFI

PCI Express x16 (Gen 3.x) slots

1

Number of COM connectors

1

RAID levels

0
1
5
10

Number of storage drives supported

4

PCI Express x1 (Gen 3.x) slots

1

Number of M.2 (E) slots

1
