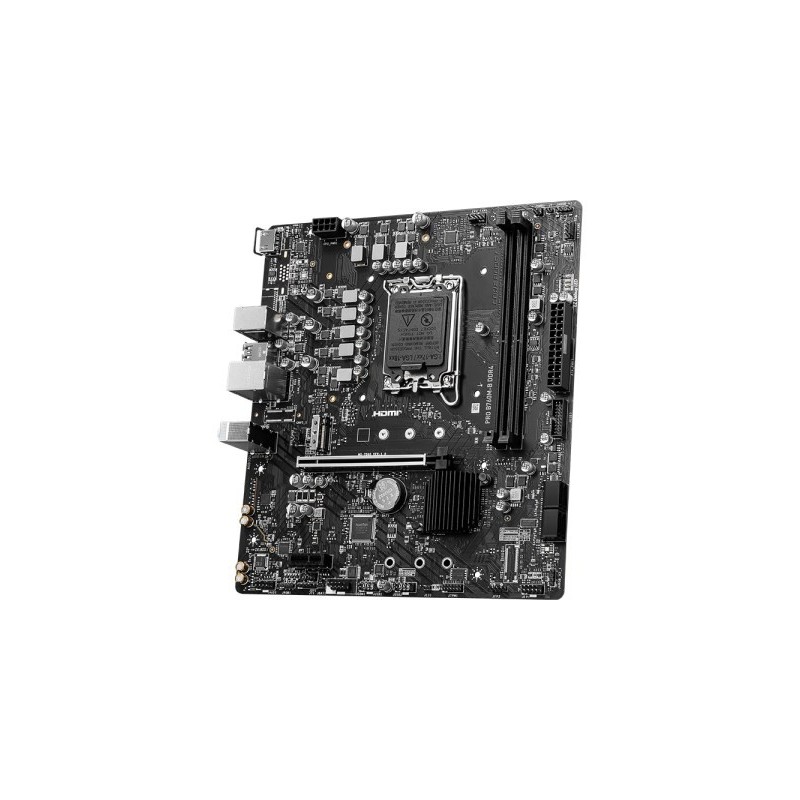

Płyta główna MSI PRO B760M-B DDR4

Data sheet

Width

220 mm

Depth

243.8 mm

Wi-Fi

No

Audio output channels

7.1 channels

Power source type

ATX

USB 2.0 ports quantity

4

Windows operating systems supported

Windows 10
Windows 11

Ethernet LAN (RJ-45) ports

1

HDMI ports quantity

1

VGA (D-Sub) ports quantity

1

Maximum internal memory

64 GB

Ethernet LAN

Yes

HDMI version

2.1

Processor manufacturer

Intel

Motherboard chipset

Intel B760

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

Memory channels

Dual-channel

Audio chip

Realtek ALC897

Processor socket

LGA 1700

RGB LED pin header

Yes

Ethernet interface type

Gigabit Ethernet

RAID support

Yes

Memory slots type

DIMM

Motherboard form factor

Micro ATX

Number of SATA connectors

4

Compatible processor series

Intel® Celeron®
Intel® Pentium® Gold

Supported memory types

DDR4-SDRAM

Maximum number of SMP processors

1

Motherboard chipset family

Intel

Number of memory slots

2

Supported memory clock speeds

2133
2400
2666
2933
3200
3333
3400
3466
3600
3733
3800
4000
4200
4266
4400
4600
4800 MHz

Front panel connector

Yes

USB 2.0 connectors

2

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

Front panel audio connector

Yes

Supported storage drive interfaces

M.2, SATA

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

TPM connector

Yes

RAID levels

0
1
5
10

Supported processor sockets

LGA 1700

Supported memory clock speed (max)

4800 MHz

PCI Express x16 slots

1

PCI Express x1 slots

1

ECC сompatibility

Non-ECC
