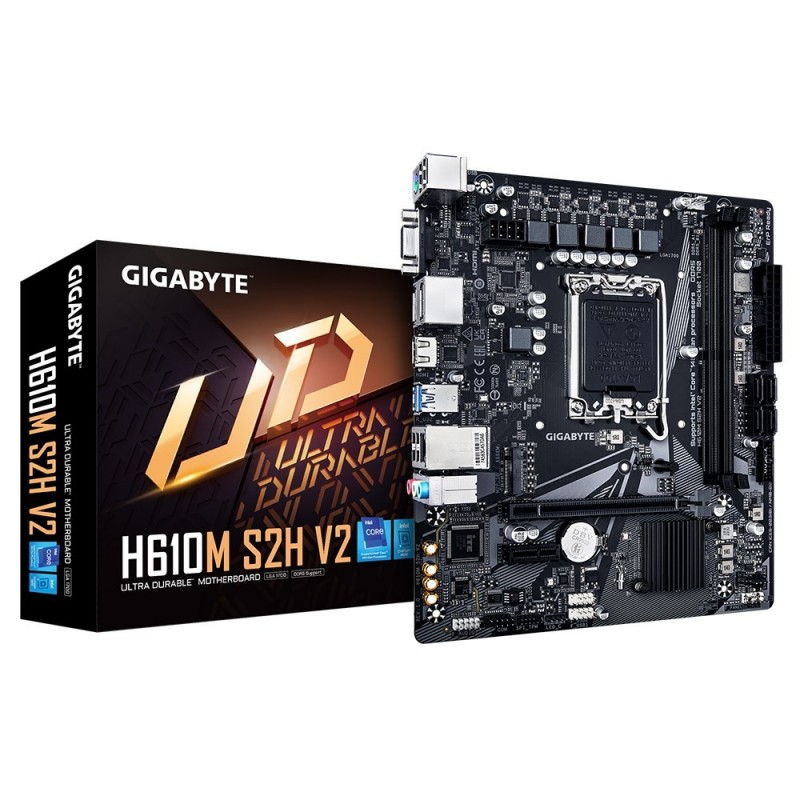

Płyta główna Gigabyte H610M S2H V2

Data sheet

Height

35 mm

Width

230 mm

Depth

215 mm

Battery weight

3 g

Battery type

CR2032

Wi-Fi

No

Audio output channels

7.1 channels

Power source type

ATX

Headphone outputs

1

Package weight

690 g

Cables included

SATA

USB 2.0 ports quantity

4

Package width

265 mm

Package depth

235 mm

Package height

52 mm

Microphone in

Yes

Windows operating systems supported

Windows 10 x64
Windows 11 x64

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Ethernet LAN (RJ-45) ports

1

HDMI ports quantity

1

Number of battery cells

1

VGA (D-Sub) ports quantity

1

Maximum internal memory

96 GB

DisplayPorts quantity

1

Ethernet LAN

Yes

Country of origin

China

HDCP

Yes

Maximum resolution

4096 x 2304 pixels

Bundled software

Norton® Internet Security (OEM version)
LAN bandwidth management software

DVI-D ports quantity

1

Batteries included

Yes

Product colour

Black

Processor manufacturer

Intel

On-board graphics card

Yes

On-board graphics card model

Intel® HD Graphics

Motherboard chipset

Intel H610 Express

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

Memory channels

Dual-channel

Audio chip

Realtek ALC897

Warranty period

3 year(s)

Graphics card family

Intel

Graphics card

HD Graphics

Processor socket

LGA 1700

RGB LED pin header

Yes

Ethernet interface type

Gigabit Ethernet

Products per shipping (inner) case

1 pc(s)

Cooling type

Active

Number of SATA III connectors

4

Memory slots type

DIMM

Motherboard form factor

Micro ATX

Compatible processor series

Intel® Celeron®
Intel® Core™ i3
Intel® Core™ i5
Intel® Core™ i7
Intel® Core™ i9
Intel® Pentium® Gold

Supported memory types

DDR5-SDRAM

Maximum number of SMP processors

1

Motherboard chipset family

Intel

Number of memory slots

2

Supported memory clock speeds

4400
4800
5200
5600

Front panel connector

Yes

USB 2.0 connectors

2

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

Front panel audio connector

Yes

Clear CMOS jumper

Yes

Supported storage drive interfaces

M.2, SATA

PS/2 ports quantity

1

PC health monitoring

Fan
LED
Temperature
Voltage
Water cooling

Unbuffered memory

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

TPM connector

Yes

12V power connector

Yes

BIOS type

UEFI AMI

Number of chassis fan connectors

2

Number of COM connectors

1

Number of storage drives supported

1

Supported storage drive types

HDD & SSD

Number of M.2 (M) slots

1

Supported processor sockets

LGA 1700

Maximum internal memory supported by processor

96 GB

Supported memory module capacities

1GB
2GB
4GB
8GB
12GB
32GB
48GB

EPS power connector (8-pin)

Yes

Lithium weight per battery

0.07 g

Number of HDDs supported

4

Supported memory clock speed (max)

5600 MHz

Serial port headers

1

Desktop Management Interface (DMI) version

2.7

PCI Express x16 slots

1

PCI Express x1 slots

1

Clear CMOS button

Yes

ECC сompatibility

ECC & Non-ECC

Warnings

Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal.

Supported DIMM module capacities

8GB
16GB
