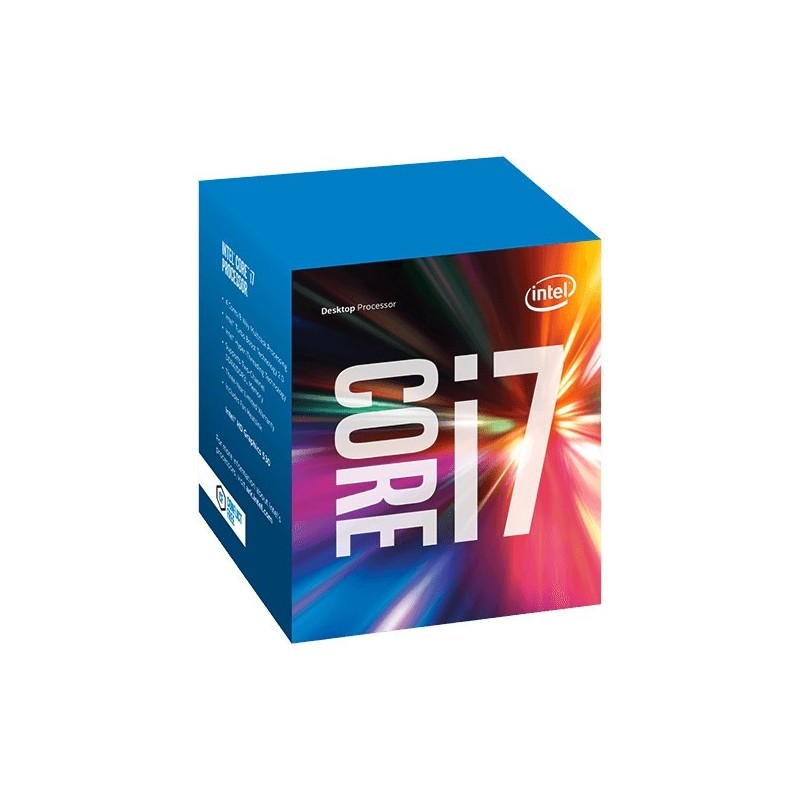

Intel Core i7-7700 processor 3.6 GHz 8 MB Smart Cache

Data sheet

Product Type

Processor

Product family

7th Generation Intel Core i7 Processors

Processor model

i7-7700

Processor family

Intel® Core™ i7

Processor cores

4

Processor boost frequency

4.2 GHz

Maximum internal memory

64 GB
65536 MB

Harmonized System (HS) code

85423119

Processor manufacturer

Intel

Processor cache type

Smart Cache

Processor generation

7th gen Intel® Core™ i7

Processor cache

8 MB
8192 KB

On-board graphics card

Yes

On-board graphics card model

Intel® HD Graphics 630

Processor threads

8

ECC

No

Execute Disable Bit

Yes

Embedded options available

Yes

Memory channels

Dual-channel

Enhanced Intel SpeedStep Technology

Yes

Intel 64

Yes

Bus type

DMI3

Intel® vPro™ Platform Eligibility

Yes

Processor operating modes

64-bit

Processor lithography

14 nm

Processor socket

LGA 1151 (Socket H4)

System bus rate

8 GT/s

PCI Express slots version

3.0

On-board graphics card OpenGL version

4.5

On-board graphics card DirectX version

12.0

Intel® Secure Key

Yes

Intel® OS Guard

Yes

Supported instruction sets

AVX 2.0
SSE4.1
SSE4.2

Processor ARK ID

97128

Thermal Monitoring Technologies

Yes

Processor package size

37.5 x 37.5 mm

Intel® AES New Instructions (Intel® AES-NI)

Yes

Intel® Hyper Threading Technology (Intel® HT Technology)

Yes

Intel® Quick Sync Video Technology

Yes

On-board graphics card 4K support

Yes

Commodity Classification Automated Tracking System (CCATS)

G077159

Intel VT-x with Extended Page Tables (EPT)

Yes

Intel Virtualization Technology (VT-x)

Yes

CPU configuration (max)

1

Intel Trusted Execution Technology

Yes

Intel Virtualization Technology for Directed I/O (VT-d)

Yes

Component for

PC

Launch date

Q1'17

PCI Express CEM revision

3.0

Market segment

Desktop

PCI Express configurations

1x8+2x4
1x16
2x8

Processor codename

Kaby Lake

Maximum number of PCI Express lanes

16

Stepping

B0

Maximum on-board graphics card memory

64 GB

Processor code

SR338

Intel® Identity Protection Technology (Intel® IPT)

Yes

Intel® InTru™ 3D Technology

Yes

Intel Secure Key Technology version

1.00

Intel Identity Protection Technology version

1.00

Intel Clear Video Technology

Yes

Intel® Clear Video HD Technology (Intel® CVT HD)

Yes

Intel Enhanced Halt State

Yes

Intel TSX-NI version

1.00

Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)

Yes

Intel Software Guard Extensions (Intel SGX)

Yes

Idle States

Yes

Intel Stable Image Platform Program (SIPP)

Yes

Maximum memory

64 GB

Thermal Design Power (TDP)

65 W

Supported memory types

DDR3L-SDRAM
DDR4-SDRAM

Maximum internal memory supported by processor

64 GB

Memory types supported by processor

DDR3L-SDRAM
DDR4-SDRAM

Maximum graphics card memory

64 GB

Export Control Classification Number (ECCN)

5A992C

Status

Launched

Box

No

Cooler included

No

On-board graphics card refresh rate at maximum resolution (DisplayPort)

60 Hz

On-board graphics card refresh rate at maximum resolution (eDP - Integrated Flat Panel)

60 Hz

On-board graphics card refresh rate at maximum resolution (HDMI)

24 Hz

On-board graphics card base frequency

350 MHz

On-board graphics card ID

0x5912

On-board graphics card dynamic frequency (max)

1150 MHz

On-board graphics card outputs supported

DisplayPort
Embedded DisplayPort (eDP)
HDMI

Number of displays supported (on-board graphics)

3

On-board graphics card maximum resolution (DisplayPort)

4096 x 2304 pixels

On-board graphics card maximum resolution (HDMI)

4096 x 2304 pixels

On-board graphics card maximum resolution (eDP - Integrated Flat Panel)

4096 x 2304 pixels

Thermal solution specification

PCG 2015C

Scalability

1S

Tjunction

100 °C

Intel® Turbo Boost Technology

2.0

Intel® Boot Guard

Yes

Intel® Optane™ Memory Ready

Yes

Memory clock speeds supported by processor

1333
1600
2133
2400

Processor base frequency

3.6 GHz

Intel® Turbo Boost Technology 2.0 frequency

4.2 GHz

Intel® Transactional Synchronization Extensions

Yes

Processor ID

0x5912

Maximum resolution & refresh rate (DisplayPort)

4096x2304@60Hz

Bus speed

8 GT/s

Generation

7th Generation

Last change

63903513

Intel® Memory Protection Extensions (Intel® MPX)

Yes

Intel TSX-NI

Yes

Intel Stable Image Platform Program (SIPP) version

1.00

Memory voltage supported by processor

1.35 V

Bus bandwidth

8

Processor brand name

7th Gen Intel Core i7 processors

Maximum resolution & refresh rate (HDMI)

4096x2304@24Hz

Bus type units

GT/s

Maximum resolution & refresh rate (Integrated Flat Panel)

4096x2304@60Hz

Video decoding

Yes
