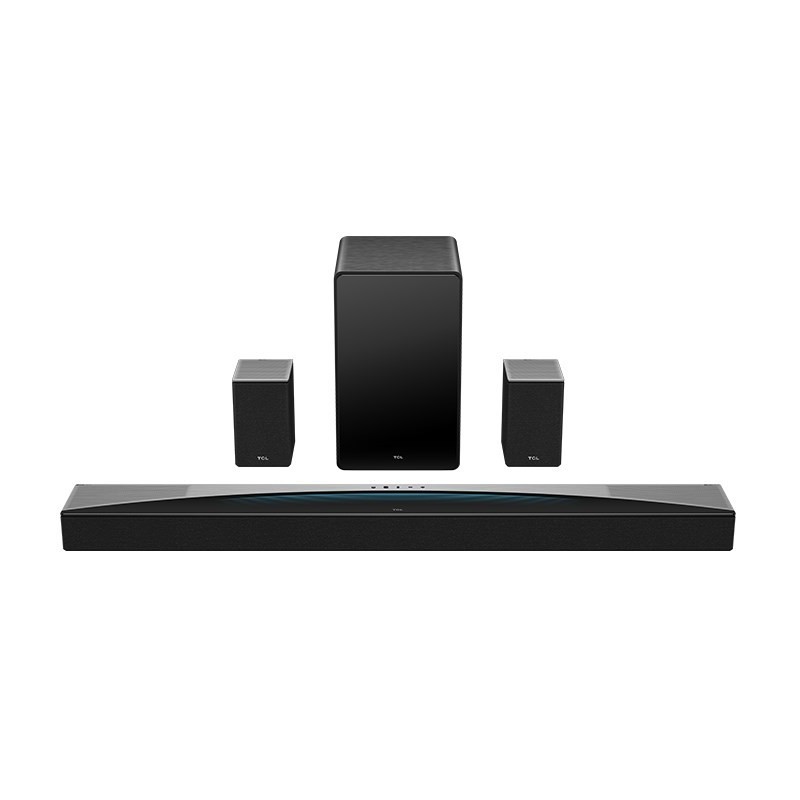

TCL Q Q85H Class 7.1.4 Channel Sound Bar with Dolby Atmos, Wireless Subwoofwer, and Wireless Surround Speakers

Data sheet

Height

58 mm

Width

1040 mm

Depth

110 mm

Bluetooth

Yes

Bluetooth version

5.3

cord length

1.5 m

Battery weight

15 g

FM Radio

No

3D

Yes

Wi-Fi

Yes

Connectivity technology

Wired & Wireless

USB port

Yes

Warranty card

Yes

RMS rated power

510 W

Audio output channels

7.1.4 channels

Subwoofer RMS power

180 W

Number of satellite speakers

2

Number of speakers

15

Package weight

17.7 kg

Bass adjustment

Yes

Subwoofer type

Active subwoofer

Cables included

AC, HDMI

AUX in

No

USB 2.0 ports quantity

1

Package width

1138 mm

Package depth

512 mm

Package height

292 mm

Subwoofer included

Yes

Wall mountable

Yes

Receiver included

Yes

Digital audio optical in

1

Mounting brackets included

Yes

Audio formats supported

FLAC
MP3
WAV
WMA

AC input voltage

100 - 240 V

Power consumption (typical)

138 W

Power consumption (standby)

2 W

Auto power off

Yes

Supported radio bands

Not supported

Built-in display

Yes

AC input frequency

50/60 Hz

Compatible memory cards

Not supported

Wi-Fi standards

802.11a
802.11b
802.11g
Wi-Fi 4 (802.11n)
Wi-Fi 5 (802.11ac)

HDMI ports quantity

2

Card reader integrated

No

Video formats supported

Not supported

Ethernet LAN

No

Quick start guide

Yes

HDMI version

2.1

Batteries included

Yes

Product colour

Titanium

Products per master (outer) case

1 pc(s)

Master (outer) case width

1138 mm

Master (outer) case height

292 mm

Master (outer) case gross weight

17.7 kg

Master (outer) case length

512 mm

Colour name

Dark titanium

High Dynamic Range (HDR) technology

Dolby Vision

Warranty period

2 year(s)

Equalizer

Yes

Products per pallet

16 pc(s)

Pallet net width

120 cm

Pallet net height

2.46 m

Pallet net weight

297.9 kg

Remote control included

Yes

Peak Music Power Output (PMPO)

860 W

Woofer diameter (imperial)

20.3 cm (8")

Audio decoders

DTS-HD Master Audio
DTS:X
Dolby Atmos
Dolby Audio
Dolby Digital
Dolby Digital Plus
Dolby MAT
Dolby Surround
Dolby TrueHD

Pallet gross weight

297.9 kg

Pallet gross length

80 cm

Products per pallet layer

8 pc(s)

Pallet gross width

120 cm

Consumer Electronics Control (CEC)

T-link

Pallet gross height

2.46 m

Master (outer) case net weight

17.7 kg

Pallet net length

80 cm

Smartphone/tablet remote support

Yes

Digital audio optical out

1

Virtual surround

Yes

Bluetooth codec

A2DP, AVRCP, SBC, AAC

Front speaker weight

6.4 kg

USB direct playback

Yes

Equalizer modes

Bass, Game, Movie, Music, Night, Sport, Standard, Treble, Voice

Apple AirPlay 2 support

Yes

Subwoofer weight

6.8 kg

Subwoofer height

36.7 cm

Subwoofer width

22 cm

Subwoofer depth

27.5 cm

Wall mounting kit

Yes

Audio Return Channel (ARC)

Yes

Number of HDMI outputs

1

HDMI in

1

Woofer diameter (subwoofer)

20.3 cm (8")

Subwoofer connectivity

Wireless

Soundbar speaker RMS power

30 W

Soundbar weight

6.4 kg

Built-in Chromecast

Yes

Enhanced Audio Return Channel (eARC)

Yes

Detachable power cord

Yes

Audio sample rate (24bit)

48 kHz

Digital Living Network Alliance (DLNA) certified

Yes

Optical disc player type

Not included

Subwoofer location

Separate

Rear speaker height

12 cm

Rear speaker depth

16.1 cm

Rear speaker width

9.7 cm

Rear speaker weight

595 g

Supported video streaming resolutions

4096 x 2160

Remote control battery technology

Alkaline

Number of pallets per truck

33 pc(s)

Quantity per truck

330 pc(s)
