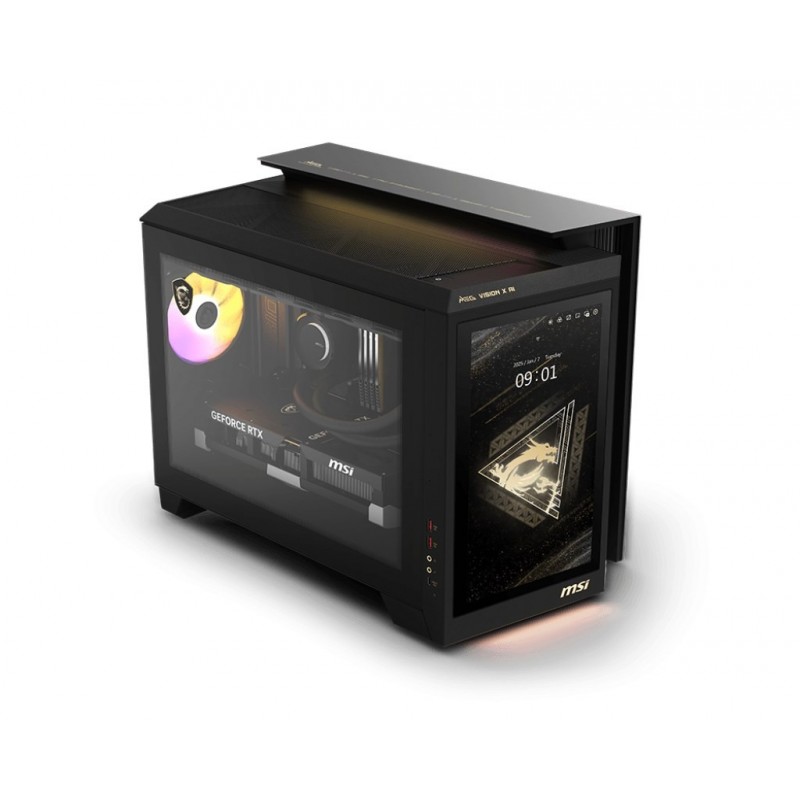

MSI MEG Vision X AI 2NVZ9-003EU Ultra 9 285K 64GB DDR5 SSD2TB GeForce RTX 5090 32GB VENTUS 3X BE200 WiFi 7+BT Win11

Data sheet

Height

423.4 mm

Width

502.7 mm

Depth

299.3 mm

Weight

18.2 kg

Bluetooth

Yes

Bluetooth version

5.4

power supply

1200 W

Product Type

PC

SSD Capacity

2 TB

Memory slots

4x DIMM

Storage temperature (T-T)

-20 - 60 °C

Operating temperature (T-T)

0 - 35 °C

Wi-Fi

Yes

Audio output channels

7.1 channels

Headphone outputs

1

Package weight

23.2 kg

Microphone in

Yes

Internal memory

64 GB

Processor model

285K

Wi-Fi standards

Wi-Fi 7 (802.11be)

Processor family

Intel Core Ultra 9

Operating system installed

Windows 11 Home

Ethernet LAN (RJ-45) ports

1

Internal memory type

DDR5-SDRAM

Processor cores

24

Storage media

SSD

Processor boost frequency

5.7 GHz

Total storage capacity

2 TB

Optical drive type

No

Discrete graphics memory type

GDDR7

Memory clock speed

5600 MHz

Memory layout (slots x size)

2 x 32 GB

Maximum internal memory

128 GB

Operating relative humidity (H-H)

0 - 85%

Ethernet LAN

Yes

Volume

42.6 L

Storage relative humidity (H-H)

0 - 90%

Product colour

Black

Performance cores

8

Processor manufacturer

Intel

Performance-core Max Turbo Frequency

5.5 GHz

Efficient cores

16

Processor cache type

Smart Cache

Processor generation

Intel Core Ultra (Series 2)

Maximum turbo power

250 W

Processor base power

125 W

Processor cache

36 MB

Efficient-core Max Turbo Frequency

4.6 GHz

Discrete graphics card

Yes

On-board graphics card

Yes

On-board graphics card model

Intel Graphics

On-board graphics card family

Intel Graphics

Discrete graphics card model

NVIDIA GeForce RTX 5090

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

SSD interface

PCI Express 5.0

SSD form factor

M.2

Total SSDs capacity

2 TB

NVMe

Yes

Number of SSDs installed

1

Processor threads

24

Motherboard chipset

Intel Z890

WLAN controller model

Killer Wi-Fi 7 BE1750

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

6

On-board GPU manufacturer

Intel

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

Audio chip

Realtek ALC1220P

Intel® Thunderbolt 4

Yes

Thunderbolt 4 ports quantity

2

Discrete graphics card memory

32 GB

Discrete GPU manufacturer

NVIDIA

Performance-core base frequency

3.7 GHz

Efficient-core base frequency

3.2 GHz

Warranty period

3 year(s)

Neural processor unit (NPU)

Intel AI Boost

Windows Studio effects support

Yes

AI software frameworks supported by NPU

DirectML
ONNX RT
OpenVINO
WebNN
Windows ML

Sparsity support

Yes

NPU performance up to

13 TOPs

Total processor performance up to

36 TOPs

M.2 SSD size

2280 (22 x 80 mm)

S/PDIF out port

Yes

Chassis type

Desktop

Display included

No

Number of 2.5" bays

1

GPU performance up to

8 TOPs

Number of 3.5" bays

1

80 PLUS certification

80 PLUS Gold
