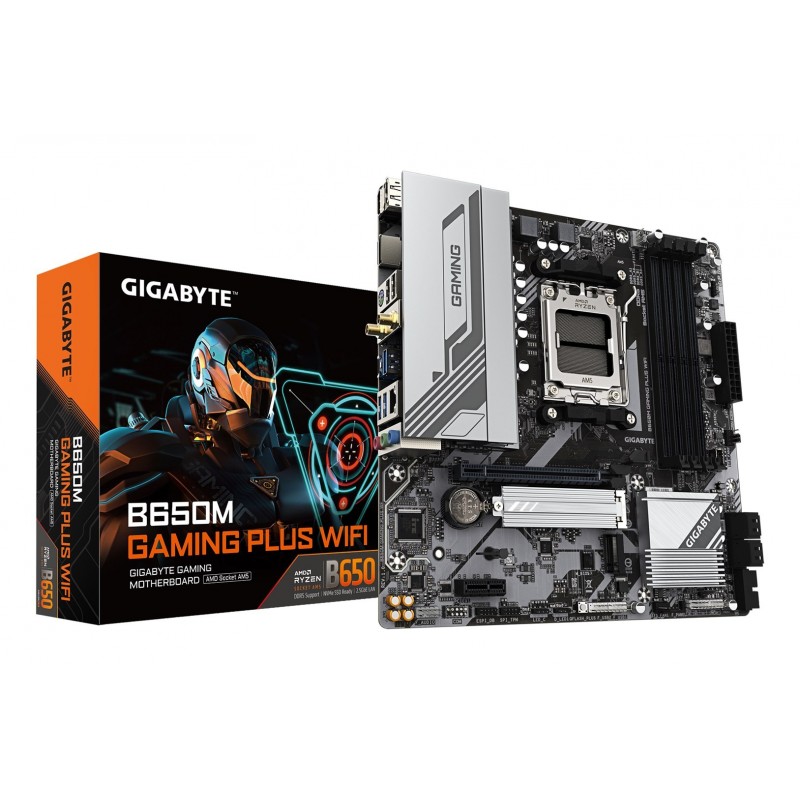

Płyta główna Gigabyte B650M GAMING PLUS WF

Data sheet

Width

244 mm

Depth

174 mm

Bluetooth

Yes

Bluetooth version

5.3

Wi-Fi

Yes

Audio output channels

7.1 channels

Power source type

ATX

USB 2.0 ports quantity

2

Windows operating systems supported

Windows 10 x64
Windows 11 x64

Wi-Fi standards

802.11a
802.11b
802.11g
Wi-Fi 4 (802.11n)
Wi-Fi 5 (802.11ac)
Wi-Fi 6 (802.11ax)
Wi-Fi 6E (802.11ax)

Ethernet LAN (RJ-45) ports

1

HDMI ports quantity

1

Maximum internal memory

256 GB

DisplayPorts quantity

2

Ethernet LAN

Yes

HDCP

Yes

Maximum resolution

4096 x 2160 pixels

HDMI version

2.1

DisplayPort version

1.4

Processor manufacturer

AMD

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

Motherboard chipset

AMD B650

WLAN controller model

Realtek RTL8852CE

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

3

Memory channels

Dual-channel

Processor socket

Socket AM5

RGB LED pin header

Yes

Ethernet interface type

2.5 Gigabit Ethernet

RAID support

Yes

Number of SATA III connectors

4

Memory slots type

DIMM

Number of audio jack connectors

3

Motherboard form factor

Micro ATX

Compatible processor series

AMD Ryzen 7000 Series
AMD Ryzen 8000 Series
AMD Ryzen 9000 Series

Supported memory types

DDR5-SDRAM

Motherboard chipset family

AMD

Number of memory slots

4

Supported memory clock speeds

4800 MHz
5200
5600
6000
6200
6400
6600
6800
7000
7200
7600
7800
8000

Front panel connector

Yes

USB 2.0 connectors

2

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

Front panel audio connector

Yes

Clear CMOS jumper

Yes

Supported storage drive interfaces

M.2, PCI Express 4.0, SATA III

PS/2 ports quantity

1

PC health monitoring

Fan
Temperature
Voltage

Unbuffered memory

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

TPM connector

Yes

BIOS type

UEFI AMI

Number of chassis fan connectors

2

RAID levels

0
1
10

Number of storage drives supported

6

Supported storage drive types

HDD & SSD

PCI Express x1 (Gen 3.x) slots

1

Number of M.2 (M) slots

2

Supported processor sockets

Socket AM5

EPS power connector (8-pin)

Yes

Number of HDDs supported

4

Supported memory clock speed (max)

8000 MHz

Desktop Management Interface (DMI) version

2.7

PCI Express x16 (Gen 4.x) slots

1

WiFi-AP antenna jack

2

ECC сompatibility

Non-ECC

Maximum internal memory per slot

64 GB

Number of CPU fan connectors

1

Number of EPS power connectors (8-pin)

1

1st M.2 largest key size

2580

2nd M.2 largest key size

22110

2nd M.2 highest PCI Express generation

4.0

1st M.2 highest PCI Express generation

4.0
