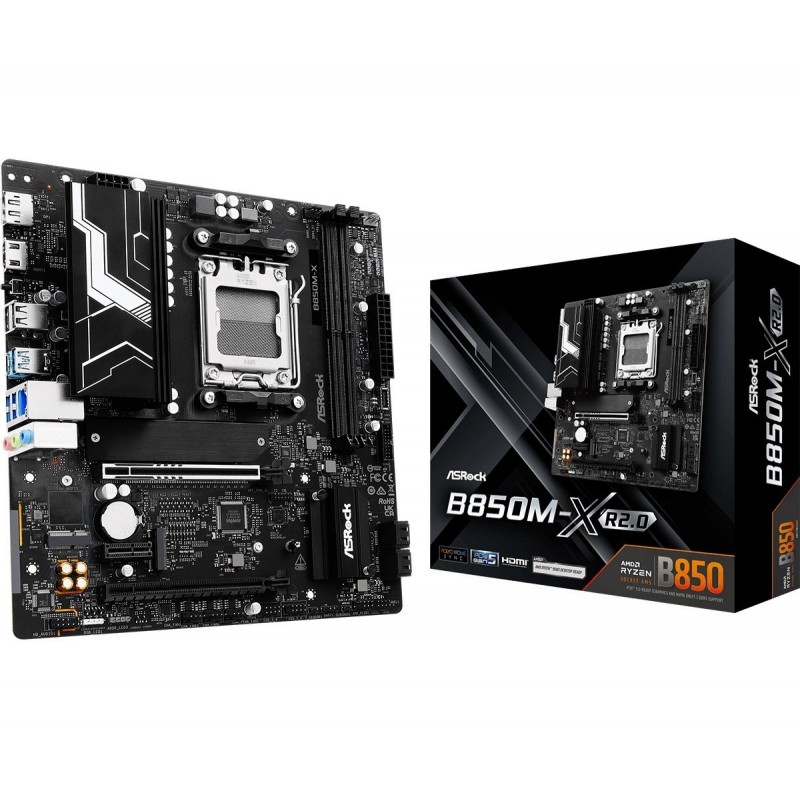

Płyta główna Asrock B850M-X R2.0

Data sheet

Width

244 mm

Depth

226 mm

Wi-Fi

No

Audio output channels

7.1 channels

Cables included

SATA

USB 2.0 ports quantity

2

Microphone in

Yes

Line-in

Yes

Audio output

3.5 mm

Windows operating systems supported

Windows 10 x64
Windows 11 x64

Ethernet LAN (RJ-45) ports

1

HDMI ports quantity

1

Maximum internal memory

128 GB

DisplayPorts quantity

1

Ethernet LAN

Yes

HDCP

Yes

Maximum resolution

3840 x 2160 pixels

Certification

FCC, CE, ErP/EuP

HDMI version

2.1

DisplayPort version

1.4

Product colour

Black

Processor manufacturer

AMD

Mobile network connection

No

Motherboard chipset

AMD B850

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

3

Memory channels

Dual-channel

Audio chip

Realtek ALC897

Processor socket

Socket AM5

USB Type-C ports quantity

1

RGB LED pin header

Yes

Screws included

Yes

Ethernet interface type

2.5 Gigabit Ethernet

RAID support

Yes

Number of SATA III connectors

4

Memory slots type

DIMM

Parallel processing technology support

Not supported

Motherboard form factor

Micro ATX

Compatible processor series

AMD Ryzen 7000 Series
AMD Ryzen 8000 Series
AMD Ryzen 9000 Series

Supported memory types

DDR5-SDRAM

Motherboard chipset family

AMD

Number of memory slots

2

USB 2.0 connectors

2

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

Front panel audio connector

Yes

Supported storage drive interfaces

PCI Express 4.0, PCI Express 5.0, SATA III

LAN controller

Dragon RTL8125BG

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

TPM connector

Yes

12V power connector

Yes

BIOS type

UEFI AMI

Number of chassis fan connectors

3

RAID levels

0
1
10

Supported storage drive types

HDD & SSD

Number of M.2 (M) slots

2

Supported processor sockets

Socket AM5

EPS power connector (8-pin)

Yes

PCI Express x16 (Gen 4.x) slots

1

PCI Express x16 (Gen 5.x) slots

1

Number of M.2 (E) slots

1

PCI Express x1 (Gen 4.x) slots

1

ECC сompatibility

ECC & Non-ECC

Number of CPU fan connectors

2

Number of EPS power connectors (8-pin)

1

Number of RGB LED pin headers

1

1st M.2 largest key size

2280

2nd M.2 largest key size

2280

2nd M.2 highest PCI Express generation

4.0

1st M.2 highest PCI Express generation

5.0

Warnings

Avoid contact with liquids to prevent electronic damage.
Dispose of in accordance with local regulations for electronic waste.
Do not disassemble to avoid damage to internal components and loss of warranty.
