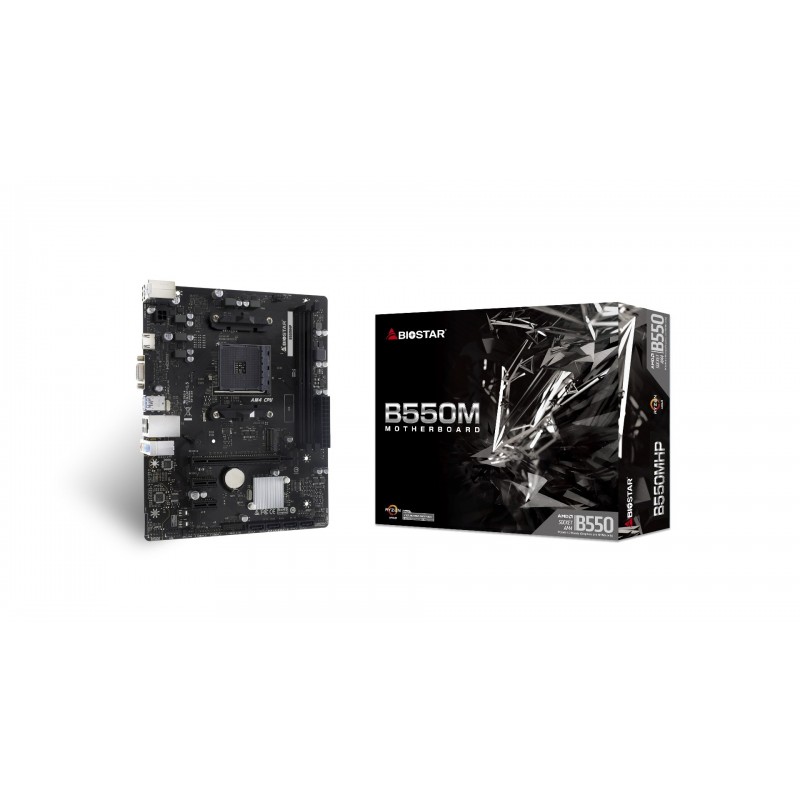

Płyta główna BIOSTAR B550MHP

Data sheet

Wi-Fi

No

Audio output channels

7.1 channels

Headphone outputs

3

USB 2.0 ports quantity

4

Compatible operating systems

Supports Windows 10(64bit)/ 11(64bit)

Ethernet LAN (RJ-45) ports

1

HDMI ports quantity

1

VGA (D-Sub) ports quantity

1

Maximum internal memory

64 GB

Ethernet LAN

Yes

Product colour

Black

Processor manufacturer

AMD

Motherboard chipset

AMD B550

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

Audio chip

Realtek ALC897

Processor socket

Socket AM4

RAID support

Yes

Number of SATA III connectors

4

Motherboard form factor

Micro ATX

Compatible processor series

AMD Ryzen 3000 Series
AMD Ryzen 4000 Series
AMD Ryzen 5000 Series

Supported memory types

DDR4-SDRAM

Motherboard chipset family

AMD

Number of memory slots

8

Peripheral (Molex) power connectors (4-pin)

1

USB 2.0 connectors

2

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

Front panel audio connector

Yes

Supported storage drive interfaces

M.2, SATA III

PS/2 ports quantity

1

LAN controller

Realtek RTL8111H

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

Audio connector

Yes

Number of chassis fan connectors

1

Number of COM connectors

1

RAID levels

0
1
10

Supported processor sockets

Socket AM4

Power fan connector

Yes

Clear CMOS button

Yes

Number of CPU fan connectors

1
