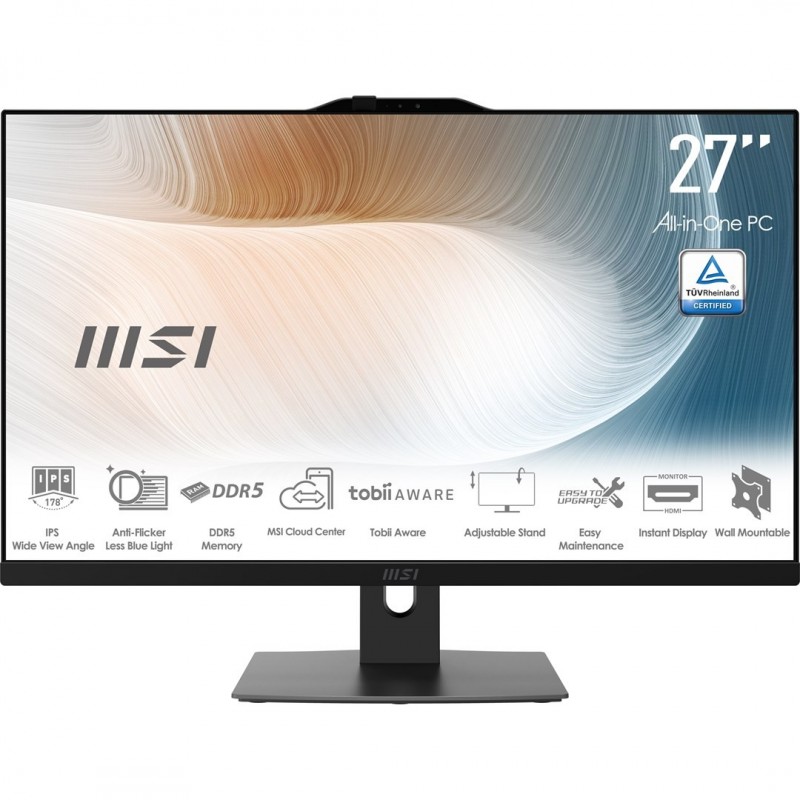

MSI AIO Modern AM272P 1M-1098EU Core5-120U 27" IPS LED FHD Non-Touch Anti-Glare 8GB SSD500GB M.2 AX211 WiFi 6E Windows

Data sheet

Bluetooth

Yes

Bluetooth version

5.3

Product Type

All-in-One PC

touchscreen

No

SSD Capacity

500 GB

Memory slots

2

Panel type

IPS

Display surface

Matt

Storage temperature (T-T)

-20 - 60 °C

Built-in camera

Yes

Built-in speaker(s)

Yes

Operating temperature (T-T)

0 - 35 °C

Wi-Fi

Yes

RMS rated power

5 W

Number of speakers

2

Package weight

9.85 kg

USB 2.0 ports quantity

2

Depth (with stand)

194.7 mm

Package width

712 mm

Package depth

200 mm

Package height

482 mm

Internal memory

8 GB

Display diagonal

68.6 cm (27")

Processor model

120U

Wi-Fi standards

Wi-Fi 6E (802.11ax)

Processor family

Intel Core 5

Operating system installed

Windows 11 Pro

Ethernet LAN (RJ-45) ports

1

Internal memory type

DDR5-SDRAM

Processor cores

10

HD type

Full HD

HDMI ports quantity

2

Storage media

SSD

Processor boost frequency

5 GHz

Total storage capacity

500 GB

Operating system architecture

64-bit

Memory clock speed

5600 MHz

Memory layout (slots x size)

1 x 8 GB

Maximum internal memory

64 GB

Operating relative humidity (H-H)

0 - 85%

Audio system

HD

Ethernet LAN

Yes

Height (with stand)

561.5 mm

Storage relative humidity (H-H)

0 - 90%

Width (with stand)

611.8 mm

VESA mounting

Yes

Display brightness

300 cd/m²

Tilt adjustment

Yes

Cable lock slot

Yes

HDMI version

2.1

Product colour

Black

Performance cores

2

Processor manufacturer

Intel

Performance-core Max Turbo Frequency

5 GHz

Efficient cores

8

Processor cache type

Smart Cache

Processor generation

Intel Core (Series 1)

Maximum turbo power

55 W

Processor base power

15 W

Processor cache

12 MB

Efficient-core Max Turbo Frequency

3.8 GHz

Discrete graphics card

No

On-board graphics card

Yes

On-board graphics card model

Intel Graphics

On-board graphics card family

Intel Graphics

Discrete graphics card model

Not available

AC adapter power

120 W

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

Mobile network connection

No

Display resolution

1920 x 1080 pixels

SSD interface

PCI Express 4.0

SSD form factor

M.2

Total SSDs capacity

500 GB

NVMe

Yes

Number of SSDs installed

1

Combo headphone/mic port

Yes

Processor threads

12

Motherboard chipset

Intel SoC

WLAN controller manufacturer

Intel

WLAN controller model

Intel Wi-Fi 6E AX211

On-board GPU manufacturer

Intel

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

2

Cable lock slot type

Kensington

Audio chip

Realtek ALC256

Performance-core base frequency

1.4 GHz

Efficient-core base frequency

0.9 GHz

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

Market positioning

Business

Weight (with stand)

7.5 kg

Panel mounting interface

75 x 75 mm

Tilt angle range

-4 - 20°

M.2 SSD size

2280 (22 x 80 mm)

Memory slots type

SO-DIMM

Warnings

Do not open the appliance housing, risk of electric shock.
Do not use in damp areas.
The device should only be disposed of in accordance with local electro-waste regulations.
