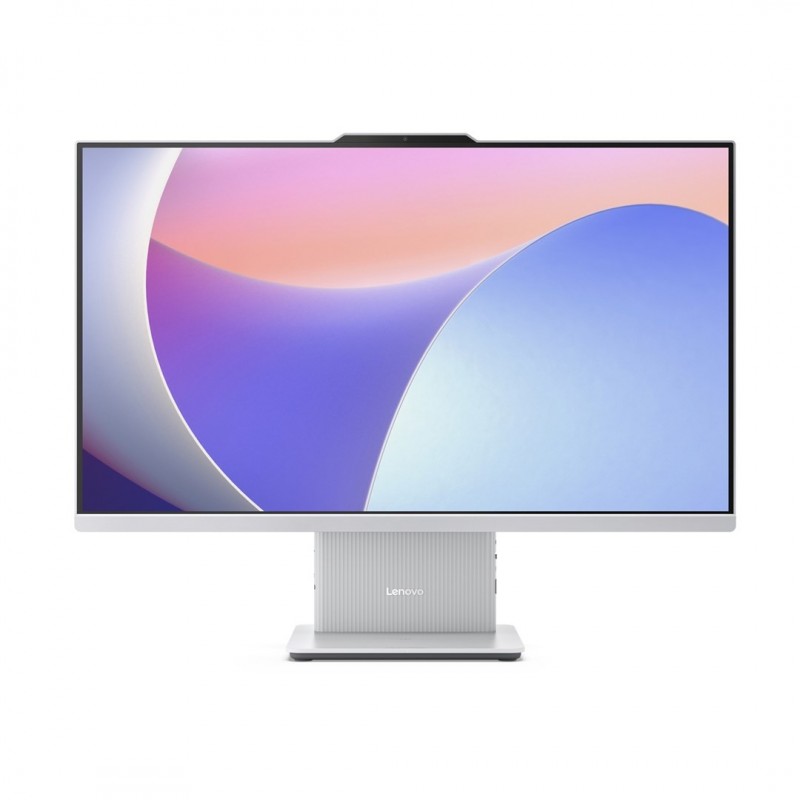

Lenovo IdeaCentre AIO 27ARR9 AMD Ryzen™ 5 7535HS 68.6 cm (27") 1920 x 1080 pixels All-in-One PC 16 GB DDR5-SDRAM 512

Data sheet

Bluetooth

Yes

Bluetooth version

5.2

Product Type

All-in-One PC

touchscreen

No

SSD Capacity

512 GB

Memory slots

2

Panel type

IPS

Storage temperature (T-T)

-20 - 60 °C

Built-in microphone

Yes

Built-in camera

Yes

Built-in speaker(s)

Yes

Operating temperature (T-T)

5 - 35 °C

Operating altitude

0 - 3048 m

Wi-Fi

Yes

RMS rated power

6 W

Number of speakers

2

USB 2.0 ports quantity

2

Depth (with stand)

192 mm

Internal memory

16 GB

Display diagonal

68.6 cm (27")

Processor model

7535HS

Wi-Fi standards

Wi-Fi 6 (802.11ax)

Processor family

AMD Ryzen™ 5

Processor frequency

3.3 GHz

Operating system installed

Windows 11 Home

Ethernet LAN (RJ-45) ports

1

Internal memory type

DDR5-SDRAM

Processor cores

6

HD type

Full HD

Keyboard language

US International

HDMI ports quantity

2

Storage media

SSD

Processor boost frequency

4.55 GHz

Total storage capacity

512 GB

Card reader integrated

No

Operating system architecture

64-bit

WWAN

Not installed

Memory clock speed

4800 MHz

Memory layout (slots x size)

2 x 8 GB

Maximum internal memory

16 GB

Operating relative humidity (H-H)

20 - 80%

Ethernet LAN data rates

100
1000 Mbit/s

Ethernet LAN

Yes

Height (with stand)

473.2 mm

Storage relative humidity (H-H)

10 - 90%

Non-operating altitude

0 - 12192 m

Width (with stand)

611.7 mm

Display brightness

300 cd/m²

Native aspect ratio

16:9

Product colour

Grey

Sustainability certificates

ENERGY STAR

Processor manufacturer

AMD

Processor cache type

L3

Processor generation

AMD Ryzen 7000 Series

Processor base power

35 W

Processor cache

16 MB

Discrete graphics card

No

On-board graphics card

Yes

On-board graphics card model

AMD Radeon 660M

On-board graphics card family

AMD Radeon

Discrete graphics card model

Not available

Memory form factor

DIMM/SO-DIMM

AC adapter power

135 W

AC adapter frequency

50 - 60 Hz

AC adapter input voltage

100 - 240 V

Top Wi-Fi standard

Wi-Fi 6 (802.11ax)

Antenna type

2x2

Anti-glare screen

Yes

RGB colour space

sRGB

Colour gamut

99%

Display resolution

1920 x 1080 pixels

SSD interface

PCI Express 4.0

SSD form factor

M.2

Total SSDs capacity

512 GB

NVMe

Yes

Number of SSDs installed

1

Combo headphone/mic port

Yes

Processor threads

16

Motherboard chipset

AMD SoC

Colour name

Cloud Grey

Trusted Platform Module (TPM)

Yes

Keyboard included

Yes

On-board GPU manufacturer

AMD

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

Trusted Platform Module (TPM) version

2.0

Audio chip

Realtek ALC233-CG

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

Mouse included

Yes

Weight (with stand)

7.1 kg

Keyboard connectivity

Wireless

Memory slots type

SO-DIMM

Total megapixels

5 MP

Mouse connectivity

Wireless

Warnings

Do not open the appliance housing, risk of electric shock.
Do not use in damp areas.
The device should only be disposed of in accordance with local electro-waste regulations.
