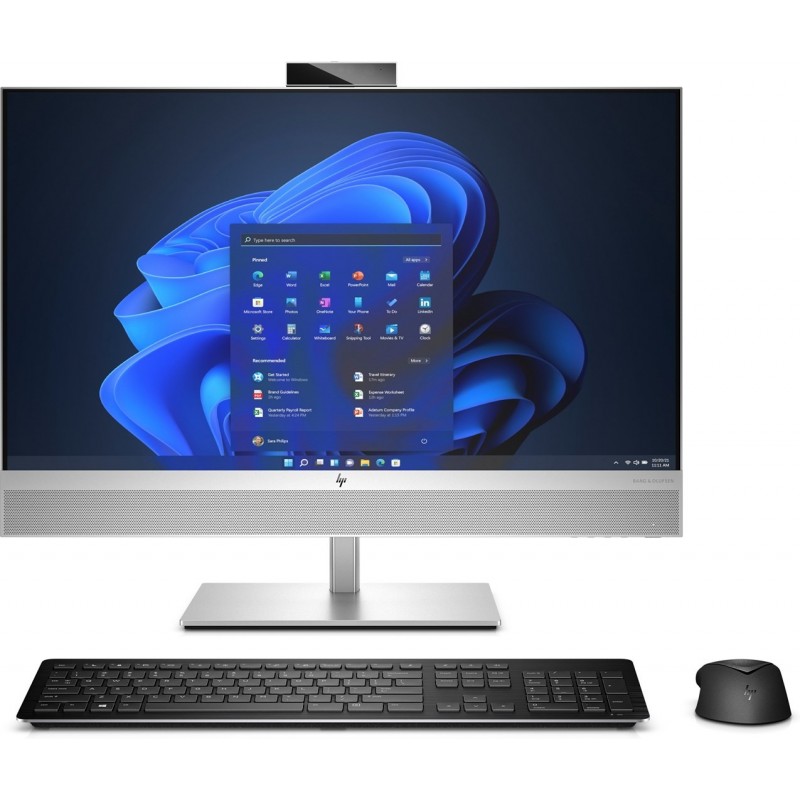

HP ELITEONE 870 G9 AIO I7-12700 27"FHD 250NITS MATT 16GB DDR5 4800 SSD512 UHD GRAPHICS 770 W11PRO

Data sheet

Weight

8.9 kg

Bluetooth

Yes

Bluetooth version

5.2

Product Type

All-in-One PC

touchscreen

No

SSD Capacity

512 GB

Memory slots

1

Panel type

IPS

Built-in microphone

Yes

Built-in camera

Yes

Built-in speaker(s)

Yes

Wi-Fi

Yes

Number of speakers

2

Depth (with stand)

247 mm

Package width

742 mm

Package depth

237 mm

Package height

640 mm

Internal memory

16 GB

Display diagonal

68.6 cm (27")

Processor model

i7-12700

Wi-Fi standards

Wi-Fi 6E (802.11ax)

Processor family

Intel® Core™ i7

Processor frequency

2.1 GHz

Operating system installed

Windows 11 Pro

Ethernet LAN (RJ-45) ports

1

Internal memory type

DDR5-SDRAM

Processor cores

12

HD type

Full HD

HDMI ports quantity

1

Storage media

SSD

Processor boost frequency

4.9 GHz

Total storage capacity

512 GB

Card reader integrated

Yes

Memory clock speed

4800 MHz

Memory layout (slots x size)

1 x 16 GB

Maximum internal memory

64 GB

DisplayPorts quantity

1

Ethernet LAN data rates

10
100 Mbit/s
1000

Audio system

B&O PLAY

Ethernet LAN

Yes

Height (with stand)

599.5 mm

Width (with stand)

614 mm

Display brightness

250 cd/m²

Native aspect ratio

16:9

Speakers manufacturer

Bang & Olufsen

HDMI version

2.0a

Display diagonal (metric)

68.6 cm

Product colour

Silver

Sustainability certificates

ENERGY STAR
TCO

Processor manufacturer

Intel

Processor cache type

L3

Processor generation

12th gen Intel® Core™ i7

Processor cache

25 MB

Discrete graphics card

No

On-board graphics card

Yes

On-board graphics card model

Intel UHD Graphics 770

On-board graphics card family

Intel® UHD Graphics

Discrete graphics card model

Not available

Memory form factor

DIMM/SO-DIMM

AC adapter frequency

50 - 60 Hz

AC adapter input voltage

100 - 240 V

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

Antenna type

2x2

Anti-glare screen

Yes

RGB colour space

NTSC

Colour gamut

72%

Display resolution

1920 x 1080 pixels

SSD interface

PCI Express

Total SSDs capacity

512 GB

NVMe

Yes

Number of SSDs installed

1

Combo headphone/mic port

Yes

Processor threads

20

Motherboard chipset

Intel Q670

Introduction month

7

Introduction year

2022

Trusted Platform Module (TPM)

Yes

WLAN controller manufacturer

Intel

WLAN controller model

Intel Wi-Fi 6E AX211

Keyboard included

Yes

Pre-installed software

HP Audio Switch; HP Documentation; HP Setup Integrated OOBE Win10; HP Support Assistant; HP System Event Utility; McAfee LiveSafe™; Buy Office (sold separately); HP JumpStarts; Xerox® DocuShare® 90 da

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

HP segment

Business

HP Security tools

Padlock loop; Trusted Platform Module (TPM) 2.0; Integrated accessories cable lock; Slim cable lock

HP speaker type

HP Dual Speakers

HP front camera

HP Webcam

Sustainability compliance

Yes

Execute Disable Bit

Yes

Embedded options available

No

Low halogen

Yes

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

Infrared (IR) camera

Yes

Sustainable technologies and materials

Mercury free

Trusted Platform Module (TPM) version

2.0

Number of free internal memory expansion slots

1

HP Support Assistant

Yes

HP Management tools

HP Client Catalog; HP Power Manager; HP Client Management Script Library (download); HP Driver Packs (download); HP Image Assistant Gen5 (download); HP Patch Assistant (download); HP Cloud Recovery; H

Enhanced Intel SpeedStep Technology

Yes

Intel 64

Yes

Bus type

DMI4

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

3

Intel® vPro™ Platform Eligibility

Yes

Mouse included

Yes

USB 3.2 Gen 2x2 Type-C ports quantity

1

Market positioning

Business

Intel VT-x with Extended Page Tables (EPT)

Yes

Intel Virtualization Technology (VT-x)

Yes

CPU configuration (max)

1

Intel Trusted Execution Technology

Yes

Intel Virtualization Technology for Directed I/O (VT-d)

Yes

Weight (with stand)

9.28 kg

Keyboard connectivity

Wireless

Number of storage drives installed

1

Chassis type

All-in-One

Memory slots type

SO-DIMM

Idle States

Yes

Intel Stable Image Platform Program (SIPP)

Yes

Display included

Yes
