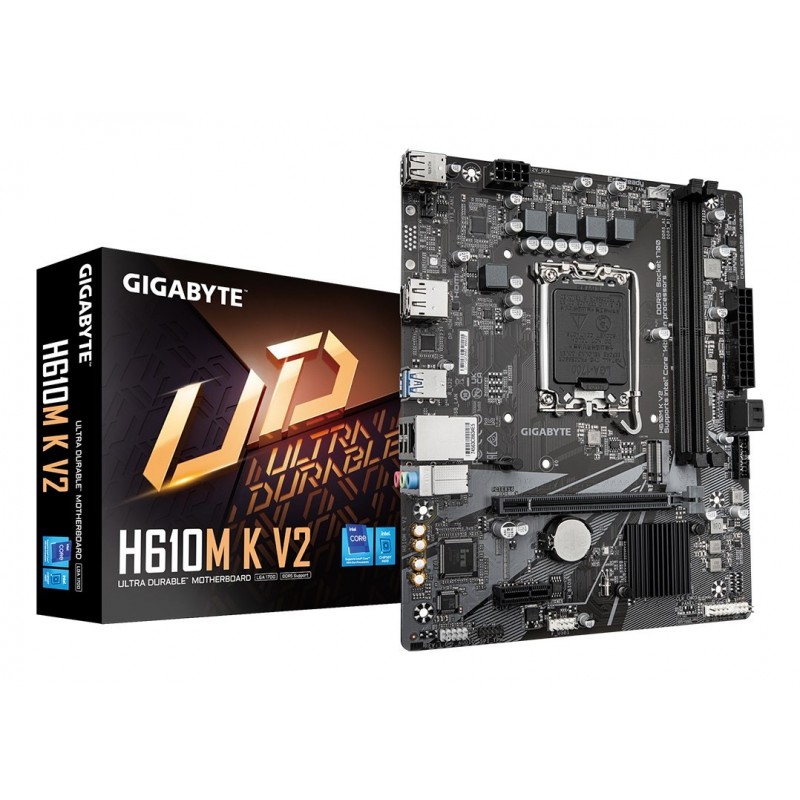

GIGABYTE H610M K V2 Motherboard - Intel Core 14th CPUs, up to 5600MHz DDR5, 1xPCIe 3.0 M.2, 1GbE LAN, USB 3.2 Gen 1

Lisainfo

Height

35 mm

Width

226 mm

Depth

185 mm

Kaal

650 g

Battery weight

3 g

Aku tüüp

CR2032

Wi-Fi

No

Heli väljundkanalid

7.1 channels

Toiteallika tüüp

ATX

Kõrvaklappide väljundid

1

Paki kaal

723 g

USB 2.0 portide kogus

4

Pakendi laius

265 mm

Pakendi sügavus

235 mm

Pakendi kõrgus

52 mm

Mikrofon sees

Yes

Line-in

Yes

Toetatud Windowsi operatsioonisüsteemid

Windows 10 x64
Windows 11 x64

Aku tehnoloogia

Lithium-Manganese Dioxide (LiMnO2)

Etherneti LAN (RJ-45) pordid

1

HDMI-portide arv

1

Akuelementide arv

1

Maksimaalne sisemälu

128 GB

DisplayPortide kogus

1

Etherneti LAN

Yes

HDCP

Yes

Maksimaalne eraldusvõime

4096 x 2160 pixels

HDMI versioon

2.1

DisplayPort versioon

1.2

Patareid kaasas

Yes

Toote värv

Dark brown

Protsessori tootja

Intel

Emaplaadi kiibistik

Intel H610

USB 3.2 Gen 1 (3.1 Gen 1) A-tüüpi portide arv

2

Mälu kanalid

Dual-channel

Heli kiip

Realtek ALC897

Garantiiaeg

3 year(s)

Protsessori pesa

LGA 1700

Screws included

Yes

Ethernet interface type

Gigabit Ethernet

Products per shipping (inner) case

1 pc(s)

Jahutustüüp

Passive

SATA III pistikute arv

2

Mälupesade tüüp

DIMM

Parallel processing technology support

Not supported

DirectX version

12.0

Motherboard form factor

Micro ATX

Compatible processor series

Intel Core i3 12th Gen
Intel Core i3 13th Gen
Intel Core i3 14th Gen
Intel Core i5 12th Gen
Intel Core i5 13th Gen
Intel Core i5 14th Gen
Intel Core i7 12th Gen
Intel Core i7 13th Gen
Intel Core i7 14th Gen
Intel Core i9 12th Gen
Intel Core i9 13th Gen
Intel Core i9 14th Gen
Intel® Celeron®
Intel® Pentium® Gold

Supported memory types

DDR5-SDRAM

Motherboard chipset family

Intel

Number of memory slots

2

Supported memory clock speeds

4400 MHz
4800
5200
5600

Front panel connector

Yes

USB 2.0 connectors

1

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

Front panel audio connector

Yes

Clear CMOS jumper

Yes

Supported storage drive interfaces

M.2, PCI Express 3.0, SATA III

PC health monitoring

Fan
Temperature
Voltage
Water cooling

Unbuffered memory

Yes

LAN controller

Realtek RTL8111H

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

TPM connector

Yes

BIOS type

UEFI AMI

Number of storage drives supported

3

Supported storage drive types

HDD & SSD

PCI Express x1 (Gen 3.x) slots

1

Number of M.2 (M) slots

1

Supported processor sockets

LGA 1700

EPS power connector (8-pin)

Yes

Lithium weight per battery

0.07 g

Number of HDDs supported

2

Supported memory clock speed (max)

5600 MHz

Desktop Management Interface (DMI) version

2.7

PCI Express x16 (Gen 4.x) slots

1

ECC сompatibility

ECC & Non-ECC

Maximum internal memory per slot

64 GB

Number of CPU fan connectors

1

Number of EPS power connectors (8-pin)

1

1st M.2 largest key size

2280

1st M.2 highest PCI Express generation

3.0
