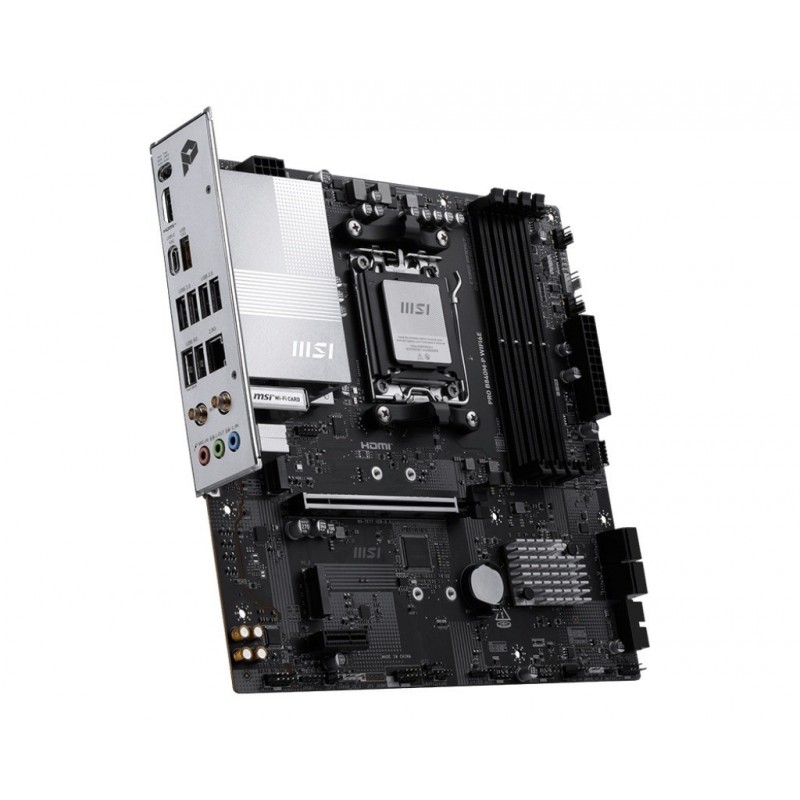

Płyta główna MSI PRO B840M-P WIFI6E

Lisainfo

Width

243.8 mm

Depth

243.8 mm

Bluetooth

Jah

Bluetoothi ​​versioon

5.3

Wi-Fi

Yes

Heli väljundkanalid

7.1 channels

Toiteallika tüüp

ATX

USB 2.0 portide kogus

4

Toetatud Windowsi operatsioonisüsteemid

Windows 11 x64

Wi-Fi standardid

802.11a
802.11ac
802.11g
802.11n
Wi-Fi 6 (802.11ax)

Etherneti LAN (RJ-45) pordid

1

HDMI-portide arv

1

Maksimaalne sisemälu

256 GB

Etherneti LAN

Yes

HDMI versioon

2.1

Protsessori tootja

AMD

Parim Wi-Fi standard

Wi-Fi 6E (802.11ax)

Emaplaadi kiibistik

AMD B840

USB 3.2 Gen 1 (3.1 Gen 1) A-tüüpi portide arv

2

USB 3.2 Gen 2 (3.1 Gen 2) C-tüüpi portide arv

1

Mälu kanalid

Dual-channel

USB 3.2 Gen 2 (3.1 Gen 2) A-tüüpi portide arv

1

Protsessori pesa

Socket AM5

RGB LED pin header

Yes

Ethernet interface type

2.5 Gigabit Ethernet

RAID support

Yes

SATA III pistikute arv

4

SATA-pistikute koguarv

4

Quick installation guide

Yes

Motherboard form factor

Micro ATX

Compatible processor series

AMD Ryzen 7000 Series
AMD Ryzen 8000 Series
AMD Ryzen 9000 Series

Supported memory types

DDR5-SDRAM

Motherboard chipset family

AMD

Number of memory slots

4

Supported memory clock speeds

4800
5600
6400
8000

Front panel connector

Yes

USB 2.0 connectors

4

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

Front panel audio connector

Yes

Supported storage drive interfaces

M.2, SATA III

Unbuffered memory

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

3

TPM connector

Yes

RAID levels

0
1
10

Number of storage drives supported

6

Supported storage drive types

HDD & SSD

Number of M.2 (M) slots

2

Supported processor sockets

Socket AM5

Number of HDDs supported

4

Supported memory clock speed (max)

8000 MHz

PCI Express x16 slots

1

PCI Express x1 slots

1

Clear CMOS button

Yes

Antenna included

Yes

ECC сompatibility

Non-ECC

Number of RGB LED pin headers

4

1st M.2 largest key size

2280

2nd M.2 largest key size

2280

2nd M.2 highest PCI Express generation

4.0

1st M.2 highest PCI Express generation

4.0
