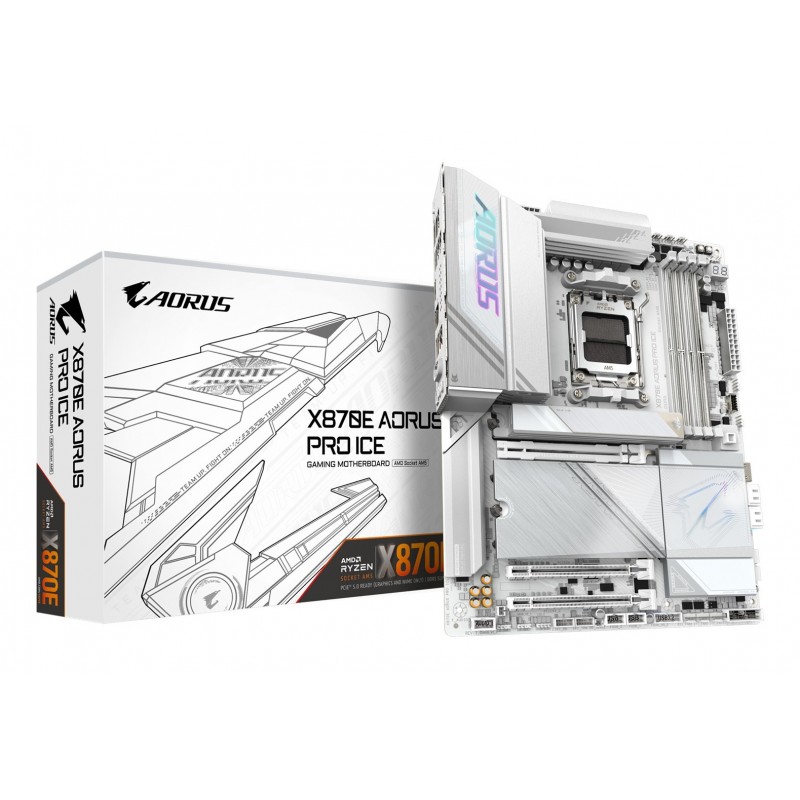

Płyta główna Gigabyte X870E AORUS PRO ICE

Lisainfo

Height

35 mm

Width

305 mm

Depth

244 mm

Kaal

2.4 kg

Bluetooth

Jah

Bluetoothi ​​versioon

5.3

Battery weight

3 g

Aku tüüp

CR2032

Wi-Fi

Yes

Heli väljundkanalid

7.1 channels

Kõrvaklappide väljundid

1

Paki kaal

2.74 kg

USB 2.0 portide kogus

2

Pakendi laius

345 mm

Pakendi sügavus

294 mm

Pakendi kõrgus

80 mm

Mikrofon sees

Yes

Toetatud Windowsi operatsioonisüsteemid

Windows 11 x64

Aku tehnoloogia

Lithium-Manganese Dioxide (LiMnO2)

Wi-Fi standardid

Wi-Fi 7 (802.11be)

Etherneti LAN (RJ-45) pordid

1

HDMI-portide arv

1

Akuelementide arv

1

Maksimaalne sisemälu

256 GB

Etherneti LAN

Yes

Päritoluriik

China

Komplekti kuuluv tarkvara

Norton® Internet Security (OEM version)
LAN bandwidth management software

HDMI versioon

2.1

DisplayPort versioon

1.4

Patareid kaasas

Yes

Toote värv

White

Protsessori tootja

AMD

Sisseehitatud graafikakaart

No

Parim Wi-Fi standard

Wi-Fi 7 (802.11be)

Emaplaadi kiibistik

AMD X870E

WLAN-i kontrolleri mudel

Qualcomm QCNCM865

USB 3.2 Gen 1 (3.1 Gen 1) A-tüüpi portide arv

4

Mälu kanalid

Dual-channel

Heli kiip

Realtek ALC1220

USB 3.2 Gen 2 (3.1 Gen 2) A-tüüpi portide arv

3

Garantiiaeg

3 year(s)

Protsessori pesa

Socket AM5

RGB LED pin header

Yes

Screws included

Yes

Ethernet interface type

2.5 Gigabit Ethernet

Products per shipping (inner) case

1 pc(s)

USB4 Gen 2x2 ports quantity

2

RAID support

Yes

S/PDIF väljundport

Yes

SATA III pistikute arv

4

Mälupesade tüüp

DIMM

Parallel processing technology support

Not supported

DirectX version

12.0

Motherboard form factor

ATX

Compatible processor series

AMD Ryzen 7000 Series
AMD Ryzen 8000 Series
AMD Ryzen 9000 Series

Supported memory types

DDR5-SDRAM

Motherboard chipset family

AMD

Number of memory slots

4

Supported memory clock speeds

4400
4800
5600
6000
6200
6400
6600
6800
7000 MHz
7600
7800
8000
8200 MHz

USB 2.0 connectors

2

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

Front panel audio connector

Yes

Clear CMOS jumper

Yes

Supported storage drive interfaces

M.2, SATA III

PC health monitoring

Fan
Temperature
Voltage

Unbuffered memory

Yes

LAN controller

Realtek RTL8125

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

TPM connector

Yes

Audio connector

Yes

BIOS type

UEFI AMI

PCI Express x16 (Gen 3.x) slots

1

Number of chassis fan connectors

6

RAID levels

0
1
10

Number of storage drives supported

8

Supported storage drive types

HDD & SSD

Number of M.2 (M) slots

4

Supported processor sockets

Socket AM5

Maximum internal memory supported by processor

256 GB

Supported memory module capacities

1GB
2GB
4GB
8GB
12GB
24GB
32GB

EPS power connector (8-pin)

Yes

Lithium weight per battery

0.07 g

Number of HDDs supported

4

Supported memory clock speed (max)

8200 MHz

Desktop Management Interface (DMI) version

2.7

PCI Express x16 (Gen 4.x) slots

1

Clear CMOS button

Yes

PCI Express x16 (Gen 5.x) slots

1

WiFi-AP antenna jack

2

Antenna included

Yes

USB 3.2 Gen 2x2 connectors

1

PCI Express x4 slots

2

ECC сompatibility

Non-ECC

Maximum internal memory per slot

64 GB

Number of CPU fan connectors

2

Number of water pump connectors

2

Number of EPS power connectors (8-pin)

2

Number of RGB LED pin headers

4

3rd M.2 largest key size

22110

1st M.2 largest key size

25110

3rd M.2 highest PCI Express generation

5.0

2nd M.2 largest key size

22110

2nd M.2 highest PCI Express generation

5.0

1st M.2 highest PCI Express generation

5.0

4th M.2 largest key size

22110

4th M.2 highest PCI Express generation

4.0
