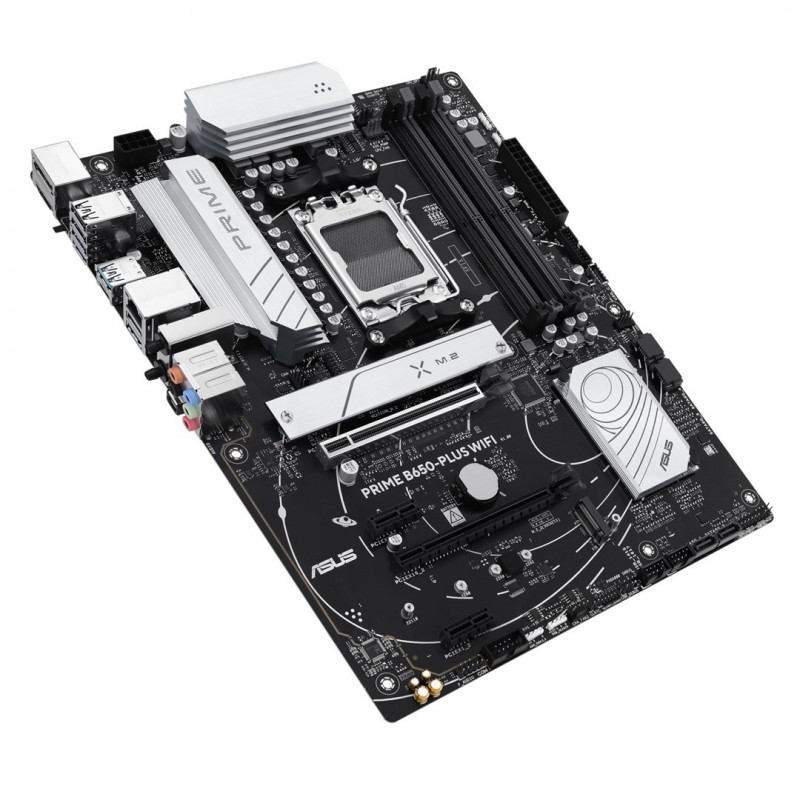

ASUS PRIME B650-PLUS WIFI AMD B650 Socket AM5 ATX

Lisainfo

Width

305 mm

Depth

244 mm

Bluetooth

Jah

Bluetoothi ​​versioon

5.3

Wi-Fi

Yes

Heli väljundkanalid

7.1 channels

Paki kaal

1.35 kg

Kaablid kaasas

SATA

USB 2.0 portide kogus

2

Pakendi laius

338 mm

Pakendi sügavus

373 mm

Pakendi kõrgus

68 mm

Toetatud Windowsi operatsioonisüsteemid

Windows 10 x64
Windows 11

Wi-Fi standardid

Wi-Fi 6E (802.11ax)

Etherneti LAN (RJ-45) pordid

1

HDMI-portide arv

1

Maksimaalne sisemälu

192 GB

DisplayPortide kogus

1

Etherneti LAN

Yes

Protsessori tootja

AMD

Parim Wi-Fi standard

Wi-Fi 6E (802.11ax)

Emaplaadi kiibistik

AMD B650

USB 3.2 Gen 1 (3.1 Gen 1) A-tüüpi portide arv

2

USB 3.2 Gen 2 (3.1 Gen 2) C-tüüpi portide arv

1

Mälu kanalid

Dual-channel

USB 3.2 Gen 2 (3.1 Gen 2) A-tüüpi portide arv

3

Protsessori pesa

Socket AM5

RGB LED pin header

Yes

Screws included

Yes

Ethernet interface type

2.5 Gigabit Ethernet

RAID support

Yes

S/PDIF väljundport

Yes

SATA III pistikute arv

4

Mälupesade tüüp

DIMM

Parallel processing technology support

Not supported

Motherboard form factor

ATX

Compatible processor series

AMD Ryzen 7000 Series
AMD Ryzen 8000 Series
AMD Ryzen 9000 Series

Supported memory types

DDR5-SDRAM

Motherboard chipset family

AMD

Number of memory slots

4

Supported memory clock speeds

4800
5000
5200
5400
5600
5800
6000
6200
6400
6600
6800
7000
7200
7400
7600 MHz
7800

Front panel connector

Yes

USB 2.0 connectors

2

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

Front panel audio connector

Yes

Supported storage drive interfaces

M.2, SATA III

Unbuffered memory

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

TPM connector

Yes

12V power connector

Yes

BIOS type

UEFI AMI

Number of chassis fan connectors

3

Number of COM connectors

1

RAID levels

0
1
10

Number of storage drives supported

6

Supported storage drive types

HDD & SSD

Number of M.2 (M) slots

2

Supported processor sockets

Socket AM5

EPS power connector (8-pin)

Yes

Number of HDDs supported

4

Supported memory clock speed (max)

7600 MHz

PCI Express x16 (Gen 4.x) slots

2

Thunderbolt headers

1

PCI Express x1 (Gen 4.x) slots

2

WiFi-AP antenna jack

1

Antenna included

Yes

ECC сompatibility

ECC & Non-ECC

Number of CPU fan connectors

2

Number of RGB LED pin headers

1

1st M.2 largest key size

22110

2nd M.2 largest key size

22110

2nd M.2 highest PCI Express generation

4.0

1st M.2 highest PCI Express generation

5.0
