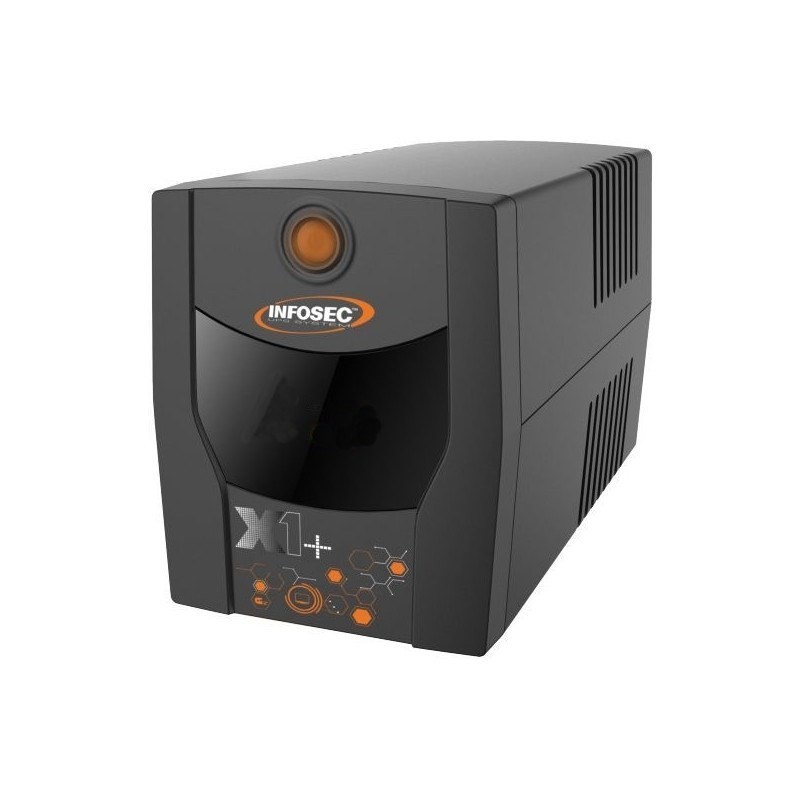

Infosec INF_661062 Backup Power Supply UPS X1+ 700, 700VA, 360W, 2× FR/Schuko

Lisainfo

Height

138 mm

Width

96 mm

Depth

286 mm

Kaal

3.9 kg

aku mahutavus

7 Ah

vormitegur

Tower

Battery voltage

12 V

Töötemperatuur (TT)

0 - 40 °C

USB-port

Yes

Käsiraamat

Yes

Kaablid kaasas

USB cable, Input power cable

USB 2.0 portide kogus

1

Väljundvõimsus

360 W

Aku laadimisaeg

8 h

Aku tehnoloogia

Lead-acid

Töö suhteline õhuniiskus (HH)

0 - 90%

Sertifitseerimine

CE

Toote värv

Black

Vastavussertifikaadid

RoHS

Power protection features

Over power
Overvoltage protection
Surge protection
Telephone/ADSL Line Protection

Sisendsagedus

50/60 Hz

Noise level

40 dB

USB port type

USB Type-B

Audible alarm(s)

Yes

Output operation voltage (min)

240 V

Input operation voltage (max)

290 V

Surge protection

Yes

Output power capacity

700 VA

Output operation voltage (max)

220 V

Input operation voltage (min)

162 V

UPS topology

Line-Interactive

Audible alarm modes

Alarm when on battery, Fault, Overload alarm, Low battery alarm

AC outlet types

Schuko
Type E (FR)

AC outlets quantity

2 AC outlet(s)

Typical backup time at half load

10 min

Cold start

Yes

Waveform

Modified sine wave

Automatic Voltage Regulation (AVR)

Yes

Output frequency

50/60 Hz

Number of output phases

1

Number of input phases

1

Output voltage regulation

-10 - 10%

Typical backup time at full load

22 min

Warnings

Do not disassemble the unit housing, there may be a risk of electric shock.
Keep away from sources of fire and water.
Use the appliance in well-ventilated areas to avoid overheating.
