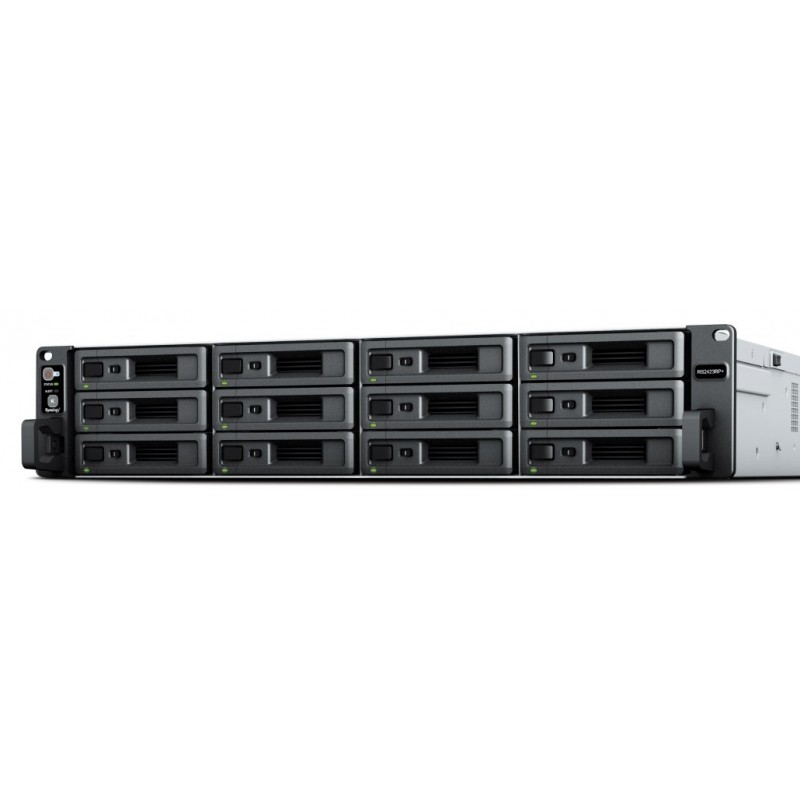

Synology RackStation RS2423+ NAS/storage server Rack (2U) Ryzen Embedded V1780B 8 GB DDR4 0 TB DiskStation Manager

Lisainfo

Height

88 mm

Width

482 mm

Depth

562 mm

Kaal

11.5 kg

Tüüp

NAS

Memory slots

2

Storage temperature (T-T)

-20 - 60 °C

Sisseehitatud kõlar(id)

No

Töötemperatuur (TT)

0 - 35 °C

USB-port

Yes

Kaablid kaasas

AC

Sisemälu

8 GB

Vahelduvvoolu sisendpinge

100 - 240 V

Energiatarve (tavaline)

119.95 W

Sisseehitatud ekraan

No

Vahelduvvoolu sisendsagedus

50 - 60 Hz

Protsessori mudel

V1780B

Protsessori perekond

Ryzen Embedded

Protsessori sagedus

3.35 GHz

Operatsioonisüsteemi versioon

7.1.1

Operatsioonisüsteem installitud

DiskStation Manager

Etherneti LAN (RJ-45) pordid

3

Sisemälu tüüp

DDR4

Protsessori tuumad

4

Protsessori võimendussagedus

3.6 GHz

Integreeritud kaardilugeja

No

Töö suhteline õhuniiskus (HH)

5 - 95%

LED indikaatorid

Yes

Etherneti LAN andmeedastuskiirused

10
100
1000 Mbit/s
10000 Mbit/s

Etherneti LAN

Yes

Sertifitseerimine

FCC
BSMI
VCCI
RCM
UKCA
EAC
CCC
KC
UL

Toote värv

Black
Grey

Toetatud failisüsteemid

BTRFS
Fat
HFS+
NTFS
exFAT
ext3
ext4

Turvaalgoritmid

AES

Protsessori tootja

AMD

Protsessori genereerimine

AMD Ryzen Embedded V1000 Series

Mälu vormitegur

UDIMM

JNE

Yes

USB 3.2 Gen 1 (3.1 Gen 1) A-tüüpi portide arv

2

Jätkusuutlikkuse järgimine

Yes

Vastavussertifikaadid

CE
RoHS

External power adapter

No

RAID support

Yes

Jahutustüüp

Active

Šassii tüüp

Rack (2U)

Noise level

52.3 dB

Maximum RAM supported

32 GB

Number of fans

3 fan(s)

Fan diameter

6 cm

Power supply location

Built-in

Supported storage drive interfaces

Serial ATA

Wake-on-LAN ready

Yes

RAID levels

0
1
5
6
10
JBOD

Number of storage drives supported

12

Supported storage drive types

HDD & SSD

Storage drive sizes supported

2.5
3.5"

Copper ethernet cabling technology

10BASE-T
10GBASE-T
100BASE-TX
1000BASE-T

Number of processors supported

1

Device class

Small & Medium Business

Power cables quantity

1

Total installed storage capacity

0 TB

Storage drives installed

No

Installed storage drive type

No

Management protocols

SNMP

Browser supported

Google Chrome Firefox Microsoft Edge Safari

Rack mount kit

Yes

Power supply unit (PSU) capacity

500 W

iSCSI support

Yes

Backup function

Yes

Snapshot

Yes

Multilingual support

Yes

Access Control List (ACL)

Yes

Hot-swap drive bays

Yes

Redundant power supply (RPS) support

No

Number of power supply units

1

Backup features

Cloud
iSCSI LUN

System log

Yes

Built-in FTP server

Yes

Link aggregation

Yes

Online RAID migration

Yes

Online RAID expansion

Yes

PCI Express x8 (Gen 3.x) slots

1

Ethernet LAN data rate supported (max)

10000 Mbit/s
