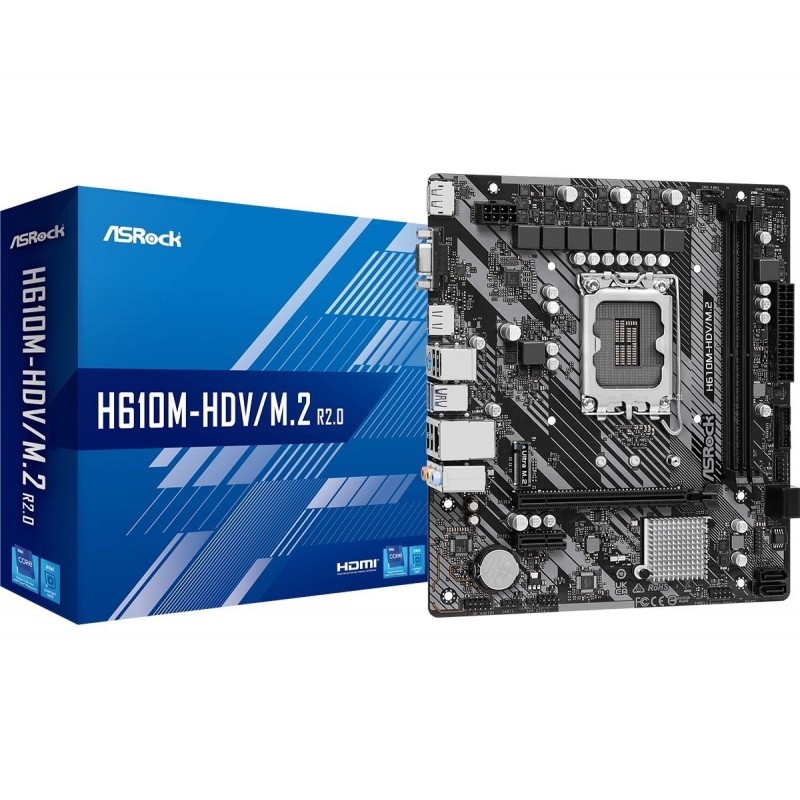

ASRock H610M-HDV/M.2 R2.0 motherboard

Lisainfo

Width

220 mm

Depth

193 mm

Wi-Fi

No

Kaablid kaasas

SATA

USB 2.0 portide kogus

4

Line-in

Yes

Kaasas draiverid

Yes

Toetatud Windowsi operatsioonisüsteemid

Windows 10 x64
Windows 11 x64

Etherneti LAN (RJ-45) pordid

1

HDMI-portide arv

1

VGA (D-Sub) portide arv

1

Maksimaalne sisemälu

64 GB

DisplayPortide kogus

1

Etherneti LAN

Yes

HDCP

Yes

Maksimaalne eraldusvõime

7680 x 4320 pixels

HDMI versioon

2.1

DisplayPort versioon

1.4

Protsessori tootja

Intel

Emaplaadi kiibistik

Intel H610

USB 3.2 Gen 1 (3.1 Gen 1) A-tüüpi portide arv

2

Mälu kanalid

Dual-channel

Heli kiip

Realtek ALC897

Protsessori pesa

LGA 1700

Ethernet interface type

Gigabit Ethernet

SATA III pistikute arv

4

Mälupesade tüüp

DIMM

Parallel processing technology support

Not supported

MIC input

1

Motherboard form factor

Micro ATX

Compatible processor series

Intel® Celeron®
Intel® Core™ i3
Intel® Core™ i5
Intel® Core™ i7
Intel® Core™ i9
Intel® Pentium®

Supported memory types

DDR4-SDRAM

Maximum number of SMP processors

1

Motherboard chipset family

Intel

Number of memory slots

2

Supported memory clock speeds

3200

USB 2.0 connectors

1

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

Front panel audio connector

Yes

Supported storage drive interfaces

M.2, SATA III

PS/2 ports quantity

1

PC health monitoring

CPU
Fan
Temperature
Voltage

Unbuffered memory

Yes

Wake-on-LAN ready

Yes

LAN controller

Realtek RTL8111H

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

Chassis intrusion connector

Yes

TPM connector

Yes

12V power connector

Yes

BIOS type

UEFI AMI

Number of chassis fan connectors

1

Supported storage drive types

HDD & SSD

PCI Express x1 (Gen 3.x) slots

1

Number of M.2 (M) slots

1

PCI Express x16 (Gen 4.x) slots

1
