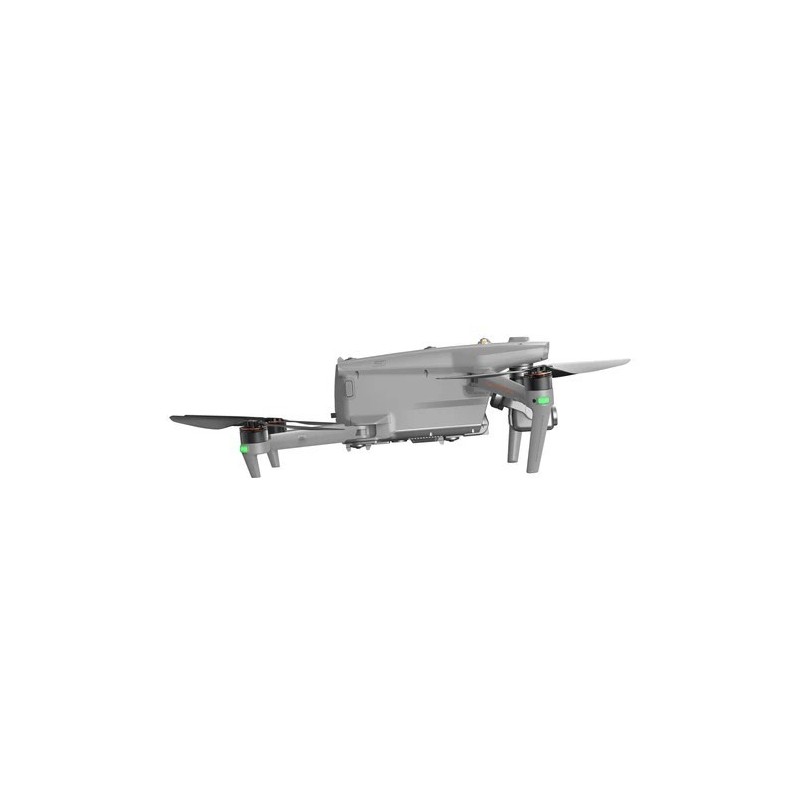

Autel EVO MAX 4T V2 Standard Bundle drone

Lisainfo

Kaal

1,665 kg

Tüüp

Drone

aku mahutavus

8070 mAh

Bluetooth

Jah

Bluetoothi ​​versioon

5.0

Eemaldatav aku

Jah

digitaalne suum

16x

kuva tüüp

TFT-LCD

Maksimaalne kiirus

23 m/s

puuteekraan

Yes

Refresh rate

60 Hz

Battery voltage

14.76 V

GPS (satelliit)

Yes

Sisseehitatud aku

Yes

Töötemperatuur (TT)

-25 - 50 °C

Käsiraamat

Yes

Kaugjuhitav

Yes

Kaablid kaasas

USB Type-C to USB Type-A

Korpuse materjal

Polycarbonate (PC), ABS

Kandekott

Yes

Sagedusriba

2.4 GHz/5.2 GHz/5.8 GHz/900 MHz

Kuva diagonaal

20.1 cm (7.9")

Sisseehitatud ekraan

Yes

Aku tehnoloogia

Lithium Polymer (LiPo)

Ühilduvad mälukaardid

MicroSD (TransFlash)

Rahvusvahelise kaitse (IP) kood

IP43

HDMI-portide arv

1

Mälukaardi maksimaalne suurus

1 TB

GLONASS

Yes

ISO tundlikkus (maksimaalne)

6400

Optiline suum

2,7 - 10x

Maksimaalne töökaugus

25000 m

Toote värv

Grey

Vahelduvvooluadapteri sagedus

50/60 Hz

Vahelduvvooluadapteri sisendpinge

100 - 240 V

Ekraani eraldusvõime

2048 x 1536 px

USB 3.2 Gen 1 (3.1 Gen 1) C-tüüpi portide arv

1

Patareide arv

2

Galileo

Yes

Maksimaalne kaadrisagedus

30 fps

Toetatud videorežiimid

4K
1080p

Termovisioon

Y

Termokaamera

Yes

Temperatuuri mõõtmise vahemik

-20°C do 150°C / 0°C do 550°C

Öise nägemisega kaamera

Y

Aperture

F2.8 - F4.8

Artificial intelligence (AI) functions

Yes

Battery charger included

Yes

Replaceable battery

No
Yes

Ventilation type

Passive

Charging via USB C

Yes

Number of axis

3

Built-in memory capacity

128 GB

Total output power

120 W

Set contents

Autel V3 controller

Megapixel (approx.)

48 MP

Power Delivery

Yes

Lihtne kasutada

Yes

Toetatud rakendused

Autel Sky

Kaamera eraldusvõime

4000 x 3000 pixels

Dedicated application

Autel Enterprise

Obstacle detection

Yes

Obstacle sensing system

Yes

Auto return function

Yes

Built-in WiFi

Yes

Sensor

CMOS 1/2"

Leash included

Y

Number of cameras

3

Fixed focal length

2.4 cm

Screwdriver

Yes

Memory card slot(s)

Yes

Operated via Android devices

Yes

Cooperation with applications

Android

USB 2.0 Type-A ports quantity

1

Antennas quantity

2

Number of propeller blades

2

Number of rotors

4 rotors

Moving control functions

Backward
Downward
Forward
Turn left
Turn right
Upward

Video streaming

Yes

Live view

Yes

Sensor system type

Multidirectional

Maximum take-off height

4500 m

Maximum wind resistance (take-off and landing)

12 m/s

Maximum flight time

42 min

Takeoff weight (max)

1999 g

Auto landing function

Yes

Flight modes

Follow Me mode

Auto takeoff function

Yes

Product dimensions when open (WxDxH)

563 x 657 x 147 mm

Transmitter weight

1,195 kg

Transmitter dimensions

269 x 302 x 87 mm

Spare propeller(s) included

1 pairs

Transmission range

8 km (CE)
15 km (FCC)

Bluetooth transmitter power

20 dBm

Transmission system

Autel SkyLink

Operating frequency (RF)

902-928 MHz, (FCC), 2.400-2.4835 GHz, 5.725-5.850 GHz

Image transmission - transmitter power (EIRP)

CE: ≤20dBm -2.4G, ≤14dBm - 5.8G
FCC: ≤33dBm
SRRC: ≤20dBm - 2.4G, ≤33dBm - 5.8G/5.7G

Effective sensor resolution (thermal module)

640 x 512 pixels

Accuracy of temperature measurement

±2°C

Battery life (transmitter)

2,5 - 4 h

Battery capacity (transmitter)

5800 mAh

Maximum angular velocity

120°/s

Laser distance measurer

Y

Maximum hybrid zoom

160x

Focal length of zoom camera (telephoto)

35 mm, equivalent: 64-234mm

Warnings

In the event of a product failure, follow local regulations for the disposal of electronic devices and batteries.
The drone may pose health and safety risks if used incorrectly. Read the user manual before use.
The product contains lithium-ion batteries, which may be flammable. Avoid damaging them.

Latency

Maximum resolution & refresh rate (HDMI)

1920x1080@60Hz

Start-up time

15 s

Rated capacity (mAh)

9248 mAh

Interference protection

Yes

BDS

Yes

Maximum Propeller Rotational Speed

7500 rpm

Propeller material

Carbon fiber
Nylon

Strobe

Yes

USB port voltage

17 V

Operating temperature (transmitter)

-20 - 40 °C

Propeller diameter

27,94 cm

Wheelbase diagonal

46,7 cm

Number of drones

1

ISO sensitivity (min)

100

Battery voltage (transmitter)

11,55 V
