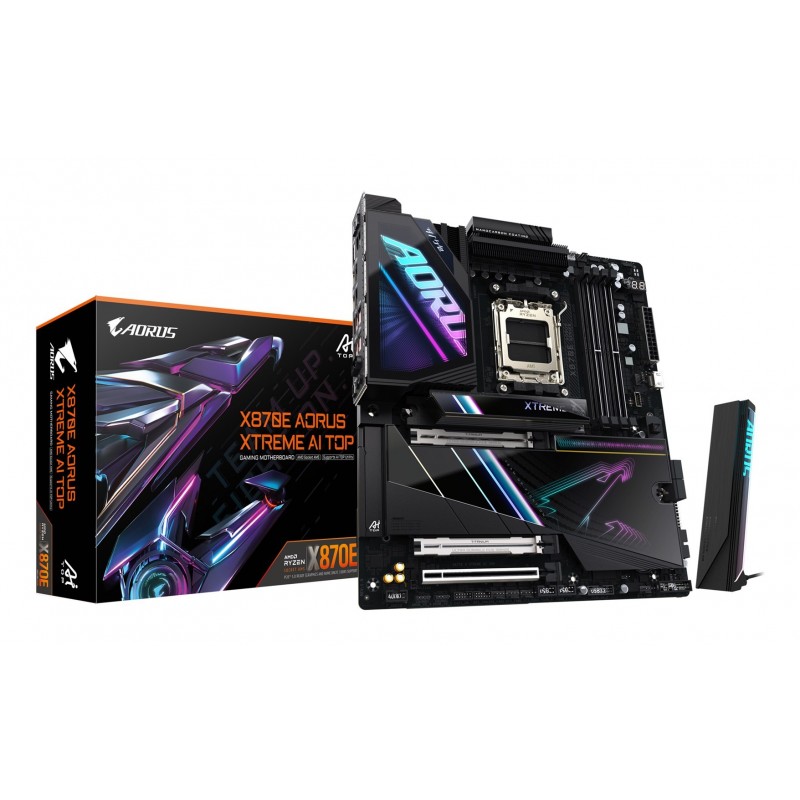

Płyta główna Gigabyte X870E A XTREME AI TOP

Lisainfo

Width

305 mm

Depth

269 mm

Bluetooth

Jah

Bluetoothi ​​versioon

5.4

Wi-Fi

Yes

Heli väljundkanalid

7.1 channels

Toiteallika tüüp

ATX

USB 2.0 portide kogus

2

Toetatud Windowsi operatsioonisüsteemid

Windows 11 x64

Wi-Fi standardid

802.11a
802.11b
802.11g
Wi-Fi 4 (802.11n)
Wi-Fi 5 (802.11ac)
Wi-Fi 6 (802.11ax)
Wi-Fi 6E (802.11ax)
Wi-Fi 7 (802.11be)

Etherneti LAN (RJ-45) pordid

2

HDMI-portide arv

1

Maksimaalne sisemälu

256 GB

Etherneti LAN

Yes

HDCP

Yes

Maksimaalne eraldusvõime

4096 x 2160 pixels

Toote värv

Black

Protsessori tootja

AMD

Parim Wi-Fi standard

Wi-Fi 7 (802.11be)

Emaplaadi kiibistik

AMD X870E

WLAN-i kontrolleri mudel

Qualcomm QCNCM865

Mälu kanalid

Dual-channel

Heli kiip

Realtek ALC1220

USB 3.2 Gen 2 (3.1 Gen 2) A-tüüpi portide arv

6

Garantiiaeg

3 year(s)

Protsessori pesa

Socket AM5

RGB LED pin header

Yes

Ethernet interface type

10 Gigabit Ethernet

RAID support

Yes

S/PDIF väljundport

Yes

SATA III pistikute arv

4

Mälupesade tüüp

DIMM

Number of audio jack connectors

2

Motherboard form factor

Extended ATX

Compatible processor series

AMD Ryzen 7000 Series
AMD Ryzen 8000 Series
AMD Ryzen 9000 Series

Supported memory types

DDR5-SDRAM

Motherboard chipset family

AMD

Number of memory slots

4

Supported memory clock speeds

4800
5200
5600
5800
6000
6200
6400
6600
6800
7000
7200
7400
7600
7800
7900
7950
8000
8200
8266
8400
8600
8800

Front panel connector

Yes

USB 2.0 connectors

2

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

Front panel audio connector

Yes

Clear CMOS jumper

Yes

Supported storage drive interfaces

M.2, SATA III

PC health monitoring

Fan
Temperature
Voltage
Water cooling

Unbuffered memory

Yes

LAN controller

Marvell AQtion AQC113C

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

TPM connector

Yes

BIOS type

UEFI AMI

RAID levels

0
1
10

Number of storage drives supported

8

Supported storage drive types

HDD & SSD

Number of M.2 (M) slots

4

Supported processor sockets

Socket AM5

EPS power connector (8-pin)

Yes

Number of HDDs supported

4

Supported memory clock speed (max)

8800 MHz

Desktop Management Interface (DMI) version

2.7

PCI Express x16 (Gen 4.x) slots

1

Clear CMOS button

Yes

USB 3.2 Gen 2x2 connectors

1

ECC сompatibility

ECC & Non-ECC

Maximum internal memory per slot

64 GB

Number of EPS power connectors (8-pin)

2

Number of RGB LED pin headers

4

3rd M.2 largest key size

22110

1st M.2 largest key size

25110

3rd M.2 highest PCI Express generation

4.0

2nd M.2 largest key size

22110

2nd M.2 highest PCI Express generation

4.0

1st M.2 highest PCI Express generation

5.0

4th M.2 largest key size

22110

4th M.2 highest PCI Express generation

4.0

USB4 ports quantity

2
