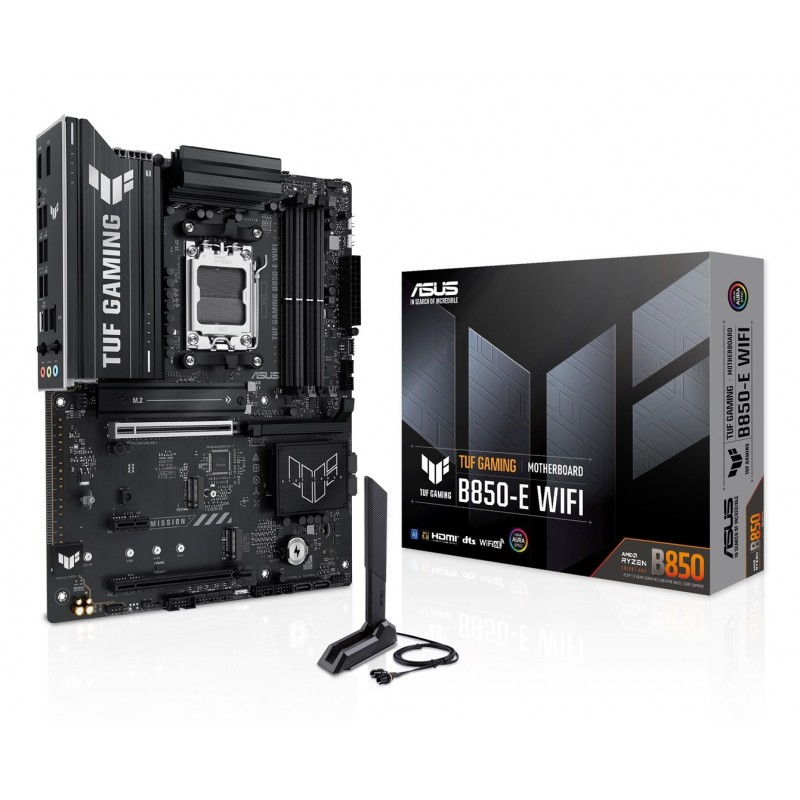

ASUS TUF GAMING B850-E WIFI AMD B850 Socket AM5 ATX

Lisainfo

Height

48 mm

Width

305 mm

Depth

244 mm

Kaal

1.21 kg

Bluetooth

Jah

Bluetoothi ​​versioon

5.3

Wi-Fi

Yes

Heli väljundkanalid

7.1 channels

Paki kaal

1.78 kg

USB 2.0 portide kogus

3

Pakendi laius

353 mm

Pakendi sügavus

273 mm

Pakendi kõrgus

68 mm

Mikrofon sees

Yes

Line-in

Yes

Toetatud Windowsi operatsioonisüsteemid

Windows 10 x64
Windows 11

Etherneti LAN (RJ-45) pordid

1

HDMI-portide arv

1

Maksimaalne sisemälu

256 GB

DisplayPortide kogus

1

Etherneti LAN

Yes

Toote värv

Multicolour

Protsessori tootja

AMD

Sisseehitatud graafikakaart

No

Parim Wi-Fi standard

Wi-Fi 6E (802.11ax)

Emaplaadi kiibistik

AMD B850

USB 3.2 Gen 1 (3.1 Gen 1) A-tüüpi portide arv

3

USB 3.2 Gen 2 (3.1 Gen 2) C-tüüpi portide arv

1

Mälu kanalid

Dual-channel

USB 3.2 Gen 2 (3.1 Gen 2) A-tüüpi portide arv

1

Protsessori pesa

Socket AM5

USB-pistiku tüüp

USB Type-A
USB Type-C

RGB LED pin header

Yes

Ethernet interface type

2.5 Gigabit Ethernet

RAID support

Yes

Jahutustüüp

Passive

SATA III pistikute arv

4

Mälupesade tüüp

DIMM

Parallel processing technology support

Not supported

Motherboard form factor

ATX

Compatible processor series

AMD Ryzen 7000 Series
AMD Ryzen 8000 Series
AMD Ryzen 9000 Series

Supported memory types

DDR5-SDRAM

Motherboard chipset family

AMD

Number of memory slots

4

Front panel connector

Yes

USB 2.0 connectors

2

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

Front panel audio connector

Yes

Supported storage drive interfaces

M.2, SATA III

Unbuffered memory

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

Chassis intrusion connector

Yes

12V power connector

Yes

BIOS type

UEFI AMI

Number of chassis fan connectors

4

Number of COM connectors

1

RAID levels

0
1
5
10

Number of storage drives supported

7

Supported storage drive types

HDD & SSD

Number of M.2 (M) slots

3

EPS power connector (8-pin)

Yes

Number of HDDs supported

4

Supported memory clock speed (max)

8000 MHz

PCI Express x16 (Gen 4.x) slots

1

PCI Express x1 (Gen 4.x) slots

1

WiFi-AP antenna jack

2

Antenna included

Yes

USB 3.2 Gen 2x2 connectors

1

ECC сompatibility

ECC & Non-ECC

Number of CPU fan connectors

1

Number of water pump connectors

1

Number of RGB LED pin headers

3

1st M.2 largest key size

22110

1st M.2 highest PCI Express generation

5.0
