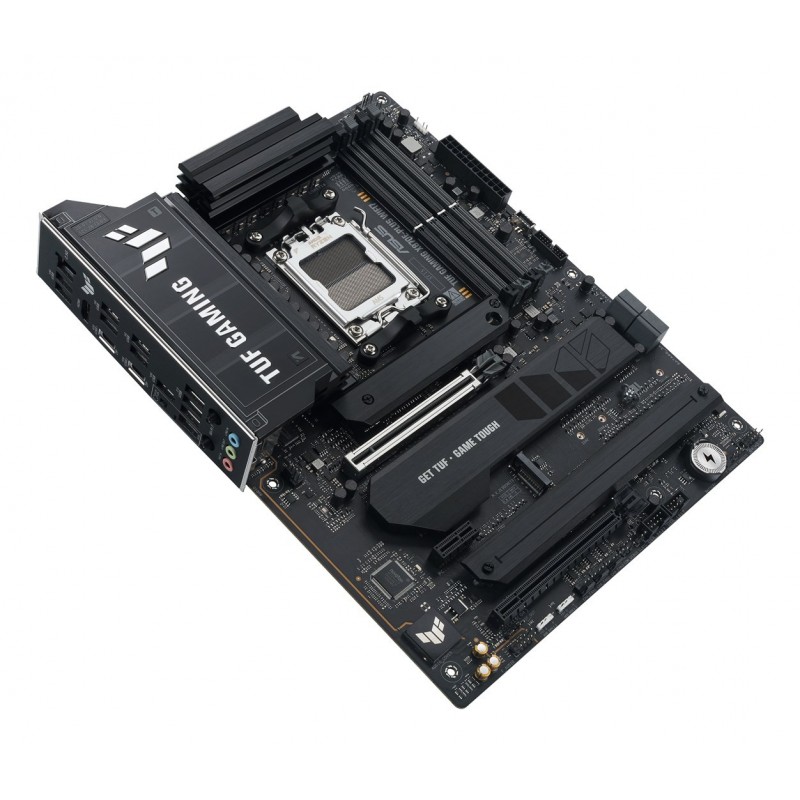

ASUS TUF GAMING X870E-PLUS WIFI7 AMD X870E Socket AM5 ATX

Lisainfo

Height

48 mm

Width

305 mm

Depth

244 mm

Kaal

1.56 kg

Bluetooth

Jah

Bluetoothi ​​versioon

5.4

Wi-Fi

Yes

Heli väljundkanalid

7.1 channels

Toiteallika tüüp

ATX

Kõrvaklappide väljundid

1

Paki kaal

2.08 kg

Kaablid kaasas

SATA

USB 2.0 portide kogus

4

Pakendi laius

353 mm

Pakendi sügavus

273 mm

Pakendi kõrgus

68 mm

Mikrofon sees

Yes

Line-in

Yes

Toetatud Windowsi operatsioonisüsteemid

Windows 11

Wi-Fi standardid

Wi-Fi 7 (802.11be)

Etherneti LAN (RJ-45) pordid

1

HDMI-portide arv

1

Maksimaalne sisemälu

256 GB

Etherneti LAN

Yes

Toote värv

Grey

Protsessori tootja

AMD

Sisseehitatud graafikakaart

No

Parim Wi-Fi standard

Wi-Fi 7 (802.11be)

Emaplaadi kiibistik

AMD X870E

USB 3.2 Gen 1 (3.1 Gen 1) A-tüüpi portide arv

4

USB4 Gen 3x2 portide kogus

2

Mälu kanalid

Dual-channel

USB 3.2 Gen 2 (3.1 Gen 2) A-tüüpi portide arv

3

Protsessori pesa

Socket AM5

RGB LED pin header

Yes

Screws included

Yes

Ethernet interface type

2.5 Gigabit Ethernet

RAID support

Yes

Jahutustüüp

Passive

SATA III pistikute arv

4

Mälupesade tüüp

DIMM

Parallel processing technology support

Not supported

Quick installation guide

Yes

Motherboard form factor

ATX

Compatible processor series

AMD Ryzen 7000 Series
AMD Ryzen 8000 Series
AMD Ryzen 9000 Series

Supported memory types

DDR5-SDRAM

Motherboard chipset family

AMD

Number of memory slots

4

Front panel connector

Yes

USB 2.0 connectors

2

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

Front panel audio connector

Yes

Supported storage drive interfaces

M.2, PCI Express 4.0, PCI Express 5.0, SATA III

Unbuffered memory

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

12V power connector

Yes

BIOS type

UEFI AMI

Number of chassis fan connectors

4

RAID levels

0
1
5
10

Number of storage drives supported

8

Supported storage drive types

HDD & SSD

PCI Express x1 (Gen 3.x) slots

1

Number of M.2 (M) slots

4

Supported processor sockets

Socket AM5

EPS power connector (8-pin)

Yes

Number of HDDs supported

4

Supported memory clock speed (max)

8000 MHz

PCI Express x16 (Gen 4.x) slots

1

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

WiFi-AP antenna jack

2

Antenna included

Yes

ECC сompatibility

ECC & Non-ECC

Number of CPU fan connectors

1

Number of water pump connectors

1

Number of EPS power connectors (8-pin)

2

Number of RGB LED pin headers

3

3rd M.2 largest key size

2280

1st M.2 largest key size

2280

3rd M.2 highest PCI Express generation

4.0

2nd M.2 largest key size

22110

2nd M.2 highest PCI Express generation

5.0

1st M.2 highest PCI Express generation

5.0

Number of temperature sensor headers

1

4th M.2 largest key size

2280

4th M.2 highest PCI Express generation

4.0
