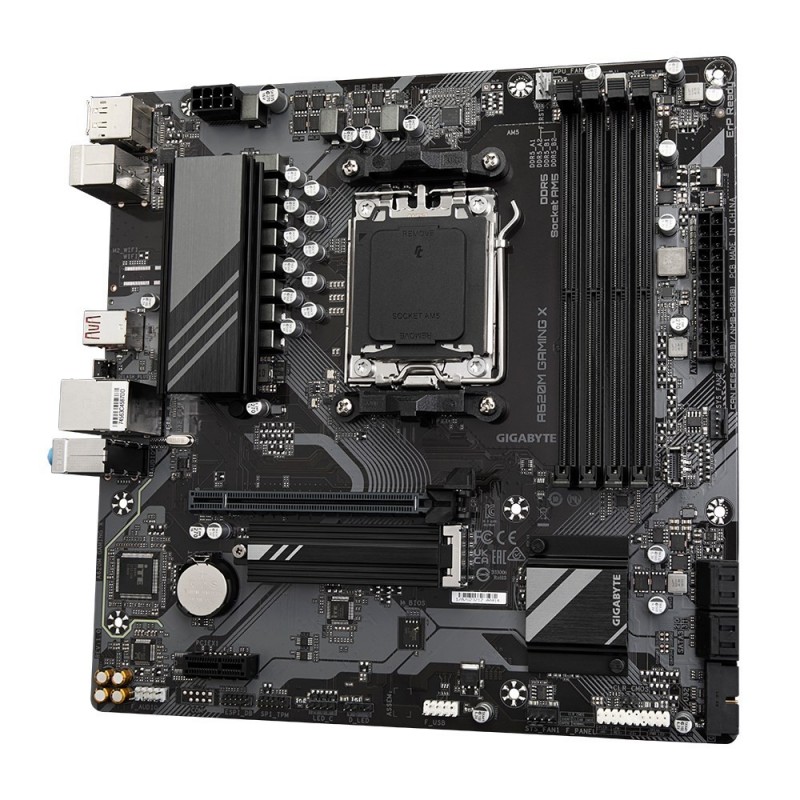

GIGABYTE A620M GAMING X Motherboard - Supports AMD Ryzen 8000 CPUs, 8+2+1 Phases Digital VRM, up to 8000MHz DDR5 (OC),

Lisainfo

Height

35 mm

Width

244 mm

Depth

244 mm

Battery weight

3 g

Aku tüüp

CR2032

Wi-Fi

No

Heli väljundkanalid

7.1 channels

Kõrvaklappide väljundid

3

Paki kaal

892 g

Kaablid kaasas

SATA

USB 2.0 portide kogus

2

Pakendi laius

270 mm

Pakendi sügavus

268 mm

Pakendi kõrgus

68 mm

Mikrofon sees

Yes

Toetatud Windowsi operatsioonisüsteemid

Windows 10 x64
Windows 11 x64

Aku tehnoloogia

Lithium-Manganese Dioxide (LiMnO2)

Etherneti LAN (RJ-45) pordid

1

HDMI-portide arv

1

Akuelementide arv

1

Maksimaalne sisemälu

192 GB

DisplayPortide kogus

1

Etherneti LAN

Yes

Päritoluriik

China

HDCP

Yes

Maksimaalne eraldusvõime

4096 x 2160 pixels

Komplekti kuuluv tarkvara

Norton Internet Security

HDMI versioon

2.1

DisplayPort versioon

1.4

Patareid kaasas

Yes

Toote värv

Bronze

Protsessori tootja

AMD

Emaplaadi kiibistik

AMD A620

USB 3.2 Gen 1 (3.1 Gen 1) C-tüüpi portide arv

1

USB 3.2 Gen 1 (3.1 Gen 1) A-tüüpi portide arv

2

Mälu kanalid

Dual-channel

USB 3.2 Gen 2 (3.1 Gen 2) A-tüüpi portide arv

1

Garantiiaeg

3 year(s)

Protsessori pesa

Socket AM5

USB-pistiku tüüp

USB Type-A
USB Type-C

RGB LED pin header

Yes

Ethernet interface type

Gigabit Ethernet

Products per shipping (inner) case

1 pc(s)

RAID support

Yes

SATA III pistikute arv

4

SATA-pistikute koguarv

4

Mälupesade tüüp

DIMM

Parallel processing technology support

Not supported

DirectX version

12.0

Motherboard form factor

Micro ATX

Compatible processor series

AMD Ryzen 7000 Series

Supported memory types

DDR5-SDRAM

Motherboard chipset family

AMD

Number of memory slots

4

Supported memory clock speeds

4400
4800
5200
5600
6000
6200
6400 MHz
6800
7000
7200
7600 MHz
7800 MHz
8000 MHz

Front panel connector

Yes

USB 2.0 connectors

1

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

Front panel audio connector

Yes

Clear CMOS jumper

Yes

Supported storage drive interfaces

M.2, SATA III

PS/2 ports quantity

1

PC health monitoring

Fan
Temperature
Voltage
Water cooling

Unbuffered memory

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

TPM connector

Yes

12V power connector

Yes

BIOS type

UEFI AMI

RAID levels

0
1
10

Number of storage drives supported

5

Supported storage drive types

HDD & SSD

Number of M.2 (M) slots

1

Supported processor sockets

Socket AM5

Maximum internal memory supported by processor

192 GB

Supported memory module capacities

1GB
2GB
4GB
8GB
12GB
16GB
32GB
48GB

EPS power connector (8-pin)

Yes

Lithium weight per battery

0.07 g

Number of HDDs supported

4

Supported memory clock speed (max)

8000 MHz

Desktop Management Interface (DMI) version

2.7

PCI Express x16 slots

1

PCI Express x1 slots

1

ECC сompatibility

Non-ECC
