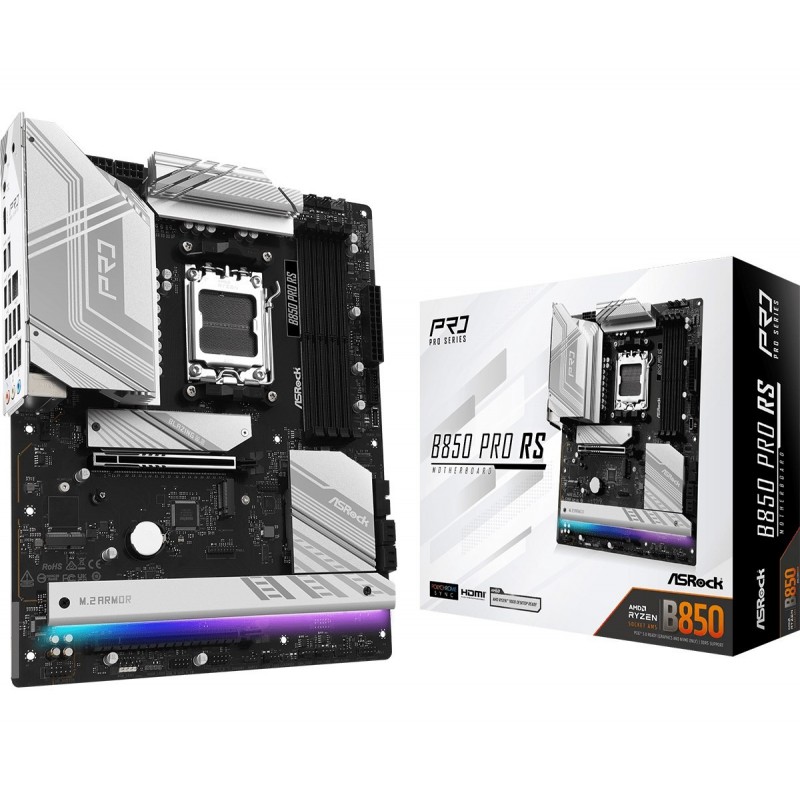

Płyta główna ASRock B850 Pro RS

Lisainfo

Width

305 mm

Depth

244 mm

Wi-Fi

No

Heli väljundkanalid

7.1 channels

Kaablid kaasas

SATA

USB 2.0 portide kogus

6

Mikrofon sees

Yes

Line-in

Yes

Toetatud Windowsi operatsioonisüsteemid

Windows 10 x64
Windows 11 x64

Etherneti LAN (RJ-45) pordid

1

HDMI-portide arv

1

Maksimaalne sisemälu

256 GB

Etherneti LAN

Yes

Protsessori tootja

AMD

Emaplaadi kiibistik

AMD B850

USB 3.2 Gen 1 (3.1 Gen 1) C-tüüpi portide arv

1

USB 3.2 Gen 1 (3.1 Gen 1) A-tüüpi portide arv

4

USB 3.2 Gen 2 (3.1 Gen 2) C-tüüpi portide arv

1

Mälu kanalid

Dual-channel

Heli kiip

Realtek ALC897

Protsessori pesa

Socket AM5

RGB LED pin header

Yes

Ethernet interface type

2.5 Gigabit Ethernet

RAID support

Yes

SATA III pistikute arv

4

Mälupesade tüüp

DIMM

Motherboard form factor

ATX

Compatible processor series

AMD Ryzen 7000 Series
AMD Ryzen 8000 Series
AMD Ryzen 9000 Series

Supported memory types

DDR5-SDRAM

Motherboard chipset family

AMD

Number of memory slots

4

USB 2.0 connectors

2

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

Front panel audio connector

Yes

Supported storage drive interfaces

M.2, SATA III

LAN controller

Dragon RTL8125BG

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

TPM connector

Yes

BIOS type

UEFI AMI

Number of chassis fan connectors

4

RAID levels

0
1
10

Number of M.2 (M) slots

1

EPS power connector (8-pin)

Yes

PCI Express x16 (Gen 4.x) slots

1

PCI Express x16 (Gen 5.x) slots

1

USB 3.2 Gen 2x2 connectors

1

ECC сompatibility

ECC

Number of CPU fan connectors

2

Number of EPS power connectors (8-pin)

2

Warnings

Do not disassemble to avoid damage to internal components and loss of warranty.
