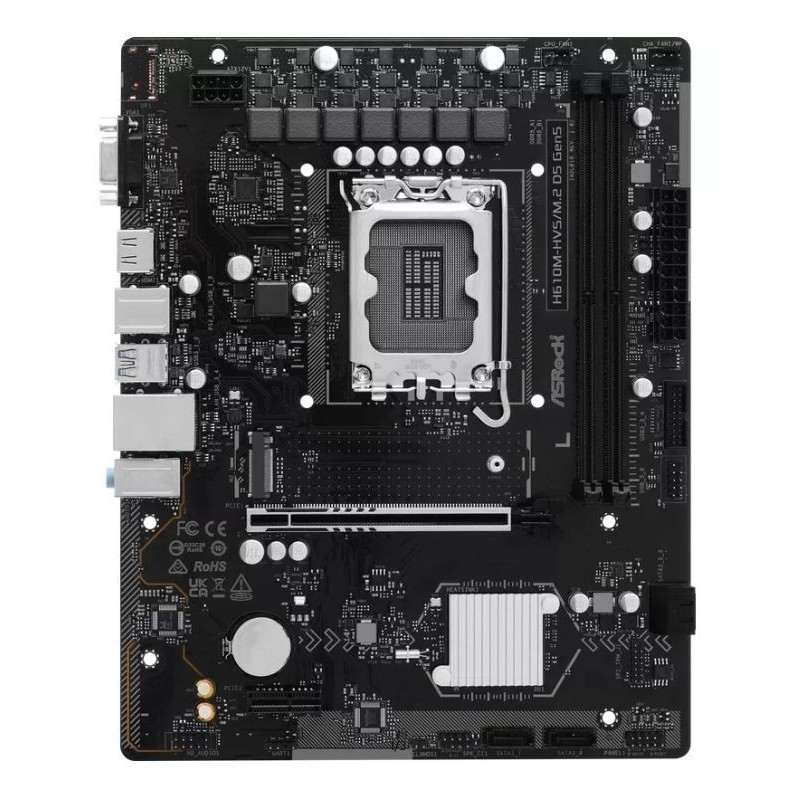

Płyta główna Asrock H610M-HVS/M.2 D5 GEN5

Характеристики

Width

244 mm

Depth

193 mm

Кабели включены

SATA

Количество портов USB 2.0

4

Поддерживаемые операционные системы Windows

Windows 10 x64
Windows 11 x64

Порты Ethernet LAN (RJ-45)

1

Количество портов HDMI

1

Количество портов VGA (D-Sub)

1

Максимальный объем внутренней памяти

128 GB

Количество DisplayPort

1

Локальная сеть Ethernet

Yes

HDCP

Yes

Версия DisplayPort

1.4

Производитель процессора

Intel

Модель встроенной видеокарты

Intel Iris Xe Graphics

Чипсет материнской платы

Intel H610

Количество портов USB 3.2 Gen 1 (3.1 Gen 1) Type-A

1

Каналы памяти

Dual-channel

Аудио чип

Realtek ALC897

Процессорный сокет

LGA 1700

Штыревой разъем RGB-светодиода

Yes

Ethernet interface type

Gigabit Ethernet

HDCP version

2.3

Number of SATA III connectors

4

Memory slots type

DIMM

Motherboard form factor

Micro ATX

Compatible processor series

Intel Core i3 12th Gen
Intel Core i3 13th Gen
Intel Core i3 14th Gen
Intel Core i5 12th Gen
Intel Core i5 13th Gen
Intel Core i5 14th Gen
Intel Core i7 12th Gen
Intel Core i7 13th Gen
Intel Core i7 14th Gen
Intel Core i9 12th Gen
Intel Core i9 13th Gen
Intel Core i9 14th Gen

Supported memory types

DDR5-SDRAM

Motherboard chipset family

Intel

Number of memory slots

2

Supported memory clock speeds

4800
5600

USB 2.0 connectors

1

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

Supported storage drive interfaces

M.2, SATA III

PS/2 ports quantity

1

Unbuffered memory

Yes

LAN controller

Realtek 8111H

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

Chassis intrusion connector

Yes

TPM connector

Yes

12V power connector

Yes

BIOS type

UEFI AMI

Number of chassis fan connectors

1

Supported storage drive types

HDD & SSD

PCI Express x1 (Gen 3.x) slots

1

PCI Express x16 (Gen 5.x) slots

1
