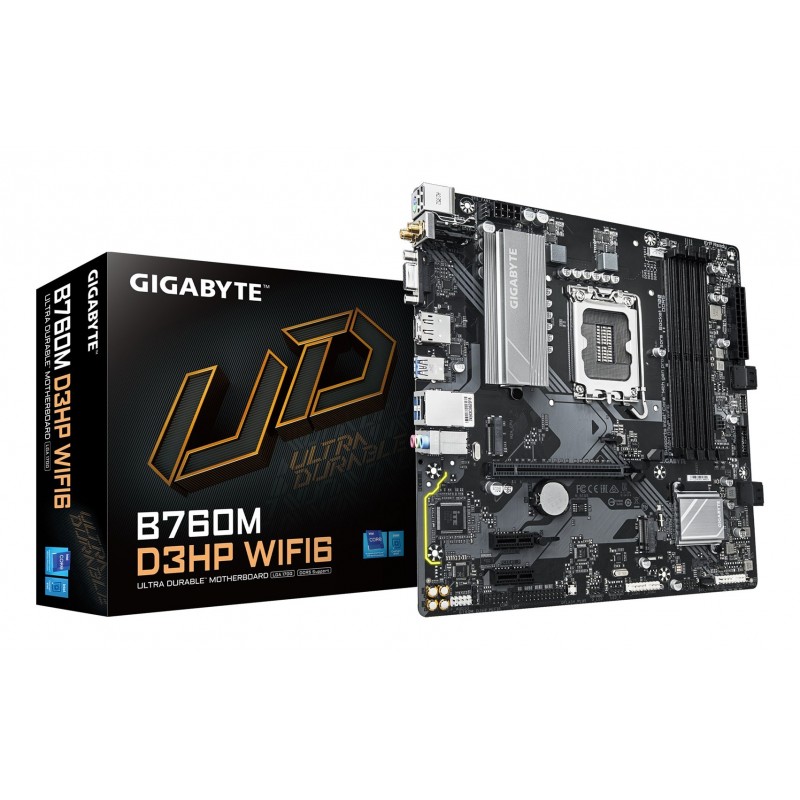

Płyta główna Gigabyte B760M D3HP WIFI6

Характеристики

Height

35 mm

Width

244 mm

Depth

244 mm

Вес

1.11 kg

Bluetooth

Yes

Bluetooth version

5.3

Battery weight

3 g

Тип батареи

CR2032

Wi-Fi

Yes

Каналы аудиовыхода

7.1 channels

Тип источника питания

ATX

Выходы для наушников

1

Вес упаковки

1.2 kg

Количество портов USB 2.0

2

Ширина упаковки

265 mm

Глубина упаковки

265 mm

Высота упаковки

54 mm

Вход микрофона

Yes

Линейный вход

Yes

Поддерживаемые операционные системы Windows

Windows 10 x64
Windows 11 x64

Технология аккумуляторов

Lithium-Manganese Dioxide (LiMnO2)

Стандарты Wi-Fi

802.11 b/g/n
802.11a
802.11ac
Wi-Fi 6 (802.11ax)

Порты Ethernet LAN (RJ-45)

1

Количество портов HDMI

1

Количество ячеек аккумуляторной батареи

1

Количество портов VGA (D-Sub)

1

Максимальный объем внутренней памяти

192 GB

Количество DisplayPort

1

Локальная сеть Ethernet

Yes

HDCP

Yes

Максимальное разрешение

4096 x 2304 pixels

Встроенное программное обеспечение

Norton® Internet Security (OEM version)
LAN bandwidth management software

HDMI-версия

2.1

Версия DisplayPort

1.2

Батарейки включены

Yes

Цвет продукта

Black
Grey

Производитель процессора

Intel

Лучший стандарт Wi-Fi

Wi-Fi 6 (802.11ax)

Чипсет материнской платы

Intel B760 Express

Модель контроллера WLAN

Realtek RTL8851BE

Количество портов USB 3.2 Gen 1 (3.1 Gen 1) Type-A

3

Каналы памяти

Dual-channel

Аудио чип

Realtek ALC897

Гарантийный срок

3 year(s)

Процессорный сокет

LGA 1700

Штыревой разъем RGB-светодиода

Yes

Винты включены

Yes

Ethernet interface type

Gigabit Ethernet

Products per shipping (inner) case

1 pc(s)

RAID support

Yes

Cooling type

Passive

Number of SATA III connectors

4

Memory slots type

DIMM

Parallel processing technology support

Not supported

DirectX version

12.0

Motherboard form factor

Micro ATX

Compatible processor series

Intel Core i3 12th Gen
Intel Core i3 13th Gen
Intel Core i3 14th Gen
Intel Core i5 12th Gen
Intel Core i5 13th Gen
Intel Core i5 14th Gen
Intel Core i7 12th Gen
Intel Core i7 13th Gen
Intel Core i7 14th Gen
Intel Core i9 12th Gen
Intel Core i9 13th Gen
Intel Core i9 14th Gen
Intel® Celeron®
Intel® Pentium® Gold

Supported memory types

DDR5-SDRAM

Motherboard chipset family

Intel

Number of memory slots

4

Supported memory clock speeds

4400 MHz
4800
5200
5600

Front panel connector

Yes

USB 2.0 connectors

2

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

Front panel audio connector

Yes

Clear CMOS jumper

Yes

Supported storage drive interfaces

M.2, PCI Express 4.0, SATA III

PS/2 ports quantity

1

PC health monitoring

Fan
Temperature
Voltage
Water cooling

Unbuffered memory

Yes

LAN controller

Realtek RTL8111H

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

TPM connector

Yes

12V power connector

Yes

BIOS type

UEFI AMI

Number of chassis fan connectors

3

RAID levels

0
1
5
10

Number of storage drives supported

3

Supported storage drive types

HDD & SSD

PCI Express x1 (Gen 3.x) slots

2

Number of M.2 (M) slots

2

Supported processor sockets

LGA 1700

EPS power connector (8-pin)

Yes

Lithium weight per battery

0.07 g

S/PDIF out connector

Yes

Number of HDDs supported

4

Supported memory clock speed (max)

5600 MHz

Serial port headers

1

Desktop Management Interface (DMI) version

2.7

PCI Express x16 (Gen 4.x) slots

1

Parallel connector

Yes

WiFi-AP antenna jack

2

Antenna included

Yes

ECC сompatibility

ECC & Non-ECC

Maximum internal memory per slot

48 GB

Number of CPU fan connectors

1

Number of EPS power connectors (8-pin)

1

Number of RGB LED pin headers

2

1st M.2 largest key size

2280

2nd M.2 largest key size

2280

2nd M.2 highest PCI Express generation

4.0

1st M.2 highest PCI Express generation

4.0
