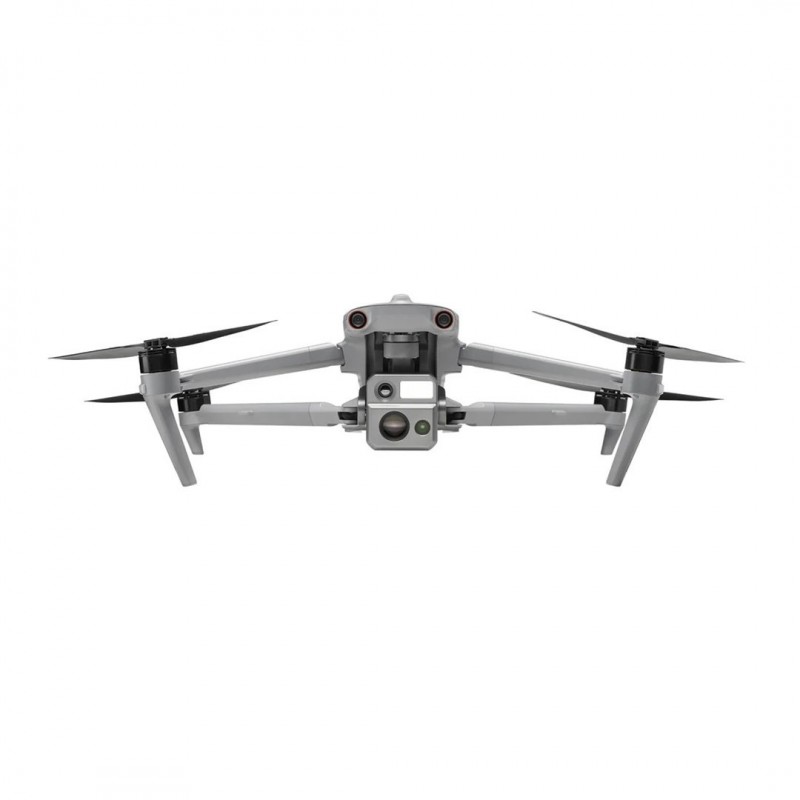

EVO MAX 4N V2 Standard Bundle

Характеристики

Вес

1.7 kg

Тип

Drone

Battery capacity

8070 mAh

Bluetooth

Yes

Bluetooth version

5.0

Removeable battery

Yes

Digital Zoom

8x

Display Type

TFT-LCD

Prędkość maksymalna

23 m/s

Touchscreen

Yes

Refresh rate

60 Hz

Battery voltage

14.76 V

GPS (спутник)

Yes

Встроенный аккумулятор

Yes

Рабочая температура (ТТ)

-25 - 50 °C

Руководство

Yes

Дистанционно управляемый

Yes

Кабели включены

USB Type-C to USB Type-A

Материал корпуса

Polycarbonate (PC), ABS

Чехол для переноски

Yes

Диапазон частот

2.4 GHz/5.2 GHz/5.8 GHz/900 MHz

Диагональ дисплея

20.1 cm (7.9")

Встроенный дисплей

Yes

Технология аккумуляторов

Lithium Polymer (LiPo)

Совместимые карты памяти

MicroSD (TransFlash)

Код международной защиты (IP)

IP43

Количество портов HDMI

1

Максимальный размер карты памяти

1 TB

ГЛОНАСС

Yes

Чувствительность ISO (макс.)

32000

Максимальное рабочее расстояние

25000 m

Цвет продукта

Grey

Частота адаптера переменного тока

50/60 Hz

Входное напряжение адаптера переменного тока

100 - 240 V

Разрешение экрана

2048 x 1536 px

Количество портов USB 3.2 Gen 1 (3.1 Gen 1) Type-C

1

Количество батарей

2

Галилео

Yes

Максимальная частота кадров

30 fps

Поддерживаемые видеорежимы

4K
1080p

Тепловидение

Y

Тепловизионная камера

Yes

Диапазон измерения температуры

-20°C do 150°C / 0°C do 550°C

Камера с ночным видением

Y

Диафрагма

F1.89 / F1.4

Функции искусственного интеллекта (ИИ)

Yes

Зарядное устройство входит в комплект

Yes

Сменная батарея

No
Yes

Тип вентиляции

Passive

Charging via USB C

Yes

Number of axis

3

Built-in memory capacity

128 GB

Total output power

120 W

Set contents

Autel V3 controller

Megapixel (approx.)

50 MP (wide-angle) / 2.3 MP (night)

Power Delivery

Yes

Easy to use

Yes

Applications supported

Autel Sky

Dedicated application

Autel Enterprise

Obstacle detection

Yes

Obstacle sensing system

Yes

Auto return function

Yes

Built-in WiFi

Yes

Sensor

1/0.98‘ CMOS (wide-angle)/1.69’ CMOS (Starlight)

Leash included

Y

Number of cameras

3

Screwdriver

Yes

Memory card slot(s)

Yes

Operated via Android devices

Yes

Cooperation with applications

Android

USB 2.0 Type-A ports quantity

1

Antennas quantity

2

Number of propeller blades

2

Number of rotors

4 rotors

Moving control functions

Backward
Downward
Forward
Turn left
Turn right
Upward

Video streaming

Yes

Live view

Yes

Sensor system type

Multidirectional

Maximum take-off height

4500 m

Maximum wind resistance (take-off and landing)

12 m/s

Maximum flight time

42 min

Takeoff weight (max)

1999 g

Auto landing function

Yes

Flight modes

Follow Me mode

Auto takeoff function

Yes

Product dimensions when open (WxDxH)

563 x 657 x 147 mm

Transmitter weight

1,195 kg

Transmitter dimensions

269 x 302 x 87 mm

Spare propeller(s) included

1 pairs

Transmission range

8 km (CE)
15 km (FCC)

Bluetooth transmitter power

20 dBm

Transmission system

Autel SkyLink 3.0

Operating frequency (RF)

902-928 MHz, (FCC), 2.400-2.4835 GHz, 5.725-5.850 GHz

Image transmission - transmitter power (EIRP)

CE: ≤20dBm -2.4G, ≤14dBm - 5.8G
FCC: ≤33dBm
SRRC: ≤20dBm - 2.4G, ≤33dBm - 5.8G/5.7G

Effective sensor resolution (thermal module)

640 x 512 pixels

Accuracy of temperature measurement

±2°C

Battery life (transmitter)

2,5 - 4 h

Battery capacity (transmitter)

5800 mAh

Maximum angular velocity

120°/s

Laser distance measurer

Y

Maximum still image resolution of camera with night vision (Night Vision)

1920 x 1200 px

Maximum video resolution of camera with night vision (Night Vision)

1920 x 1200 px

Maximum video resolution of zoom camera (telephoto)

4000 x 3000 px

Focal length of zoom camera (telephoto)

23,52 mm

Maximum photo resolution of zoom camera (telephoto)

8192 x 6144 px

Warnings

In the event of a product failure, follow local regulations for the disposal of electronic devices and batteries.
The drone may pose health and safety risks if used incorrectly. Read the user manual before use.
The product contains lithium-ion batteries, which may be flammable. Avoid damaging them.

Latency

Maximum resolution & refresh rate (HDMI)

1920x1080@60Hz

Start-up time

15 s

Rated capacity (mAh)

9248 mAh

Interference protection

Yes

BDS

Yes

Maximum Propeller Rotational Speed

7500 rpm

Propeller material

Carbon fiber
Nylon

Strobe

Yes

USB port voltage

17 V

Operating temperature (transmitter)

-20 - 40 °C

Propeller diameter

27,94 cm

Wheelbase diagonal

46,7 cm

Number of drones

1

ISO sensitivity (min)

100

Battery voltage (transmitter)

11,55 V

Laser measuring range

5 - 1200 m

Autonomous Flight Planning

Yes

Wide-angle camera

Yes
